Sony SNC-HM662 Specifications

  • Image Sensor

    1/2.5-type progressive scan CMOS sensor

  • Number of Total Pixels

    Approx. 5 Megapixels

  • Minimum Illumination

    50 IRE:
    Color: 0.7 lx (F2.0, AGC ON, 1/30 s, 10 fps)
    B/W: 0.3 lx (F2.0, AGC ON, 1/30 s, 10 fps)

    30 IRE:
    Color: 0.4 lx (F2.0, AGC ON, 1/30 s, 10 fps)
    B/W: 0.1 lx (F2.0, AGC ON, 1/30 s, 10 fps)

  • Dynamic Range

    More than 60dB

  • Gain

    Auto

  • Shutter Speed

    1/5 s to 1/32000 s

  • Exposure Control

    Exposure compensation, AGC, Shutter speed

  • White Balance

    ATW, Manual

  • Lens

    Fixed lens

  • Zoom Ratio

    Digital 12x

  • Horizontal Viewing Angle

    182 deg.

  • Vertical Viewing Angle

    182 deg.

  • Focal Length

    f = 0.98 to 1.12mm

  • F-Number

    F2.0

  • Minimum Object Distance

    500mm

  • Number of Preset Positions

    20

  • Number of Tour Programs

    20

  • Day/Night

    Yes

  • View Modes

    Yes (360 deg. Hemispheric/ 180 deg. Panoramic)

  • Number of View Modes

    11

  • Auto-rotation Mode

    Yes

  • e-Flip

    Yes

  • Wide-D

    Yes

  • Tone Correction

    Yes

  • Privacy Masking (Number)

    5

  • Privacy Masking (Shape)

    Quadrangle formed by any four corner points

  • Privacy Masking (Color/Effect)

    Black

  • Edge Storage

    Yes

  • Vandal Resistant

    IK10

  • Ingress Protection

    IP66

  • Menu Language

    English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai

  • Video: Resolution

    2560 x 1920, 2048 x 1536, 1600 x 1200, 800 x 600, 640 x 480 (Hemispheric mode: H.264, JPEG)
    1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360 (1080p mode: H.264, JPEG)

  • Video: Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Video: Maximum Frame Rate

    H.264: 10 fps (2560 x 1920)
    JPEG: 13 fps (2560 x 1920)

  • Video: Bitrate Compression Mode

    CBR/VBR (selectable)

  • Video: Range of Bitrate Setting

    20 Kbps to 16 Mbps

  • Video: Image Cropping

    1920 x 1080

  • Video: Solid PTZ

    Yes

  • Video: Bandwidth Control

    Yes

  • Video: Multi Streaming Capability

    Triple streaming

  • Video: Number of Clients

    10

  • Video Analytics: Motion Detection

    Yes

  • Video Analytics: Tamper Alarm

    Yes

  • Audio Compression Format

    G.711/AAC (64kHz to 128kHz)

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition
    Windows 8 Pro (32/64 bit)

  • Processor

    Intel Core7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 8.0, Ver. 9.0, Ver 10.0 (32 bit)

  • Network Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL

  • Network QoS

    DSCP

  • Network Multicast Streaming Support

    Yes

  • Network ONVIF Conformance

    Profile S

  • Network Authentication

    IEEE 802.1X

  • Interface: Microphone Input

    Built-in Microphone/External MIC-IN

  • Interface: Line Output

    Yes

  • Interface: Network Port

    10BASE-T/100BASE-TX (RJ-45)

  • Interface: Alarm Input (Sensor Input)

    Yes

  • Interface: Alarm Output

    Yes

  • Interface: Card Slots

    microSD

  • Interface: Confirmed SD Card Type

    microSDHC (no support for microSDXC)

  • Power Requirements

    IEEE 802.3af compliant (PoE system)

  • Power Consumption

    6.0W max.

  • Operating Humidity

    20% to 90%

  • Storage Humidity

    20% to 95%

  • External Material

    Aluminum and polycarbonate

  • Fire Retardant

    UL94HB

  • Safety Regulations

    UL2044, IEC60950-1, IEC60950-22, FCC Class B, IC Class B, EN 55022 Class B,
    EN55024 Class B, EN50130-4, EN61000-4-2, EN61000-4-3, EN61000-4-4,
    EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11,
    Clause 7 of EN50130-4, AS/NZS EN55022 Class B, VCCI ClassB,
    Korea EMC (K00022 + K00024), Russia EAC, EN50155, EN50121-3-2, IEC61373

  • Operating Temperature

    -22 to +122 deg. F / -30 to +50 deg. C (tentative)

  • Cold Start Temperature

    -4 to +122 deg. F / -20 to +50 deg. C

  • Storage Temperature

    -13 to +140 deg. F / -25 to +60 deg. C

  • Dimensions (W x H x D)

    Approx. Dia. 5.75 x 2.25" / Dia. 146.05 x 57.15mm without a mounting plate

  • Weight

    Approx. 1.43lbs / 0.65kg without a mounting plate

4 Accessories for Sony SNC-HM662 5MP Outdoor Day/Night Vandal Resistant Minidome Network Camera, 13 fps, JPEG/H.264, PoE

  • All Accessories (4)
  • Extended Warranty (4)
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 2 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 2 Year Plan
$65.00
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 2 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 2 Year Plan
$89.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 3 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 3 Year Plan
$81.99
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 3 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 3 Year Plan
$109.99
Recommended

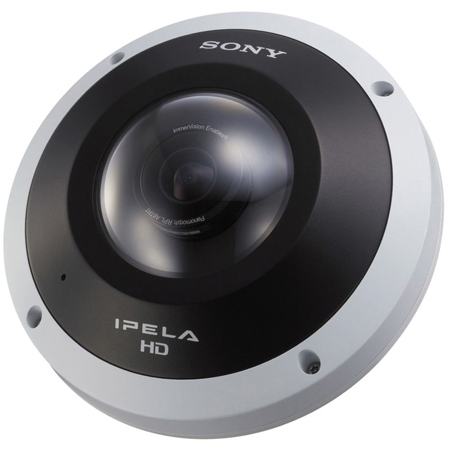

About Sony SNC-HM662

360deg., 5 Megapixel minidome IP camera, micro SD card slot (up to 32GB), ImmerVision Panamorph lens, client side de-warping, PoE, IP66, IK10, built-in-mic, audio in/out, alarm I/O.

Sony SNC-HM662 Features

  • Maximum resolution of 2560 x 1920 pixels with a 5-megapixel CMOS sensor
  • Hemispheric imaging technology with a panomorph lens from ImmerVision; this captures 360 degrees of real-time video, outperforming any conventional fisheye lenses with superb image quality and greater coverage
  • Advanced dewarping technology for immersive monitoring to efficiently correct for the distortion of a hemispheric image and newly produce rectangular images with video management software (VMS)
  • Advanced dewarping technology maintains higher video quality than produced at the camera level and it is achieved without incurring the image degradation typically caused by camera processing limitations during the dewarping process
  • Solid PTZ to navigate the camera's visible area in every hemispheric image by its digital pan, tilt and zoom functionalities for easy and rapid-response manipulation
  • A variety of multiple view modes capable of 360-degree immersive navigation, including the camera's original 360-degree hemispheric view, a 180-degree panoramic view and multiple simultaneous views all produced from the same hemispheric image
  • Edge Storage function to record video and audio data with a microSD/SDHC card attached to the camera
  • IK10-rated vandal-resistant feature to protect the camera from destructive behaviors
  • IP66-rated water-resistant and dust-tight feature for outdoor surveillance and for indoor locations where water ingress may pose an issue
  • Day/Night function to switch to Day or Night mode depending on the light level
  • VBR (variable bitrate) or CBR (constant bitrate) compression mode selectable to correspond with various network conditions and G711/AAC (64 kHz to 128 kHz) audio codecs for high-quality recording
  • Fully compatible dewarping with all major VMS platforms and other solutions that are certified ImmerVision Enables
  • ONVIF (Open Network Video Interface Forum) Profile S conformance firmware that ensures greater interoperability and more flexibility in building multiple-vendor systems
  • Built-in microphone
  • Easy initial network settings by supplied SNC Easy IP Setup Guide application

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Built-in microphone

What's in the box:

  • Sony SNC-HM662 5MP Outdoor Day/Night Vandal Resistant Minidome Network Camera
  • Mounting Plate
  • I/O Cable
  • Alignment Sticker for Camera Base
  • Alignment Sticker for Mounting Plate
  • Screw Driver
  • Desiccant Bag
  • Double-Sided Tape
  • Rubber Seal Plug
  • Rubber Washer
  • Screw (For Mounting Plate)
  • Installation Manual
  • Safety Regulations for Network Camera
  • CD-ROM (Supplied Program)
  • Sony 3 Year Parts and Labor Limited Warranty
