Sony SNC-VB600 Specifications

  • Image Sensor

    1/3-type progressive scan Exmor CMOS

  • Image Sensor(Number of Effective Pixels)

    Approx. 1.37 Megapixels

  • Signal System

    NTSC color system

  • Minimum Illumination

    50 IRE:
    Color: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.04 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

    30 IRE:
    Color: 0.03 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.02 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

  • Dynamic Range

    Equivalent to 130dB with View-DR technology

  • S/N Ratio

    More than 50dB (Gain 0dB)

  • Gain

    Auto

  • Shutter Speed

    1/1 s to 1/10000 s

  • Sync System

    Internal synchronization

  • Exposure Control

    Exposure compensation, AGC, Shutter speed, Iris

  • White Balance

    ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual

  • Lens

    CS mount vari-focal lens

  • Zoom Ratio

    Optical zoom 2.9x, Digital zoom 2x

  • Powered Focus

    Yes (Easy Focus)

  • Horizontal Viewing Angle

    100.0 to 35.7 deg.

  • Vertical Viewing Angle

    78.1 to 28.6 deg.

  • Focal Length

    f = 2.8 to 8.0mm

  • F-Number

    F1.2 (Wide) to F1.95 (Tele)

  • Minimum Object Distance

    300mm

  • Horizontal Resolution

    600 TV lines (analog video)

  • Preset Position

    8

  • Tour

    5

  • Day/Night

    Yes

  • Wide-D

    Yes (View-DR)

  • Image Enhancement

    Visibility Enhancer (VE)

  • Noise Reduction

    XDNR technologies

  • Image Stabilizer

    Yes

  • Image: Codec Image Size (H x V)

    1280 x 1024, 1280 x 960, 1024 x 768, 1280 x 720, 800 x 600, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 352 x 288, 320 x 240 (H.264, JPEG)

  • Image: Video Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Image: Codec Streaming Capability

    Triple Streaming, CBR/VBR (selectable)

  • Image: Maximum Frame Rate

    H.264: 60 fps (1280 x 1024)
    JPEG: 60 fps (1280 x 1024)

  • Audio Compression Format

    G.711/G.726/AAC (16kHz, 48kHz)

  • Scene Analytics: Motion detection

    Yes

  • Scene Analytics: Face Detection

    Yes

  • Scene Analytics: Rule-based Filter

    DEPA Advanced

  • Network Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2), IPv6, HTTPS, SNMP

  • Network ONVIF Conformance

    Yes (Profile S)

  • Network Number of Clients

    20

  • Network Authentication

    IEEE 802.1X

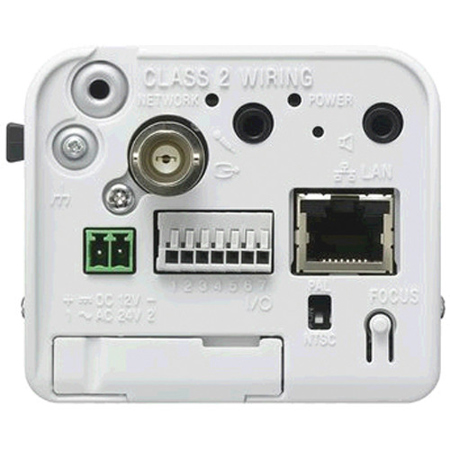

  • Interface: Analog Video Output

    BNC, 1.0 Vp-p, 75Ohms, unbalance, sync negative

  • Interface: Line Input

    Mini jack (monaural)

  • Interface: Line Output

    Mini jack (monaural), Maximum output level: 1 Vrms

  • Interface: Network Port

    10BASE-T/100BASE-TX (RJ-45)

  • Interface: Sensor Input

    x2, make contact, break contact

  • Interface: Alarm Output

    x2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)

  • Interface: Microphone Input

    Mini jack (monaural)

  • Interface: Card Slots

    SD Card x1

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition

  • Processor

    Intel Core i7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0
    Firefox Ver. 3.5 (Plug-in free viewer only)
    Safari Ver. 4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)

  • Power Requirements

    PoE system (IEEE 802.3af compliant), DC 12 V +/- 10%, AC 24 V +/- 20%

  • Power Consumption

    6.0W max.

  • Operating Humidity

    20% to 80%

  • Storage Humidity

    20% to 95%

  • Safety Regulations

    JATE Technical standard (LAN)
    UL2044, IEC60950-1 (CB)
    VCCI (Class A), FCC (Class A), IC (Class A)
    Emission: EN55022 (Class A) + EN50130-4
    Immunity: EN55022 (Class A) + EN55024
    Emission: AS/NZS CISPR22 (Class A

  • Operating Temperature

    14 to 122 deg. F / -10 to +50 deg. C

  • Starting Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage Temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions (W x H x D)

    Without lens: 2.87 x 2.5 x 5.75" / 72.9 x 63.5 x 146.05mm
    With lens: 2.87 x 2.5 x 7.87" / 72.9 x 63.5 x 199.9mm

  • Weight

    Approx. 1.25lbs / 0.57kg (with lens)

About Sony SNC-VB600

SNC-VB series is the latest addition to Sony's complete lineup of HD network cameras. This tripe-stream capable network HD cameras, supporting H.264 and JPEG compression formats, delivers excellent picture quality in 720p HD resolution at up to 60 fps. The SNC-VB600 incorporates Sony's state of the art Exmor CMOS image sensor.

It is specially designed for security applications and includes the latest image enhancement technologies such as View-DR. View-DR incorporates the latest in Wide-D technology along with Visibility Enhancer and XDNR, allowing these cameras to provide excellent HD images, even under the most challenging backlit conditions. The SNC-VB600 is the ideal choice for even the most demanding surveillance monitoring applications.

Sony SNC-VB600 Features

  • Maximum resolution of 1280 x 1024 pixels with the Exmor CMOS sensor
  • Extremely Wide Dynamic Range to 130dB achieved with View-DR technology
  • New video analytics functions including face detection and object removal/left behind
  • H.264 (High/Main/Baseline Profile) /JPEG video codecs and AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs
  • Minimum illumination of 0.05 lx in Color and 0.04 lx in B/W (50 IRE at 1/30 sec)
  • IPELA ENGINE EX signal processing system developed based on Sony's unique signal processing and video analytics technologies to provide unique features such as a high frame rate, View-DR, XDNR and DEPA Advanced technologies
  • High frame rate of 60 fps to provide smoother and less blurry moving pictures
  • View-DR - Sony's innovative wide dynamic range technology - to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
  • Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • SD memory card slot for an on-board recording capability
  • True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
  • XDNR (excellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
  • Built-in HTML viewer compatible with most Smartphones
  • Easy Focus - allows installer/user to focus the camera remotely using a PC or locally
  • Powered by either PoE (IEEE 802.3af-compliant), AC 24 V +/-20% or DC 12 V +/-10% for easy installation
  • ONVIF (Open Network Video Interface Forum) Profile S conformance software that ensures greater interoperability and more flexibility in building multiple- vendor systems
  • VBR (variable bitrate) or CBR (constant bitrate) encoding format selectable to correspond with various network conditions
  • Easy initial network settings with supplied SNC Easy IP Setup Guide application
  • Image Stabilizer to help minimize the effect of camera shake or vibration for less blurry images

Key Features

  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • Extremely Wide Dynamic Range to 130dB achieved with View-DR technology
  • High frame rate of 60 fps to provide smoother and less blurry moving pictures
  • Maximum resolution of 1280 x 1024 pixels with the Exmor CMOS sensor
  • Minimum illumination of 0.05 lx in Color and 0.04 lx in B/W (50 IRE at 1/30 sec)
  • New video analytics functions including face detection and object removal/left behind

What's in the box:

  • Sony SNC-VB600 1.37MP True Day/Night Minidome Fixed Network Box Camera with IPELA ENGINE Technology
  • CD-ROM (Supplied Programs)
  • Installation Manual
  • Wire Rope
  • Screw M4
  • DC 12/AC 24V Connector
  • Safety Regulations
  • Sony 3 Year Limited Warranty
