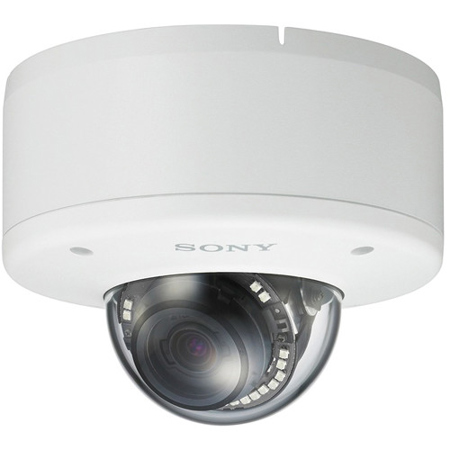

Sony SNC-VM630 2.14MP 1080p Indoor True Day/Night Minidome Network Camera with IPELA ENGINE Technology, 3x Optical Zoom, 60 fps, JPEG/H.264, PoE

SKU: SOSNCVM630

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony SNC-VM630 Specifications

  • Image Sensor

    1/2.9-type progressive scan Exmor CMOS sensor

  • Image Sensor(Number of Effective Pixels)

    Approx. 2.14 Megapixels

  • Signal System

    NTSC color system

  • Minimum Illumination

    50 IRE:
    Color: 0.1 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.07 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

    30 IRE:
    Color: 0.06 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

  • Dynamic Range

    Equivalent to 90dB with View-DR technology

  • S/N Ratio

    More than 50dB (Gain 0dB)

  • Gain

    Auto

  • Shutter Speed

    1/1 s to 1/10000 s

  • Sync System

    Internal synchronization

  • Exposure Control

    Exposure compensation, AGC, Shutter speed, Iris

  • White Balance

    ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual

  • Lens

    Built-in vari-focal lens

  • Powered Zoom

    Yes (Easy Zoom)

  • Zoom Ratio

    Optical zoom 3x, Digital zoom 2x

  • Powered Focus

    Yes (Easy Focus)

  • Horizontal Viewing Angle

    105.2 to 35.4 deg.

  • Vertical Viewing Angle

    57 to 20 deg.

  • Focal Length

    f = 3.0 to 9.0mm

  • F-Number

    F1.2 (Wide), F2.1 (Tele)

  • Minimum Object Distance

    300mm

  • Horizontal Resolution

    700 TV lines (analog video)

  • Preset Position

    8

  • Tour

    5

  • Day/Night

    Yes

  • Wide-D

    Yes (View-DR)

  • Image Enhancement

    Visibility Enhancer (VE)

  • Noise Reduction

    XDNR technology

  • Image Stabilizer

    Yes

  • Image: Codec Image Size (H x V)

    1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)

  • Image: Video Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Image: Codec Streaming Capability

    Triple Streaming, CBR/VBR (selectable)

  • Image: Maximum Frame Rate

    H.264: 60 fps (1920 x 1080)
    JPEG: 60 fps (1280 x 720)

  • Audio Compression Format

    G.711/G.726/AAC (16 kHz, 48 kHz)

  • Scene Analytics: Motion detection

    Yes

  • Scene Analytics: Face Detection

    Yes

  • Scene Analytics: Rule-based Filter

    DEPA Advanced

  • Network Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SMTP, IPv6, HTTPS, SNMP (MIB-2)

  • Network ONVIF Conformance

    Yes (Profile S)

  • Network Number of Clients

    20

  • Network Authentication

    IEEE 802.1X

  • Interface: Analog Video Output

    BNC, 1.0 Vp-p, 75Ohms, unbalance, sync negative

  • Interface: Analog Monitor Output

    Phono jack x1

  • Interface: Line Input

    Mini jack (monaural)

  • Interface: Line Output

    Mini jack (monaural), Maximum output level: 1 Vrms

  • Interface: Network Port

    10BASE-T/100BASE-TX (RJ-45)

  • Interface: Sensor Input

    x2, make contact, break contact

  • Interface: Alarm Output

    x2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)

  • Interface: Microphone Input

    Mini jack (monaural)

  • Interface: Card Slots

    SD Card x1

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition

  • Processor

    Intel Core i7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0
    Firefox Ver. 3.5 (Plug-in free viewer only)
    Safari Ver. 4.0 (Plug-in free viewer only)
    Google Chrome Ver. 4.0 (Plug-in free viewer only)

  • Power Requirements

    PoE system (IEEE 802.3af compliant), DC 12 V +/- 10%, AC 24 V +/- 20%

  • Power Consumption

    6.0W max.

  • Operating Humidity

    20% to 80%

  • Storage Humidity

    20% to 95%

  • Safety Regulations

    JATE Technical standard (LAN)
    UL2044, IEC60950-1 (CB)
    VCCI (Class A), FCC (Class A), IC (Class A)
    Emission: EN55022 (Class A) + EN50130-4
    Immunity: EN55022 (Class A) + EN55024
    Emission: AS/NZS CISPR22 (Class A

  • Operating Temperature

    14 to 122 deg.F / -10 to +50 deg.C

  • Starting Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage Temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions

    Dia. 5.87 x 4.37" / Dia. 149.1 x 111mm

  • Weight

    Approx. 1.68lbs / 0.76kg

About Sony SNC-VM630

Mini Dome 1080p/60 fps Full HD Camera Powered by IPELA ENGINE Technology.

Sony SNC-VM630 Features

  • Maximum resolution of 1920 x 1080 pixels with the Exmor CMOS sensor
  • Extremely Wide Dynamic Range to 90dB achieved with View-DR technology
  • New video analytics functions including face detection and object removal/left behind
  • H.264 (High/Main/Baseline Profile)/JPEG video codecs and AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs
  • Minimum illumination of 0.1 lx in Color and 0.07 lx in B/W (50 IRE at 1/30 sec)
  • IPELA ENGINE EX signal processing system developed based on Sony's unique signal processing and video analytics technologies to provide unique features such as a high frame rate, View-DR, XDNR, and DEPA Advanced technologies
  • High frame rate of 60 fps to provide smoother and less blurry moving pictures
  • View-DR - Sony's innovative wide dynamic range technology - to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
  • Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • SD memory card slot for an on-board recording capability
  • XDNR (excellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
  • True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
  • Built-in HTML viewer compatible with most Smartphones
  • Easy Focus - allows installer/user to focus the camera remotely using a PC or locally
  • Easy Zoom - allows installer/user to change field of view locally or remotely using a PC
  • Powered by either PoE (IEEE 802.3af-compliant), AC 24 V +/-20%, or DC 12 V +/-10% for easy installation
  • ONVIF (Open Network Video Interface Forum) Profile S conformance software that ensures greater interoperability and more flexibility in building multiple-vendor systems
  • VBR (variable bitrate) or CBR (constant bitrate) encoding format selectable to correspond with various network conditions
  • Easy initial network settings with supplied SNC Easy IP Setup Guide application
  • Image Stabilizer to help minimize the effect of camera shake or vibration for less blurry images

Key Features

  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • Extremely Wide Dynamic Range to 90dB achieved with View-DR technology
  • High frame rate of 60 fps to provide smoother and less blurry moving pictures
  • Maximum resolution of 1920 x 1080 pixels with the Exmor CMOS sensor
  • Minimum illumination of 0.1 lx in Color and 0.07 lx in B/W (50 IRE at 1/30 sec)
  • New video analytics functions including face detection and object removal/left behind

What's in the box:

  • Sony SNC-VM630 2.14MP 1080p Indoor True Day/Night Minidome Network Camera with IPELA ENGINE Technology
  • CD-ROM (Supplied Programs)
  • Installation Manual
  • Template
  • Audio Cable
  • I/O Cable
  • BNC Cable
  • Power Input Cable
  • Screw M3
  • Bracket
  • Wire Rope
  • Safety Regulations
  • Sony 3 Year Limited Warranty
