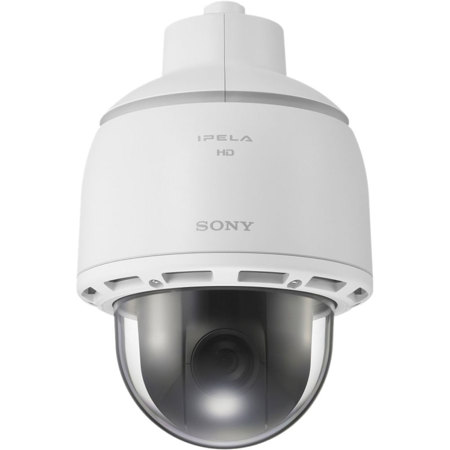

Sony SNC-WR602C 1.37MP 360 deg. 720p Outdoor True Day/Night Vandal Resistant Rapid PTZ Dome Camera with IPELA ENGINE PRO, 30x Optical Zoom, 60 fps, JPEG, H.264, HPoE

SKU: SOSNCWR602C

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony SNC-WR602C Specifications

  • Image Sensor

    1/3-type progressive scan Exmor CMOS sensor

  • Number of Effective Pixels

    Approx. 1.37 Megapixels

  • Signal System

    NTSC/PAL (switchable)

  • Sync System

    Internal synchronization

  • Minimum Illumination

    50 IRE:
    Color: 0.2 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.015 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

    30 IRE:
    Color: 0.12 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.009 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

  • Dynamic Range

    Equivalent to 130dB with View-DR technology

  • S/N Ratio (Gain 0dB)

    More than 50dB

  • Gain

    Auto/Manual

  • Shutter Speed

    1/1 s to 1/10000 s

  • Exposure Control

    Full auto, Shutter priority, Iris priority, Manual

  • White Balance

    ATW, ATW PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual

  • Lens

    Auto-focus zoom lens

  • Powered Zoom

    Yes

  • Zoom ratio

    Optical zoom 30x, Digital zoom 12x, Total zoom 360x

  • Powered Focus

    Yes

  • Auto Focus

    Yes

  • Horizontal Viewing Angle

    58.3 to 2.1 deg.

  • Vertical Viewing Angle

    34.8 to 1.2 deg.

  • Focal Length

    f = 4.3 to 129.0mm

  • F-Number

    F1.6 (Wide) to F4.7 (Tele)

  • Minimum Object Distance

    300mm

  • Pan/Tilt Angle (Powered)

    360 deg. endless rotation/220 deg.

  • Pan Speed

    700 deg./s (max.)

  • Tilt Speed

    700 deg./s (max.)

  • Number of Preset Positions

    256

  • Number of Tour Programs

    5

  • Day/Night

    True D/N

  • Wide-D

    View-DR

  • Tone Correction

    Visibility Enhancer (VE)

  • Defog Image Processing

    Yes

  • Highlight Compensation

    Yes

  • Noise Reduction

    XDNR

  • Image Stabilizer

    Gyroscopic Image Stabilizer

  • Picture Mode

    Yes

  • Privacy Masking (Number)

    12

  • Privacy Masking (Shape)

    Quadrangle

  • Privacy Masking (Color/Effect)

    Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

  • Edge Storage

    Yes

  • Voice Alert

    Yes

  • Vandal Resistant

    IK10

  • Ingress Protection

    IP66

  • Superimpose Number

    3 independent positions for characters (Codec, Date & Time, Event, Direction, Text (max. 64 characters)), 1 independent position for logo marks

  • Superimpose Language

    English

  • Menu Language

    English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish

  • Smartphone viewer

    Yes

  • Video: Resolution

    1280 x 720, 1024 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 360, 352 x 288, 320 x 184, (H.264, JPEG)

  • Video: Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Video: Maximum Frame Rate

    H.264: 60 fps (1280 x 720)
    JPEG: 60 fps (1280 x 720)

  • Video: Bitrate Compression Mode

    CBR/VBR (selectable)

  • Video: Range of Bitrate Setting

    64 Kbps to 32 Mbps

  • Video: Adaptive Rate Control

    H.264

  • Video: Multi Streaming Capability

    Triple streaming

  • Video: Number of Clients

    20

  • Video Analytics: Architecture

    DEPA Advanced

  • Video Analytics: Motion Detection

    Yes

  • Video Analytics: Face Detection

    Yes

  • Video Analytics: Tamper Alarm

    Yes

  • Video Analytics: Scene Analytics

    Passing, Intrusion, Left Object Detection, Removed Object Detection

  • Audio Compression Format

    G.711/G.726/AAC (16 kHz, 48 kHz)

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition
    Windows 8 Pro (32/64 bit), Windows 8.1 Pro (32/64 bit)

  • Processor

    Intel Corei7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver.11.0
    Firefox Ver. 19.02 (plug-in free viewer only)
    Safari Ver. 5.1 (plug-in free viewer only)
    Google Chrome Ver. 25.0 (plug-in free viewer only)

  • Network Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), FTP (client only), SSL

  • Network QoS

    DSCP

  • Network Multicast Streaming Support

    Yes

  • Network ONVIF Conformance

    Profile S

  • Network Authentication

    IEEE 802.1X

  • Interface: Analog Video Output

    BNC x1, 1.0 Vp-p, 75Ohms, unbalance, sync negative

  • Interface: Microphone Input

    Mini jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power

  • Interface: Line Input

    Mini jack (monaural)

  • Interface: Line Output

    Mini jack (monaural), Maximum output level: 1 Vrms

  • Interface: Network Port

    10BASE-T/100BASE-TX (RJ-45)

  • Interface: Alarm Input (Sensor Input)

    x4, make contact, break contact

  • Interface: Alarm Output

    x2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)

  • Interface: Serial Interface

    RS-422/RS-485 (PELCO D protocol)

  • Interface: Card Slots

    SD Card x1

  • Interface: Confirmed SD Card Type

    Max. 64GB

  • Power Requirements

    HPoE+ system, AC 24 V

  • Power Consumption

    Max. 30.0W (AC 24 V/HPoE+, heater OFF)
    Max. 80.0W (AC 24 V, heater ON)
    Max. 55.0W (HPoE+, heater ON)

  • Operating Humidity

    20% to 80%

  • Storage Humidity

    20% to 95%

  • Built-in Heater

    Yes

  • External Material

    Dome cover: PC
    Top sunshade: PC
    Coupling: ADC12
    Top cabinet: ADC12
    Sun shade: PC
    Dome flange: ADC12

  • Safety Regulations

    JATE Technical Standard (LAN)
    UL2044, IEC60950-1 (CB)
    VCCI (Class A), FCC (Class A), IC (Class A)
    Emission: EN55022 (Class A) + EN50130-4
    Immunity: EN55022 (Class A) + EN55024
    Emission: AS/NZS CISPR22 (Class A)
    KCC
    EMC-TR

  • Operating Temperature

    -40 to +50 deg. C / -40 to +122 deg. F / AC 24 V
    -30 to +50 deg. C / -22 to +122 deg. F / HPoE+

  • Cold Start Temperature

    -40 to +50 deg. C / -40 to +122 deg. F / AC 24 V
    -30 to +50 deg. C / -22 to +122 deg. F / HPoE+

  • Storage Temperature

    -20 to +60 deg.C / -4 to +140 deg.F

  • Dimensions

    Dia. 8.74 x 12.76" / Dia. 222 x 324.1mm

  • Weight

    Approx. 9.03lbs / 4.1kg

About Sony SNC-WR602C

HD, outdoor Rapid Dome IP camera, 30x optical zoom, 20deg. tilt up, 360deg. endless pan, 700deg./sec pan speed, 60fps, wide dynamic (View-DR 130dB), true D/N, gyro-based image stabilizer, SD card storage, IK10, IP66, HPoE+, AC 24V.

Sony SNC-WR602C Features

  • Maximum resolution of 1280 x 720 pixels with the Exmor CMOS sensor
  • Powerful 30x optical zoom capability
  • Dynamic range equivalent to 130 dB in HD mode achieved with View-DR technology
  • IK10-rated vandal-resistant and IP66-rated water-resistant/dust-tight features
  • IPELA ENGINE PRO signal processing system developed based on Sony's unique signal processing and intelligent video analytics technologies
  • Industry's leading 30x optical zoom capability to shoot various scenes over an extremely wide area, allowing capture of high- resolution images even from a great distance
  • View-DR - Sony's innovative wide dynamic range technology - to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
  • Gyroscopic Image Stabilizer to help minimize the effect of camera shake or vibration, reducing any image blur
  • Focal Plane Distortion Correction technology to correct any image distortion generated in a scene by the CMOS sensor focal plane phenomenon
  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
  • XDNR (excellent Dynamic Noise Reduction) technology for clear images without introducing motion blur under low illumination
  • Defog Image Processing feature to increase image visibility in poor weather conditions such as rain, fog, or smog
  • High frame rate of 60 fps to provide smoother and less blurry moving pictures
  • IP66-rated water-resistant and dust-tight feature for outdoor surveillance, and for indoor use where water ingress may pose an issue
  • Picture mode selectable from a range of camera scenes in the settings menu to optimize picture quality in various applications
  • True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
  • VBR (variable bitrate) capable of maximum bitrate setting or CBR (constant bitrate) compression mode selectable to correspond with various network conditions
  • Edge Storage function to record video and audio data with an SD/SDHC card attached to the camera
  • Easy initial network settings by supplied SNC Easy IP Setup Guide application
  • Smartphone viewer to display an image of the camera on the smartphone's screen and control the camera's pan, tilt, and zoom functions by simple touch-panel manipulation
  • ONVIF (Open Network Video Interface Forum) Profile S conformance firmware that ensures greater interoperability and more flexibility in building multi-vendor systems

Key Features

  • True D/N (Day/Night) function

What's in the box:

  • Sony SNC-WR602C 1.37MP 360 deg. 720p Outdoor True Day/Night Vandal Resistant Rapid PTZ Dome Camera with IPELA ENGINE PRO Technology
  • CD-ROM (Supplied Programs)
  • Installation Manual
  • Dome Cover
  • Top Sunshade
  • Coupling
  • Wire-Fixing Belt
  • Wire Bracket
  • 2x Bolts
  • Power Supply Connector 3-Pin
  • I/O Harness 14-Pin
  • Harness Band
  • Band Mount
  • Connection Cord (with BNC)
  • Sony Warranty
