Sony SRG-300SE Specifications

  • Image Sensor

    1/2.8 Exmor CMOS

  • Image Sensor (No. of Effective Pixels)

    Approx. 2.1 Megapixels

  • Signal System

    1080/59.94p, 50p, 29.97p, 25p
    1080/59.94i, 50i
    72/59.94p, 50p, 29.97p, 25p

  • Minimum Illumination (50IRE)

    1.4 lx (50IRE, F1.6, 30 fps)

  • S/N Ratio

    50 dB

  • Gain

    Auto/Manual (0 to +43 dB)

  • Shutter Speed

    1/1 to 1/10000 sec (59.94 Hz system)
    1/1 to 1/10000 sec (50 Hz system)

  • Exposure Control

    Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright

  • White Balance

    Auto, Indoor, Outdoor, One-push auto, ATW, Manual

  • Optical Zoom

    30x

  • Digital Zoom

    12x

  • Focusing System

    Auto/Manual

  • Horizontal Viewing Angle

    63.7 degree (Wide)

  • Focal Length

    f=4.3mm (Wide) to 129 mm (Tele)
    F1.6 to 4.7

  • Minimum Object Distance

    10 mm (Wide) to 1200 mm (Tele)

  • Pan/Tilt Angle

    Pan: +/-170 Degree Tilt: +90/-20 Degree

  • Pan/Tilt Speed (Max.)

    Pan: 100 Degree/sec Tilt: 90 Degree/sec

  • Preset Position

    256

  • Day/Night ICR

    Yes

  • Wide-D

    Yes (View-DR)

  • Noise Reduction

    Yes

  • Image Stabilizer

    Yes

  • Image Flip

    Yes

  • Superimpose Number

    3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a log mark

  • Superimpose Language

    English

  • Menu Language

    English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai

  • Smartphone Viewer

    Yes

  • Resolution

    1920 x 1080, 1280, 720, 10204 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)

  • Video Compression Format

    H.264, JPEG

  • Maximum Frame Rate

    "H.264: 60 fps (1920 x 1080)
    JPEG: 30 fps (1920 x 1080)

  • Bitrate Compression Mode

    CBR/VBR (selectable)

  • Range of Bitrate Setting

    64 Kbps to 32 Mbps

  • Image Cropping

    No

  • Solid PTZ

    Yes

  • Adaptive Rate Control

    H.264

  • Bandwidth Control

    JEPG

  • Muti Streaming Capability

    Triple Streaming

  • Number of Clients

    20

  • Audio Compression Format

    AAC-LC (64kbps/128bps)

  • Operating System

    Mac OS (Plug-in free viewer only), Android/iOS (Smart phone viewer only), Windows Vista (32 bit) Ultimate (Business Edition), Windows 7 (32/64 bit) Ultimate (Professional Edition), Windows 8 Pro (32/64 bit), Microsoft DirectX 9.0 <

  • Processor

    Intel Corei7 2.8 GHz <

  • Memory

    2 GB<

  • Web Browser

    Microsoft Internet Exlorer Ver. 8.0, 9.0, 10.0, 11.0. Firefox Ver. 19.02 (Plug-in free viewer only). Safari Ver. 5.1 (Plug-in free viewer only). Google Chrome Ver. 25.0 (Plug-in free viewer only).

  • Protocols

    IPc4, TCP, UDP, ARP, ICMP, IGMP. HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, IPv6, HTTPS, SNMP (v1, V2c, V3), SSL

  • QoS

    DiffServ(DSCP)

  • Multicast Streaming Support

    Yes

  • ONVIF Conformance

    No

  • Wireless Network

    No

  • Authentication

    IEEE802.1X

  • HD Video Output

    3G-SDI

  • MIC Input

    Mini Jack (Monaural): 2.5 V DC plug-in power

  • Line Input

    RCA (Monaural)

  • Network Port

    10BASE-T / 100BASE-TX (RJ-45)

  • Serial Interface

    RS-422

  • Power Requirements

    DC 12 V (DC 10.8 to 13.2 V)

  • Power Consumption

    16.8 W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Wide Conversion Lens Attachable

    No

  • Mountable Angle

    <+/-15 Degree

  • Ceiling Mount

    Yes

  • Dimensions (W x H x D)

    157 x 164 x 163mm / 6.18 x 6.46 x 6.42"

  • Weight

    1.4kg / 3.09lbs

  • UPC Code

    027242913493

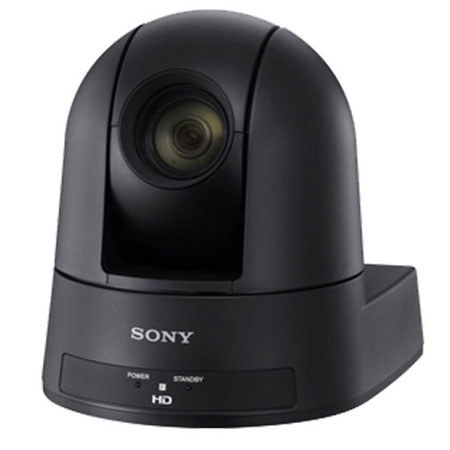

About Sony SRG-300SE

HD resolution visual-imaging camera, which uses 3G SDI cables - making it ideal for use not just for Videoconferencing but also in auditoriums, for live streaming, event recording etc. The SRG-300SE can deliver 3G-SDI video whilst streaming over the net making it possible to have 2 separate simultaneous video outputs. This is especially useful in LIVE events where you can stream live video over the net and use 3G-SDI to record it.

View-DR Technology
View-DR uses an electronic shutter to capture multiple images at different exposures, these are combined in real time to produce each wide-dynamic video frame. The resulting image is processed by a technology called Visibility Enhancer to further improve the chrominance and luminance, resulting in natural looking, wide dynamic images even better than the naked human eye can perceive.

Adaptable. Versatile. Portable
There are a number of key application areas where the SRG-300SE brings clarity and adaptability to all.

Education
Boost student engagement and connect pupils with other classrooms. Capture teacher's presentations with Full HD video and crisp audio for live streaming to other campus areas or anywhere in the world. Everything's clear, even in a harshly sun-drenched classroom or on dull days where other cameras struggle. Teaching sessions can be recorded for review, sharing and self-study.

Lecture Capture
Make every lecture a live event and stream Full HD video to other students. The camera's wide field of view can capture everyone in the room. Smooth, silent PTZ allows instant re-framing without disturbing your audience. Or zoom in from the back of an auditorium for power-packed close-ups of the lecturer.

Telemedicine And Medical Training
Enhance teaching for medical students with a clear view of procedures in the Operating Room, transmitted live over IP to lecture theatres or teaching rooms. Record surgical procedures or seminars for archive, analysis and sharing with students or other consultants.

Corporate
Bring sales presentations, conferences and all-company meetings to life for every stakeholder. Capture clear Full HD video images, even in dimly-lit boardrooms. Focus on any speaker in the room with smooth, silent PTZ operation and capture crisp audio with an attached microphone. Stream meetings and conferences live to other sites and record simultaneously for the web or archive.

Auditoriums/Areas (low end AV)
Installed permanently in any auditorium or hall, the SRG-300SE can be used to stream or record presentations, meetings, conferences and live performances. Full HD video quality and smooth, silent PTZ is complemented by crystal-clear digital sound from an attached microphone.

Share A Clearer, Sharper Image
Capture and share exceptional Full HD images at 60 frames per second with the SRG-300SE PTZ (Pan-Tilt-Zoom) color video camera. This versatile video camera uses Sony's latest technology to deliver high-quality 1080/60p pictures and crisp AAC digital audio that can be live-streamed simultaneously via IP and 3G-SDI.

Wide View, Powerful Zoom, Silent Operation
With a wide viewing field, 30x optical and 12x digital zoom and smooth, silent PTZ operation, it's an ideal camera for lecture theatres, corporate boardrooms and training suites. Unique features also include Sony's View-DR technology, which ensures clear images even under harsh backlighting or when extremes of light and dark appear in the same scene.

Perfect for Presentations, Lectures and Webcasts
Controlled remotely over standard IP networks, the SRG-300SE can be used as either a primary or secondary camera in a wide range of visual applications, from videoconferencing to remote monitoring. With low latency, content can confidently be broadcast live to an internet audience while also being recorded to disc for editing and archive.

Applications
With a 30x optical zoom capability (360x with digital zoom), the SRG-300SE is ideal for medium to large venues such as stadiums, auditoriums and large classrooms.

Full HD Resolution at 60fps
The SRG-300SE provides an exceptionally clear, Full HD picture at 1920 x 1080 resolution with 60 frames per second for smooth, fluid reproduction of movement and reduced blur. It offers outstanding professional quality for remote shooting, ensuring every presenter, participant or audience member can be seen more clearly.

Highly Sensitive: Exmor CMOS
Full HD resolution and 60p frame rate are achieved with Sony's high-sensitivity Exmor CMOS image sensor. It ensures clear pictures even in low light where other cameras struggle (minimum illumination is 1.4 lx).

Unique: View-DR
Unique to Sony, View-DR technology expands the dynamic range to produce a clear image under harsh backlighting and when extremes of light and dark appear in the same scene.

30x High Power Zoom
Perfect for frame-filling, detailed close-ups, even in large meeting rooms and auditoriums. The powerful 30x optical zoom is further boosted by a 12x digital zoom. Responsive auto-focus ensures image sharpness, even at high zoom.

Reduced Image Noise: XDNR
XDNR technology reduces image noise for crisp reproduction of still and moving objects in poorly illuminated rooms.

Wide Field Of View
With a wide 65-degree horizontal viewing angle, every participant can be seen, even in large lecture halls and conference venues.

Fast, Silent PTZ
A powerful direct drive motor ensures quick, quiet and accurate operation during pan, tilt and zoom targeting - vital in noise-restricted environments like classrooms and meeting rooms.

Easy Desktop Or Ceiling Mounting
All-in-one compact and lightweight design with image E-flip so the camera can be sited on a boardroom table or ceiling while maintaining proper image orientation. Available in white as well as black, for unobtrusive ceiling mounting.

Enhanced Audio
Audio and video can be naturally reproduced with optimally minimized processing latency. Accurate audio/video synchronization is achieved using the camera's time stamp feature in the network-attached recorder. A microphone (optional) can also be connected for further audio enhancement.

Simple Controls
Via VISCA over IP and RS-422 remote protocols. PC control software provides an intuitive interface for easy, remote adjustment of basic and advanced camera settings such as color adjustment and pan/tilt speed.

256 Programmable Pre-Sets
Store and instantly recall up to 256 camera positions from a networked PC and web browser.

What's in the box:

  • Sony SRG-300SE 1080/60P 3G-SDI and Live IP Streaming PTZ Camera
  • AC Power Adaptor
  • AC Power Cable
  • RS-422 Connector Plug
  • 2x Ceiling Bracket
  • Wire Rope
  • 8x Screw M3x8
  • Sony Warranty
