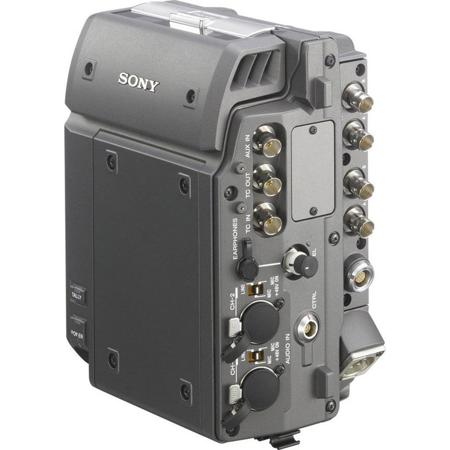

Sony SRMASTER Portable Recorder for Cameras with HD-SDI Interface

The Sony SR-R1 is a highly portable recording system compatible with any cameras, camcorders and other equipment with an HD-SDI interface, including the PMW-F3, F35 and SRW-9000PL. Dual-link HD-SDI/3G-SDI is supported to provide stunning recording capabilities including 1080 50p/59.94p and RGB 4:4:4 recording. This system also offers a dual-stream recording capability which is useful for 3D stereoscopic image capturing. SR-Lite (220-Mbps) and SR-SQ (440-Mbps) are supported as standard.

The SR-R1 records on to SRMemory media. The SRMemory Cards are revolutionary memory media for the most demanding cinematography, live studio and post production applications, including 3D. The SRMemory cards feature huge transfer speeds of up to 5.5Gbps and massive data capacity. The SR-R1 recorder also features 16-channel uncompressed audio recording at 23 bits, timecode input & output, a control panel and DC power operation. Via an optional adapter (not included), you can dock the recorder to Sony camcorders. The SR-R1 also records RGB S-Log data from F35, SRW-9000PL and PMW-F3 cameras.

SRMemory Recording
The SR-R1 records on to SR-MC SRMemory Cards (sold separately), offering massive data capacity and huge sustained transfer rates. SRMemory is unique with its combination of capacity, sustained data throughput, security and portability. It opens up completely new ways for creatives to work. SRMemory Cards are available in capacities of 256 GB, 512 GB and 1 TB, combining massive storage capacity with unrivalled levels of data security. The cards can record and replay multiple streams simultaneously and support data rates that can handle up to 4K. SRMemory Cards offer huge transfer speeds - up to 5.5 Gb/s for faster transfer of data in post production and for ultra-fast cloning of data on-set or at a live event. It is possible to record multiple camera streams on to a single card at a live event.

HDCAM SR Recording and Replay
The SR-R1 records the same picture quality that has made HDCAM SR the worldwide reference for ultimate quality. SR-Lite (220 Mb/s) and SR-SQ (440 Mb/s) are supported as standard.

Uncompressed DPX Recording Option
With the SRK-R311 option (not included), the SR-R1 records uncompressed Native DPX file format for a wide range of applications.

3D & 2D 4:2:2 and RGB 4:4:4 Recording
The SR-R1 records 4:2:2 2D and 3D as standard, with 3D stereoscopic (dual-stream) mode. Up to 30p RGB 4:4:4 dual-stream is an option (not included). The recorder has a dual HD-SDI / 3G-SDI interface and, with the SRK-R301 option (not included), dual 3G-SDI for an RGB 3D rig.

Multiple Frame Rate Recording
The SR-R1 is able to record multiple frame rates working with the PMW-F3 Camera - 17-60 fps in 4:2:2 and 17-30 fps in RGB.

Frame-Accurate Recording with SXS Card and SRMemory simultaneously
Operating with the PMW-F3 Camera, the SR-R1 is able to make frame-accurate recordings on both the SXS Card and SR-MC SRMemory Card.
