Review Summary
Based upon RS-170A/CCIR R.624-3
56 dB or more
15 ns or less
24 bits/sample
48 kHz (synchronized with video)
Below measurable level
S-NRZ
MPEG-4 Studio Profile
10 bits/sample
HDCAM-SR: Y: 74.25 MHz Cb/Cr: 37.125 MHz G/B/R: 74.25 MHz
Studio Player
Approx. 4 min with BCT-124SR cassette
HDCAM - SR
25 % to 80 % (relative humidity)
+ 5 deg. C to +40 deg. C (+41 deg. F to +104 deg. F)
124 minutes with BCT-D124L tape
380W with full options
100 to 240 V AC (+/-10 % 50/60 Hz)
155 min with BCT-124SR cassette (24 Hz) with BCT-124SRL or BCT-124HDL tape
-20 deg. C to +60 deg. C (-4 deg. F to +140 deg. F)
HDCAM-SR
Search Speed Range: Still to +/-50 times normal playback speed
Search Speed Range: Still to +/-60 times normal playback speed (25 Hz)
Search Speed Range: Still to +/-50 times normal playback speed (24 Hz)
Search Speed Range: -1 to 3 times normal playback speed
Search Speed Range: -1 to 2 times normal playback speed
Search Speed Range: -0.5 to 1 times normal playback speed
96.7 mm/s
77.4 mm/s (24 Hz)
94.2 mm/s (24 Hz)
XLR-3-pin type (male x2)
(CH1/2/3/4/CUE) XLR-3-pin type (male x1)
1125 Sync: BNC (x2) Tri Level sync 0.6 Vp-p 75 Ohms Sync negative
BNC (x6 AES/EBU) BNC (x6) AES/EBU Unbalanced
BNC (x2) with character out
BNC (x3 with character out) Serial digital (1.485 Gb/s) SMPTE 292M/BTA S004/ITU-R.BT 709
XLR-3-pin type (male x2) +4 dBm (with a 600 Ohms load) Low impedance Balanced
10Base-T modular jack
D-sub 50-pin (female)
D-sub 9-pin (female) Sony 9-pin remote interface
427 x 218 x 544mm (16.81 x 8. 58 x 21.41")
30kg (66.13lbs)

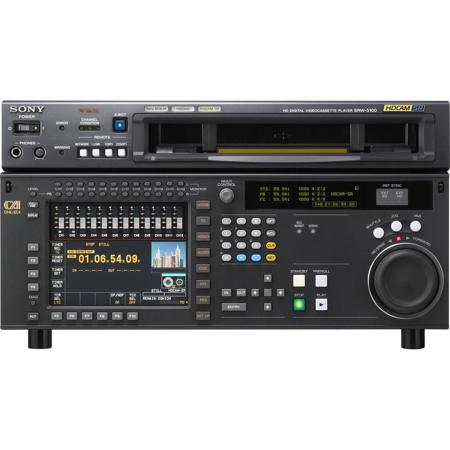

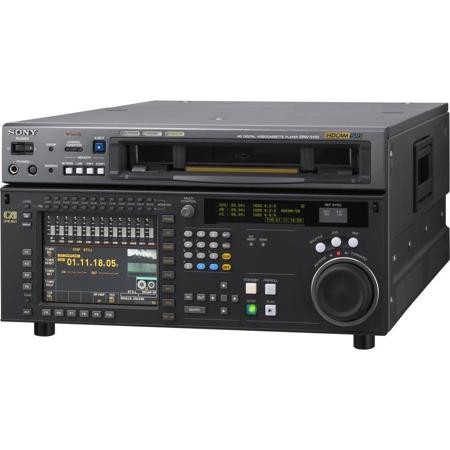

Bring unparalleled clarity and fidelity to your professional video playback with the Sony SRW5100/2 HDCAM-SR Player Deck. Engineered for durability and reliability, this advanced player deck is a staple in the broadcast and post-production industries, thanks to its exceptional 56dB signal-to-noise ratio that ensures minimal noise and interference in audio and video signals.
The SRW5100/2 is equipped with the latest HDCAM SR MPEG4 Simple Studio Profile codec ASIC, which not only supports a wide array of high-definition video formats but also caters to the evolving needs of the industry with its capability to handle higher sampling resolutions, including 2K. This makes it an ideal choice for professionals who demand the highest quality in video playback and archiving.
With the inclusion of RGB 4:4:4SQ mode as a standard feature in the /2 models, the Sony SRW5100/2 offers enhanced color reproduction and image quality, which is essential for color grading and digital intermediate processes. This high-quality, professional deck is designed to work seamlessly with the HDCAM-SR format, a preferred choice for high-definition content creation due to its superior picture and sound quality.
The versatility of the Sony SRW5100/2 is further exemplified by its comprehensive range of input and output options. It boasts HD-SDI, SD-SDI, and analog component video connectivity, allowing seamless integration into a variety of workflows and setups. Whether you're working on feature films, television productions, or commercial projects, the Sony SRW5100/2 HDCAM-SR Player Deck stands as a reliable and essential tool for high-definition video playback that meets the rigorous standards of the industry.
