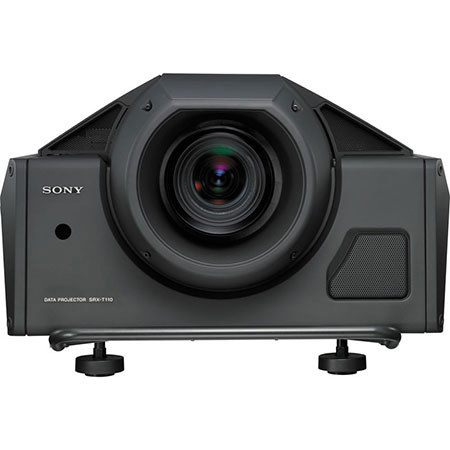

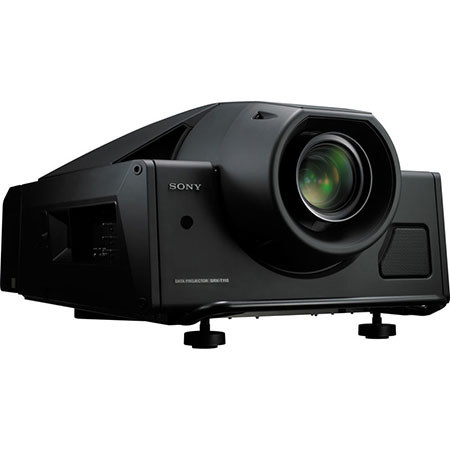

Sony SRX-T110 4K SXRD Projector, DVI, 11000 Lumens, 2500:1 Contrast Ratio, Lens not Included

Sony SRX-T110 XRD 4K Projector (Lens not included) rapidly acquired a great reputation with many customers due to their outstanding picture quality and stunning performance. Now, Sony is proud to introduce the next generation of SXRD 4K projector SRX-T110, advanced projectors designed to meet the evolving needs for ultimate picture quality.

Silicon X-tall Reflective Display (SXRD) Device
The SXRD device used by the SRX-T110 is a 1.55-inch Liquid Crystal on Silicon-based display device developed by Sony using cutting-edge manufacturing technology. High-quality, accurate visuals are created using this brilliant display device.

High Resolution 4K
Sony SXRD display devices deliver the exceptionally high resolution of 4K x 2K (4096 x 2160, 17:9 widescreen format), more than four times as many pixels as Full HDTV (1920 x 1080, 16:9 wide screen format).The SXRD device helps to achieve this resolution by incorporating nearly 8.85 million pixels per device at a narrow pitch of 8.5 micrometers. These high-density pixels, which are one quarter the size of pixels projected using typical 2K x 1K resolution projection systems (2.2 million pixels), provide an amazing picture. Even in multi-screen mode, full 2K resolution per quadrant can be achieved. The resolution available from the Sony SRX-T110 enables a new level of visual projection.

High 2500:1 Contrast Ratio
The SRX-T110 offer a high contrast ratio of 2500:1 through the use of Sony's unique SXRD device. The SXRD device itself achieves a contrast ratio of 4000:1. This stunning picture quality makes the projectors ideal for applications in which dynamic range is essential. The high contrast ratio has been achieved through two key technologies - the exclusive ?normally black mode' system and an extremely thin liquid crystal cell gap.

Thin Liquid Crystal Cell Gap
Another important factor allowing for the high contrast of the SRX-T110 is the SXRD device's ultra thin cell gap of less than 2 micrometers. With conventional ?vertically aligned liquid crystal' systems, a thin cell gap could not be achieved. Sony has overcome this difficulty through the use of innovative planarization technology in the silicon backplane structure and an advanced silicon wafer-based assembly process. The SXRD device also adopts a structure that does not use spacers". These are columns found in conventional reflective liquid crystal devices to maintain a constant gap between the liquid cell floor and the top of the device. Spacers tend to both scatter and reflect light, which can impair high contrast pictures. In the spacer-less SXRD device, these artifacts are no longer seen.

Short Response Time
The thin cell gap structure in SXRD devices also contributes to an ultra-fast response time of 2.5 milliseconds (for both rise and fall). The SXRD device reacts promptly to an instantaneous change of picture content, enabling SXRD-based projectors to display smoothly. Consequently, the SRX-T110 virtually eliminate motion blur; a particularly significant benefit for visuals that include fast-moving objects.

Reliable Display Device
The SRX-T110 use high-power, bright lamps. As a result, special attention has been paid to the reliability of the SXRD device. The inorganic materials utilized for the alignment layer of the SXRD device are resistant to deterioration or deformities that could occur due to the intense heat and light generated by the powerful twin lamp system.

Xenon Lamp Provides Highly Bright and Pure Light Source
The SRX-T110 provides a high brightness of 11,000 lumens by employing two 2 kW Xenon lamps. The Xenon lamps utilized by the SRX-T110 achieve a wide color range by dispersing a very flat and wide light spectrum.

Color Space Conversion (CSC)Function
The SRX-T110 feature a CSC function to help users easily adjust the projector's color space to that defined by the International Telecommunication Union -R BT.709-3 standards for digital HDTV studio color space, the DCDM (Digital Cinema Distribution Master) color space, or the Adobe RGB color space. The target color gamut parameters satisfying the ITU-R BT. 709-3 standards, or DCDM or Adobe RGB specifications are automatically calculated from settings on the supplied SRX Controller software and then applied to the projector. The internal test generator simplifies adjustment and lets the operator align the projector in minutes. White point and color primary points can be aligned to either of these standards or to the customer's application needs.

12-bit SXRD Panel Driver
The SRX-T110 utilize a 12-bit SXRD panel driver that reproduces extremely natural-looking images. This eliminates quantizing and edge errors that take away from the real resolution that these projectors can achieve.

Gamma Curve Selection
The SRX-T110 provide three preset gamma curve values. Users can select an optimum value from 2.2, 2.6, or user-defined values according to the desired gray scale.

Dual-lamp System with Selectable Lamp Modes
The SRX-T110 adopt a unique lamp system that uses two lamps for reliable, flexible and efficient use of light sources. With this dual-lamp system, users can operate the projector using both lamps for full brightness, or can select single-lamp operation. The dual-lamp mode provides maximum lamp power and at the same time enables virtually fail-safe operation; if one bulb burns out, the other can keep projecting images. In single-lamp mode, users can select either of the two lamps manually, or the projector can automatically select a lamp based on each lamp's operating time. Another automatic mode is provided to make the lamps operate alternately at user-defined intervals selectable from four hours to twelve hours (in increments of one hour). This feature is useful when lamp life needs to be maximized. The lamp power can be set between 100% and 51%, in eight steps. This function, combined with the selectable lamp modes, contributes to achieving longer lamp life.

Zoom/Focus Memory Function
The SRX-T110 is equipped with Zoom and Focus Memory functions that make it easy to switch the projection between two types of aspect ratios. When used with the LKRL-Z117 and LKRL-Z122 Zoom Lenses, any seven zoom and focus positions can be memorized and instantly recalled via the SRX Controller software. This allows full screen display regardless of the aspect ratio. An electronic vertical alignment feature is included in the same memory to compensate for vertical changes in the image, should the projector be mounted at a down angle.

Multiple Screen Capability
The SRX-T110 offer a choice of single-mode, dual-mode and quad-mode display. In quad mode, four quadrants of images are projected. At maximum resolution, these four quadrants can project four different 2K (2048 x 1080) images simultaneously or a single 4K (4096 x 2160) image made up of four 2K images. For 4K projection, it is necessary to divide an entire image into four quadrants and to input the signals of all quadrants simultaneously.

Input Signal Flexibility
To increase the configuration flexibility of the SRX-T110, slots are available to accommodate four different boards that connect to various types of signal formats. The SRX-T110 is pre-installed with an LKRI-005 HDCP DVI Board, which can accept DVI signals and provides a digital copy protection capability. In addition to the standard HDCP DVI input, three slots are available for the installation of boards. This allows simultaneous accommodation of up to four input/interface boards in the side panel of the projector. Users can select from single, dual and quad screen modes and assign the appropriate signal board to each quadrant. The LKRI-005 HDCP DVI Board can accept DVI signals up to 2048 x 1080P and offers a digital copy protection capability compliant with the HDCP specification to 1920 x 1080P and 1280 x 720P signals.

Quiet Operation by the Intelligent Cooling Fan System
The SRX-T110 adopt an intelligent cooling system that automatically controls multiple cooling fans incorporated in the unit. This system automatically adjusts the rotating speed of the fans according to the heat generated inside the unit, which varies depending on the brightness level of the lamps. In addition, when single-lamp mode is selected, this system automatically stops operation of the fans for the unused lamp.

Simple Remote Controller Unit
The SRX-T110 is supplied with a remote controller unit that can perform various simple functions such as turning the lamp power on/off, adjusting the zoom/focus and controlling the lens shift.

Easy Setup on a PC Using Supplied Software
The SRX-T110 come equipped with the SRX Controller software that allows easy setup and adjustments via its intuitive GUIs on a PC. These projectors can be controlled through either Ethernet or RS-232C interfaces and up to four projectors can be controlled on the same GUI from a single PC When using an Ethernet connection. A comprehensive range of setup parameters including input configurations, colorimetry controls, installation adjustments and maintenance settings can be controlled via this software. These setup parameters can be saved to a PC as a data file and reused for another SRX-T110 projector.
