Sony SNC-EP550 Specifications

  • Image Device

    1/4-type Exmor CMOS

  • Number of Effective Pixels

    Approximately 1.43 MP

  • Minimum Illumination

    Color: 2.0 lux (Approximately)

  • Electronic Shutter Speed

    1/1 to 1/10,000 seconds

  • Frames Per Second

    variable up to 30

  • Gain Control

    Auto/manual (-3 to 28 dB)

  • Exposure Control

    Full auto, shutter priority, iris priority, manual

  • White Balance Modes

    Auto, ATW, indoor, outdoor, one-push, manual, sodium vapor lamp

  • Lens Type

    Auto-focus zoom lens

  • Focal Length

    f=3.5 to 98 mm

  • Zoom Ratio

    Optical zoom 28x, digital zoom 12x, total zoom 336x

  • Horizontal Viewing Angle

    55.9 degree to 2.1 degree

  • F Number

    F/1.35 to 3.7

  • Minimum Object Distance

    Wide to tele: 0.39 to 59.05" (10 to 1500 mm)

  • Pan Angle

    340 degree

  • Pan Speed

    300 degree/s (maximum)

  • Tilt Angle

    105 degree

  • Tilt Speed

    300 degree/s (maximum)

  • Preset Positions

    256

  • Tour

    5

  • Codec Image Size (H x V)

    1280 x 720, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192

  • Video Compression Format

    H.264, MPEG-4, JPEG

  • Codec Streaming Capability

    Dual streaming

  • Maximum Frame Rate

    30 fps (H.264/MPEG-4/JPEG)

  • Audio Compression

    G.711/G.726

  • Intelligent Motion Detection

    Yes

  • Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)

  • Authentication

    IEEE802.1X

  • Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Card Slot

    1 SD memory card (Compatible with the SD/SDHC standards)

  • Sensor Input

    2

  • Alarm Output

    1

  • External Microphone Input

    Mini-jack (monaural)

  • Audio Line Output

    Mini-jack (monaural), Maximum output level: 1 Vrms

  • Power Requirements

    HPoE (IEEE802.3 at compliant)

  • Power Consumption

    Approximately 25 W

  • Starting Temperature

    32 deg. F to 122 deg. F (0 deg. C to 50 deg. C)

  • Storage Temperature

    -4 deg. F to 140 deg. F (-20 deg. C to 60 deg. C)

  • Safety Regulations

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Operating System

    Microsoft Windows XP (32 bit) - Professional Edition
    Microsoft Windows Vista (32 bit) - Ultimate, Business Edition
    Microsoft Windows 7 (32/64 bit) - Ultimate, Professional Edition

  • Processor

    Intel Core2 Duo 2 GHz or higher

  • Memory

    1 GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
    Firefox Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)

  • Resolution

    1.3 megapixel/720p

  • Dimensions (L x W x H)

    11.5 x 11.5 x 21.5"/29.21 x 29.21 x 54.61cm

  • Weight

    13lbs/5.89kg

About Sony SNC-EP550

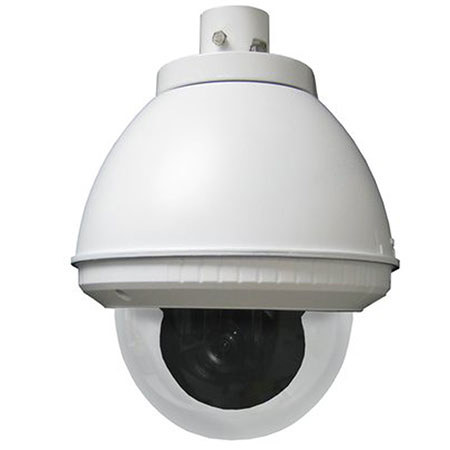

The Sony SNC-EP550 1.3MP Unitized Outdoor Pan-Tilt-Zoom Camera with HPoE is a complete monitoring solution that delivers excellent quality video footage for outdoor surveillance. It includes the SNC-EP550 Pan-Tilt-Zoom Camera, a housing and a pendant mount with clear lower dome. The camera features a powerful 28x optical zoom that brings distant objects closer, making it ideal for detailed monitoring. Its 3.5 to 98mm zoom lens lets you adjust the camera view, so that you can get what you desire either more detailed images or a wider coverage. Featuring a pan/tilt mechanism, the camera offers 340½ pan and 105½ tilt operations for quick and accurate movements.

For improved image quality, the camera is equipped with a 1/4-type Exmor CMOS sensor that reproduces high-resolution images at 720p resolution at 30 fps. For versatile data management, recorded footage can be captured in MPEG4, JPEG and H.264 compression formats. Operating on Sony's DEPA platform that offers intelligent video analytics, the Pan-Tilt-Zoom Camera provides customizable local alarm triggers and prevents false alarms. It sends images as well as provides related information such as object size and position for advanced downstream video analytics. With the RealShot Manager Lite recording software, the camera can be setup quickly for recording and monitoring. The Network Camera is compliant with ONVIF (Open Network Video Interface Forum) protocol, which enables exchange and use of information between network video devices from various manufacturers.

Sony SNC-EP550 Features

  • Outdoor Unitized
  • DynaView Wide-D capability
  • DEPA Intelligence for faster image processing on recorder
  • Onvif technology for easy interoperability in multi-vendor network systems
  • Day/Night modes for improved visibility
  • Dual Streaming (any combination with JPEG/MPEG-4/H.264)
  • HPoE enabled so power and data are transported by Ethernet cable
  • Noise Reduction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Outdoor Unitized
  • DynaView Wide-D capability
  • Day/Night modes for improved visibility
  • Noise Reduction

What's in the box:

  • Sony SNC-EP550 Unitized Outdoor Pan-Tilt-Zoom Camera
  • 60W Midspan
  • PowerDsine 9501G
  • Pendant Mount Coupling
  • Clear Lower Dome
  • CD-ROM
  • Ceiling Bracket
  • 2x Screws
  • Template
  • 24 V AC connector
  • I/O Cable
  • Sony 3 Year Warranty
