Sony SNC-EP580 Unitized Outdoor Pan-Tilt-Zoom Camera, HPoE Power
See all Sony items

Sony SNC-EP580 Unitized Outdoor Pan-Tilt-Zoom Camera, 20x Optical Zoom, 1080p HD, Dula Streaming, HPoE

SKU: SOUONEP580C7
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Sony BRC-X400: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, White
$8,350.00
Sony SRG-X120W: Picture 1 regular
SRG-X120 12x PTZ Camera, Includes NDI|HX License, Black
$3,352.00$2,399.00
Sony SRG-X120: Picture 1 regular
SRG-X120 12x PTZ Camera, Includes NDI|HX License, White
$3,197.00
Sony SRG-X400: Picture 1 regular
Sony SRG-X400 Full HD NDI|HX/3G-SDI/HDMI/IP 20x PTZ Camera, Black
$3,799.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-EP580 Specifications

  • Image Device

    1/2.8-type Exmor CMOS

  • Number of Effective Pixels

    Approximately 3.27 MP

  • Minimum Illumination

    Color: 1.7 lux (F1.6, shutter 1/30sec, AGC ON, 50 IRE[IP])
    B&W: 0.3 lux (F1.6, shutter 1/30sec, AGC ON, night mode 50 IRE [IP])
    Color: 1.2 lux (F1.6, shutter 1/30sec, AGC ON, 30 IRE[IP])
    B&W: 0.18 lux (F1.6, shutter 1/30sec, AGC ON, night mode, 30 IRE[IP])

  • Electronic Shutter Speed

    1/1 to 1/10,000 seconds

  • Gain Control

    Auto/manual (-3 to 28 dB)

  • Exposure Control

    Full auto, shutter priority, iris priority, manual

  • White Balance Modes

    Auto, ATW, indoor, outdoor, one-push, manual, sodium vapor lamp

  • Lens Type

    Auto-focus zoom lens

  • Zoom Ratio

    Optical zoom 20x, Digital zoom 12x, Total zoom 240x

  • Horizontal Viewing Angle

    55.4 degree to 2.9 degree

  • Focal Length

    f=4.7 to 94mm

  • F Number

    F/1.6 to 3.5

  • Frames Per Second

    Variable up to 30

  • Minimum Object Distance

    Wide: 0.39" / 9.90mm
    Tele: 31.49" / 799.84mm

  • Pan Angle

    340 degree

  • Pan Speed

    300 degree/s (maximum)

  • Tilt Angle

    105 degree

  • Tilt Speed

    300degree/s (maximum)

  • Preset Positions

    256 positions

  • Tour

    5

  • Codec Image Size (H x V)

    1920 x 1080, 1680 x 1056, 1280 x 1024, 1440 x 912, 1280 x 960, 1376 x 768, 1280x800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192

  • Video Compression Format

    H.264, MPEG-4, JPEG

  • Codec Streaming Capability

    Dual streaming

  • Maximum Frame Rate

    30 fps (H.264) / 20 fps (MPEG-4) / 16 fps (JPEG)

  • Audio Compression

    G.711/G.726

  • Intelligent Motion Detection

    Yes

  • Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)

  • ONVIF

    Yes (Version 1.02)

  • Number of Clients

    5

  • Authentication

    IEEE802.1X

  • Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Card Slot

    SD memory card x 1 (Compatible with the SD/SDHC standards)

  • Sensor Input

    2

  • Alarm Output

    1

  • External Microphone Input

    Mini-jack (monaural)

  • Audio Line Output

    Mini-jack (monaural), Maximum output level: 1 Vrms

  • Power Requirements

    HPoE (IEEE802.3at compliant)

  • Power Consumption

    Approximately 25 W

  • Operating Temperature

    -20 deg. F to 122 deg. F (-28.8 deg. C to 50 deg. C)

  • Starting Temperature

    32 deg. F to 122 deg. F (0 deg. C to 50 deg. C)

  • Storage Temperature

    -4 deg. F to 140 deg. F (-20 deg. C to 60 deg. C)

  • Safety Regulations

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Operating System

    Microsoft Windows XP (32 bit) - Professional Edition
    Microsoft Windows Vista (32 bit) - Ultimate, Business Edition
    Microsoft Windows 7 (32/64 bit) - Ultimate, Professional Edition

  • Processor

    Intel Core2 Duo 2.33 GHz or higher

  • Memory

    2 GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
    Firefox Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)

  • Dimensions (L x W x H)

    11.5 x 11.5 x 21.5" / 292.1 x 292.1 x 546.1mm

  • Weight

    13 lbs / 5.89 kg

About Sony SNC-EP580

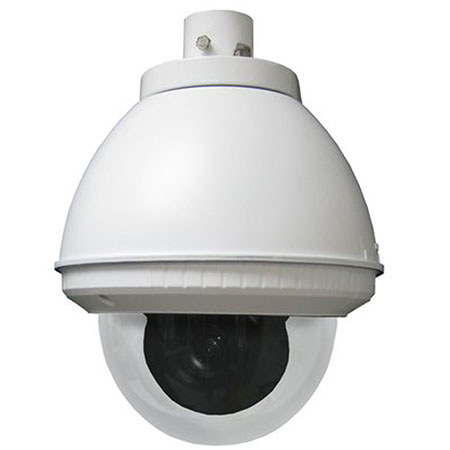

The Sony SNC-EP580 3.27MP Unitized Outdoor Pan-Tilt-Zoom Camera with HPoE is a complete monitoring solution that delivers excellent quality video footage for outdoor surveillance. It includes the SNC-EP580 Pan-Tilt-Zoom Camera and a housing with HPoE++ operation.

The camera features a powerful 20x optical zoom that brings distant objects closer, making it ideal for detailed monitoring. Its 4.7 to 94mm zoom lens lets you adjust the camera view, so that you can get what you desire either more detailed images or a wider coverage. Featuring a pan/tilt mechanism, the camera offers 340 degree pan and 105 degree tilt operations for quick and accurate movements.

For improved image quality, the camera is equipped with a 1/2.8-type Exmor CMOS sensor that reproduces high-resolution images at 1080p resolution at 30 fps. For versatile data management, recorded footage can be captured in MPEG4, JPEG and H.264 compression formats.

Operating on Sony's DEPA platform that offers intelligent video analytics, the Pan-Tilt-Zoom Camera provides customizable local alarm triggers and prevents false alarms. It sends images as well as provides related information such as object size and position for advanced downstream video analytics.

With the RealShot Manager Lite recording software, the camera can be setup quickly for recording and monitoring. The Network Camera is compliant with ONVIF (Open Network Video Interface Forum) protocol, which enables exchange and use of information between network video devices from various manufacturers. The Smartphone viewer feature helps to access the camera from a Smartphone to keep an eye on the premises.

Sony SNC-EP580 Features

  • Outdoor Unitized SNC-EP580
  • HPoE++ operation
  • DynaView Wide-D capability
  • DEPA Intelligence for faster image processing on recorder
  • Onvif technology for easy interoperability in multi-vendor network systems
  • Day/Night modes for improved visibility
  • Dual Streaming (any combination with JPEG/MPEG-4/H.264)
  • HPoE enabled so power and data are transported by Ethernet cable
  • Noise Reduction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Outdoor Unitized SNC-EP580
  • HPoE++ operation
  • DynaView Wide-D capability
  • Day/Night modes for improved visibility
  • Noise Reduction

What's in the box:

  • Sony SNC-EP580 Unitized Outdoor Pan-Tilt-Zoom Camera
  • CD-ROM
  • Ceiling Bracket
  • 2x Screws
  • Template
  • 24V AC Connector
  • I/O Connector
  • Sony 3 Year Warranty
