Name: Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Omni Lavalier Microphone, 14/25: 470 to 542MHz
Brand: Sony
SKU: SOUTXB0314
Price: 328.39 USD
Availability: Discontinued
Rating: 5 (2 reviews)

Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Omni Lavalier Microphone, 14/25: 470 to 542MHz

Sony UTX-B03

Sony

Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter, 470 to 542MHz

Adorama

Audio

Microphones

Wireless Microphones

Wireless Transmitters & Receivers

Sony Wireless Transmitters & Receivers

Sony UTX-B03

36% Off: Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Omni Lavalier Microphone, 14/25: 470 to 542MHz Buy now & save $186. Connector: 1/8  (3.5mm) mini, Transmission Band: UHF, Type: Transmitters

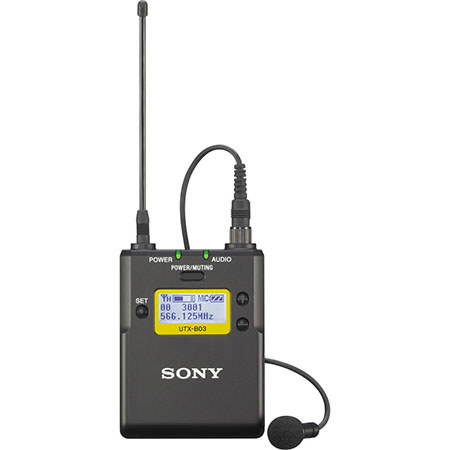

The Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter (14/25: 470 to 542MHz) features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, infrared synchronization between transmitter and receiver, a Mic/Line switchable input and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG (electronic news gathering), documentary work, talk shows, conferences and more. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The transmitter and receiver can be linked to an available transmission frequency via infrared. An LCD display provides channel and frequency information, battery life, RF level, audio status and accumulated operating time. For power, the transmitter operates on two AA batteries for up to 8 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge.The unit features a mic- and line-level switch for standard wired microphone- or line-level sources with adjustable attenuation. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long distance transmission. The transmitter is referred to as integrated digital because it utilizes DSP to compand the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio. The unit comes with an omnidirectional electret condenser lavalier microphone, a windscreen for the microphone, a microphone holder clip and a belt clip.  Digital Companding Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response. Automatic Channel Scanning Scans for available transmission channels and then syncs the transmitter to the receiver via infrared.  Frequency Coverage Provides up to 72 MHz of transmission bandwidth.  UWP Series / WL-800 Series Compatibility Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver.  USB Power Options Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge.  UHF Phase Locked Loop (PLL) Synthesized Frequencies Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver.  Tone Squelch Circuitry Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources.  Mic and Line Input Switch Enables switching between microphone- and line-level input sources.  Simultaneous Multi-Channel Operation Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups.  Selectable RF Output The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use.  Visual Display Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more. All-Metal Construction Features metal construction for durability.

Another great product from Sony!
I’ve been using a set of the wireless mics for a while now and I finally had a problem with my receiver and a PLL Error and I didn’t have time to send mine in for repair so I purchased another set only a couple days before my next gig and Adorama came through for me again! The microphones arrived in time for me to set them up and double check them before I left for my shoot!
 Thank you Adorama and Sony!!

2 things I can always rely on, Sony and Adorama!

The Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter is a nice and discreet way to record audio for weddings, ENG, news broadcast, and event coverage. The bodypack can be worn on a belt buckle (with the included clip) or in a soft-pouch (not included), or even just placed inside a pocket.

This particular unit uses UHF TV channels 14-25 in the 470 - 542mhz frequency band range for interference free capture/recording of audio via the included lavalier mic. The included Sony lavalier mic is discreet and small enough to be worn on shirt collars or on a tie with the included mic clip. It also comes with a small foam windshield.

The audio trasmitted via this bodypack/mic combo is clear and crisp and with the multitude of available frequencies you can select will almost guarantee you'll find a channel free and clear of any interruptions or drop-outs. You can also save up to 10 of your favorite frequencies for quick selection in the case your current channel is receiving any interference.

The bodypack comes with a comprehensive LED backlighted LCD display for easy readability indoors or out and quick selection and scroll through of the options menu. It is also compatible with any 3.5mm (1/8') recording microphone. The bodypack takes two AA alkaline batteries for about 6 hours of continuous use. Two AA lithium batteries can be used for up to 15 hours of continuous use. Additionally, you may also use rechargeable NiMH AA batteries and also charge them directly via this device's built-in micro-USB connector. You can choose between which battery type you are using via the MENU button; thus enabling the UTX-B03 to recognize what type of battery you are using: Alkaline, Lithium, or rechargeable NiMH.

The transmitter transmits at either 5mW output power for close-range indoor multi-channel use or 30mW high output power for outdoor and more long-range usage. All this is housed in a study and attractive all-metal casing which makes it very durable and ideal for use in rougher climate and tough environments.

Overall, I love the ease of use and wonderful sound quality offered by this unit and I give it a high recommendation.
