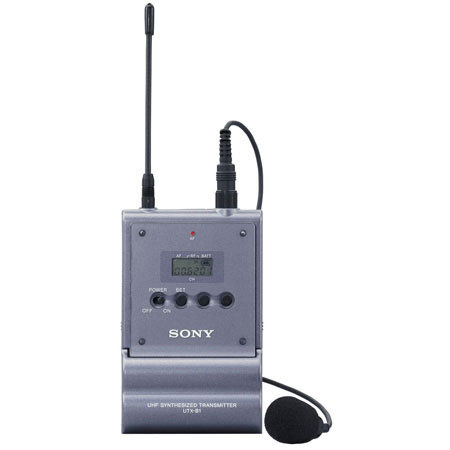

Sony UWP Series Bodypack Transmitter with Omni- Directional Lavalier Mic for the UWP-C1 Wireless System, Channels 62 to 65.

The UWP series compact and lightweight bodypack transmitter comes supplied with an omni-directional lavalier microphone. The UTX-B1C 62/64 operates on UHF TV channels 62,63,64 and 65. This bodypack transmitter (with omni lav mic) is ideally suited for news gathering, interviews, talk shows and conferences.

PLL synthes ized system:
Key to achieving stable transmission & reception is the use of a stable carrier signal to avoid interference with other frequency channels & to allow the selection of a preferred channel from multiple frequencies. The UWP se ries achieves this by using a UHF Phase Locked Loop frequency synthesized system , which provides the use of accurate carrier signal frequencies.

This s ystem is used in both the transmitter & tuners, so that a stable carrier is gene rated at the transmitter & accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of 125 kHz .

Space diversity reception system:
In general, wireless micropho ne transmission systems can be subject to reception interruptions (signal dropou t), but the UWP series reduces this to a minimum. By utilizing a space diversity reception system, it achieves stable transmission by using dual-antenna inputs/ reception circuits that receive signals over 2 different paths & automatically s electing the stronger RF signal for output. The space diversity reception system is adopted in all UWP tuners. In addition, the antennas of the portable & 1/2 rack size tuners each allow for angle adjustments, helping to further eliminate signal drop out.

Tone squelch circuitry:
When operating a wireless microphone system, it is essential that the tuner not pick up carrier signals transmitted from other systems. In order to avoid this, the UWP series transmitters transmit a 32 kHz pilot-tone signal along with the audio signal. The squelch circuit of the UWP series tuners recognizes this tone signal, & will output the audio signal only when this tone signal is received.

This function virtually prevents the output of unwanted signals or noise from other signal transmissions in the air, as well as the RF noise & popping noise that occur when the transmitter is powered on or off.

Pre-programmed operating frequencies:
The transmitters & tuners included in the UWP series incorporate pre-programmed frequencies that meet the wireless-communications regulations of each country. The UWP series operates within the following frequency ranges: (62/64) 758 MHz to 782 MHz OR (66/68) 782 MHz to 806 MHz (each model provides 188 selectable frequencies).

Simultaneous multi-channel operation:
The UWP series allows simultaneous operation of up to 16 wireless microphones. Optimum combinations of practically tested, intermodulation-free frequencies are stored in the UWP tuners. By using the pre-programmed frequency groups, users can easily choose intermod-free frequencies.
