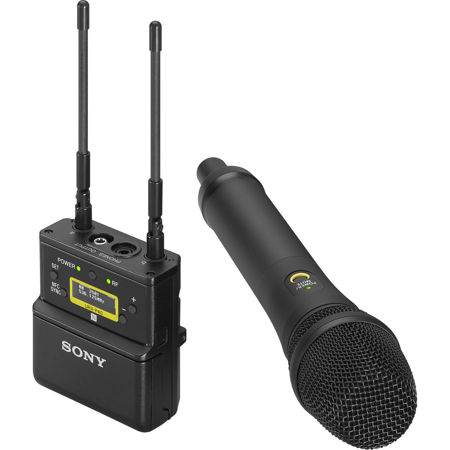

Sony UWP-D22 Camera-Mount Wireless Cardioid Handheld Microphone System, 25UC: 536 to 608MHz

SKU: SOUWPD2225 MFR: UWP-D22/25
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sony wireless microphone system for clear sound.
  • Enjoy freedom of movement with a reliable wireless range, perfect for interviews and film.
  • The UWP-D22 handheld microphone delivers broadcast quality sound for professional results.
  • Achieve superior sound quality with easy setup, ideal for videography and content creation.
  • Long battery life ensures the wireless camera microphone is ready for extended shoots.
  • Rugged and reliable, this wireless microphone is built for durability in any recording setting.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MATTHEW D : Nice Quality

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony UWP-D22 Specifications

URX-P40

URX-P40

Jump to...
  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Reception Type

    True diversity method

  • Antenna Type

    1/4 Lambda wavelength wire antenna (angle-adjustable)

  • Carrier Frequency

    25UC : 536.125MHz to 607.875MHz (UHF-TV channels 25 to 36)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60dB (1kHz sine wave, 5kHz modulation)

  • Distortion (T.H.D)

    0.9% or less (1kHz sine wave, 5kHz modulation)

  • Audio Delay

    Approx. 0.35 ms (analog output)
    Approx. 0.24 ms (digital output)

  • Audio Output Connector

    3.5mm diameter 3-pole locking mini jack, external connection

  • Audio Output Level

    -60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
    -20 dBFS (external connection, digital output, 0dB audio output level)
    -50 dBFS (external connection, analog output, 0dB audio output level)

  • Analog Audio Output Adjustment Range

    -12dB to +12dB (3dB step)

  • Headphone Output Connector

    3.5mm diameter mini jack

  • Headphone Output Level

    Max. 10mW (16 Ohms)

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery Life

    Approx. six hours
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F) DISPLAY MODE set to AUTO OFF

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

UTX-M40

Jump to...
  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Antenna Type

    1/4 Lambda wavelength wire antenna

  • Carrier Frequency

    25UC : 536.125MHz to 607.875MHz (UHF-TV channels 25 to 36)

  • RF Output Power

    30mW/5mW selectable

  • Capsule Type

    Dynamic

  • Directivity

    Uni-directional

  • Reference Audio Input Level

    -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

  • Maximum Audio Input Level

    151 dB SPL (21 dB attenuation, using supplied microphone unit)

  • Audio Attenuator Adjustment Range

    0 dB to 21 dB (3 dB steps)

  • Frequency Response

    70 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz sine wave input)
    102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
    96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery life

    Approx. 8 hours with output power of 30 mW
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F)

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

General

Jump to...
  • Dimensions

    URX-P40 (WxHxD): 63 x 70 x 31mm (2.48 x 2.76 x 1.22") (excluding antenna)
    UTX-M40 (Dia.xL) : 48 x 258mm (1.89 x 10.16")

  • Weight

    URX-P40: Approx. 131g (4.62 oz) (excluding batteries)
    UTX-M40: Approx. 255g (8.99 oz) (excluding batteries)

  • UPC Code

    027242928619

Models
Sony UWP-D22 Camera-Mount Cardioid Handheld Mic System, 25UC: 536 to 608MHz
$599.99

Special Order

Generally ships in 7-14 days, subject to availability

Sony UWP-D21 Camera-Mount Omni Lavalier Microphone System, 25UC: 536 to 608MHz
$599.99

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Connector1/8" TRS Locking1/8" TRS Locking1/8" TRS Locking
Frequency536-608 MHz536-608 MHz536-608 MHz
Signal TypeAnalogAnalog, DigitalAnalog
Stereo / MonoMonoMonoMono

About Sony UWP-D22

Let the UWP-D22 Camera-Mount Wireless Cardioid Handheld Microphone System, operating at a frequency range of 536 to 608MHz, revolutionize your audio capture experience. As high-resolution content becomes the norm in the video production industry, this system is designed to meet the increasing demand for superior audio quality. It's an ideal solution for content creators who need to capture high-quality audio swiftly and reliably, even with limited resources.

This UWP-D22 wireless microphone package includes the UTX-M40 handheld microphone and the URX-P40 receiver, along with essential accessories. It's perfect for a wide range of applications, including electronic news gathering (ENG), electronic field production (EFP), documentaries, and weddings.

The system boasts advanced digital audio processing technology by Sony, ensuring high-quality sound with improved transient response performance. The optional digital audio interface allows for direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor. This bypasses A/D and D/A conversion stages, further enhancing sound quality.

Seamless integration with compatible Sony camcorders is possible with the SMAD-P5 Multi Interface shoe adaptor. This feature displays vital audio information such as RF level meter, audio mute status, and transmitter low battery alert in the camera's viewfinder. The wireless receiver can also receive power from the camera, enabling synchronized power on/off between the camera and receiver for efficient power management.

The UWP-D22 system also features Sony's uniquely user-friendly NFC SYNC feature for quick, intuitive secure channel setting between transmitter and receiver. Its light, compact design ensures superior mobility, making it an ideal partner for small camcorders and interchangeable lens digital cameras. Experience the convenience and quality of the UWP-D22 Camera-Mount Wireless Cardioid Handheld Microphone System, designed to meet the demands of today's high-resolution content creation.

Sony UWP-D22 Features

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-M40 transmitter from URX-P03, URX-P03D and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Interchangeable head for wide choice of microphone capsules
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Channel memory for fast switching between receiver frequencies for two transmitter operation
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply (URX-P40 only)
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sony wireless microphone system for clear sound.
  • Enjoy freedom of movement with a reliable wireless range, perfect for interviews and film.
  • The UWP-D22 handheld microphone delivers broadcast quality sound for professional results.
  • Achieve superior sound quality with easy setup, ideal for videography and content creation.
  • Long battery life ensures the wireless camera microphone is ready for extended shoots.
  • Rugged and reliable, this wireless microphone is built for durability in any recording setting.

What's in the box:

  • Sony URX-P40 Camera-Mount Wireless Receiver
  • UTX-M40 Wireless Handheld Cardioid Microphone Transmitter
  • Mic Holder
  • Belt Clip
  • SMAD-P4 Shoemount Adapter for URX-P40 Receiver
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable
  • Sony 1 Year Warranty
