Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 14UC: 470 to 542MHz
See all Sony items

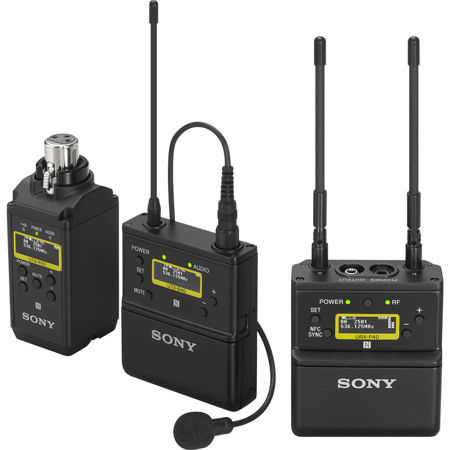

Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 14UC: 470 to 542MHz

SKU: SOUWPD2614 MFR: UWP-D26/14
Be the first to review this itemAsk a Question
$774.90
$875.00
Save: $100.1 (11%)
OR
$130/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sony wireless microphone system, perfect for professional use.
  • Enjoy crystal-clear sound and low latency with Sony's advanced digital audio processing technology.
  • Expand your wireless range; this camera-mount microphone system operates between 470 to 542MHz.
  • The UWP-D26 combo includes bodypack & plug-on transmitters for versatile wireless configurations.
  • Get approximately 6 hours of battery life, ensuring reliable performance for extended shoots.
  • Easy setup for cameras; this wireless microphone features a shoe-mount adapter for quick mounting.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PAUL S : I have used these on a video project before, and they have been very stable lav mics

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Sony UWP-D26 Specifications

URX-P40

URX-P40

Jump to...

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Reception Type

    True diversity method

  • Antenna Type

    1/4 Lambda wavelength wire antenna (angle-adjustable)

  • Carrier Frequency

    14UC : 470.125MHz to 541.875MHz (UHF-TV channels 14 to 25)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60dB (1kHz sine wave, 5kHz modulation)

  • Distortion (T.H.D)

    0.9% or less (1kHz sine wave, 5kHz modulation)

  • Audio Delay

    Approx. 0.35 ms (analog output)
    Approx. 0.24 ms (digital output)

  • Audio Output Connector

    3.5mm diameter 3-pole locking mini jack, external connection

  • Audio Output Level

    -60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
    -20 dBFS (external connection, digital output, 0dB audio output level)
    -50 dBFS (external connection, analog output, 0dB audio output level)

  • Analog Audio Output Adjustment Range

    -12dB to +12dB (3dB step)

  • Headphone Output Connector

    3.5mm diameter mini jack

  • Headphone Output Level

    Max. 10mW (16 Ohms)

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery Life

    Approx. six hours
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F) DISPLAY MODE set to AUTO OFF

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

UTX-B40

Jump to...

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Antenna Type

    1/4 Lambda wavelength wire antenna

  • Carrier Frequency

    14UC : 470.125MHz to 541.875MHz (UHF-TV channels 14 to 25)

  • RF Output Power

    30mW/5mW selectable

  • Capsule Type

    Electret condenser

  • Directivity

    Omni-directional

  • Input Connector

    3.5mm diameter 3-pole locking mini jack

  • Reference Audio Input Level

    -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
    +4 dBu (LINE input)

  • Audio Attenuator Adjustment Range

    0 dB to 27 dB (3dB steps)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz input)
    102 dB (GAIN MODE set to AUTO GAIN, max.)
    96 dB (GAIN MODE set to NORMAL, max.)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery life

    Approx. 8 hours with output power of 30 mW
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F)

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

UTX-P40

Jump to...

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Carrier Frequency

    14UC : 470.125MHz to 541.875MHz (UHF-TV channels 14 to 25)

  • RF Output Power

    40 mW/5 mW selectable

  • Input Connector

    XLR-3-11C type (female)

  • Reference Audio Input Level

    -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)

  • Audio Attenuator Adjustment Range

    0 dB to 48 dB (3 dB steps)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz input)
    102 dB (GAIN MODE set to AUTO GAIN, max.)
    96 dB (GAIN MODE set to NORMAL, max.)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Battery Life

    During +48V OFF: Approx. 7 hours with output power of 40 mW
    During +48V ON and ECM-673 connection: Approx. 6 hours with output power of 40 mW (Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F))

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

General

Jump to...

  • Dimensions (WxHxD)

    URX-P40: 63 x 70 x 31mm (2.48 x 2.76 x 1.22") (excluding antenna)
    UTX-B40: 63 x 73 x 19mm (2.48 x 2.87 x 0.75") (excluding antenna)
    UTX-P40: 38 x 98 x 38mm (1.50 x 3.86 x 1.50") (including the audio input connector)

  • Weight

    URX-P40: Approx. 131g (4.62 oz) (excluding batteries)
    UTX-B40: Approx. 83g (2.93 oz) (excluding batteries)
    UTX-P40: Approx. 139 g (4.9 oz) (excluding batteries)

Other

Jump to...

  • UPC Code

    027242928626

Models
Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 14UC: 470 to 542MHz

Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 14UC: 470 to 542MHz

SKU: SOUWPD2614

MFR: UWP-D26/14

$774.90

$875.00

Save:$100.10 (11%)

In Stock

Sony UWP-D22 Camera-Mount Cardioid Handheld Mic System, 14UC: 470 to 542MHz

Sony UWP-D22 Camera-Mount Cardioid Handheld Mic System, 14UC: 470 to 542MHz

SKU: SOUWPD2214

MFR: UWP-D22/14

$599.99

Special Order

Generally ships in 7-14 days, subject to availability

Sony UTX-B40 Bodypack Transmitter with Omni Lavalier Mic, 14UC: 470 to 542MHz

Sony UTX-B40 Bodypack Transmitter with Omni Lavalier Mic, 14UC: 470 to 542MHz

SKU: SOUTXB4014

MFR: UTX-B40/14

$380.00

In Stock

Component Type--Transmitter
Connector1/8" TRS Locking1/8" TRS Locking1/8" TRS Locking
Frequency470-542 MHz470-542 MHz470-542 MHz
Kit StyleBase--
Signal TypeDigitalDigitalAnalog
Stereo / MonoMonoMono-

About Sony UWP-D26

Before diving into the world of high-resolution video production, consider the Sony UWP-D26 Camera-Mount Wireless Combo Microphone System. This innovative system is designed to meet the increasing demand for superior audio quality in the digital content creation industry.

The UWP-D26 system is a versatile and portable solution for capturing high-quality audio quickly and reliably, even with limited resources. It's an ideal choice for a range of applications, including electronic news gathering (ENG), electronic field production (EFP), documentary filming, and wedding videography.

This durable system includes the UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter, and URX-P40 receiver, along with a selection of useful accessories. It boasts advanced digital audio processing technology by Sony, ensuring high-quality sound with improved transient response performance.

The UWP-D26 system also offers a new optional digital audio interface for direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras. This feature bypasses A/D and D/A conversion stages, further enhancing sound quality.

Seamless integration with compatible Sony camcorders is another key feature of this system. When used with the SMAD-P5 Multi Interface shoe adaptor, audio information such as RF level meter, audio mute status, and transmitter low battery alert are displayed in the camera's viewfinder. The wireless receiver can also receive power from the camera, enabling synchronized power on/off between camera and receiver for efficient power management.

Sony's unique NFC SYNC feature allows for quick, intuitive secure channel setting between transmitter and receiver. The light, compact design of the receiver makes it an ideal partner for small camcorders and interchangeable lens digital cameras, ensuring superior mobility for news, documentaries, weddings, and remote production.

In summary, the Sony UWP-D26 Camera-Mount Wireless Combo Microphone System offers a high-quality, versatile, and portable solution for capturing superior audio in a wide range of video production settings.

Sony UWP-D26 Features

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 and UTX-P40 transmitters from URX-P03, URX-P03D and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line input
  • +48V power supply (plug-on transmitter)
  • Channel memory for fast switching between receiver frequencies for two transmitter operation
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply (URX-P40 only)
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)
  • Includes ECM-V1BMP lavalier microphone

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sony wireless microphone system, perfect for professional use.
  • Enjoy crystal-clear sound and low latency with Sony's advanced digital audio processing technology.
  • Expand your wireless range; this camera-mount microphone system operates between 470 to 542MHz.
  • The UWP-D26 combo includes bodypack & plug-on transmitters for versatile wireless configurations.
  • Get approximately 6 hours of battery life, ensuring reliable performance for extended shoots.
  • Easy setup for cameras; this wireless microphone features a shoe-mount adapter for quick mounting.

What's in the box:

  • Sony URX-P40 Camera-Mount Wireless Receiver
  • UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
  • UTX-P40 Wireless Plug-On Transmitter
  • Mic Clip
  • Windscreen
  • 2x Belt Clips
  • SMAD-P4 Shoemount Adapter for URX-P40 Receiver
  • Soft Case for Plug-On
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable
  • Sony 1 Year Warranty
