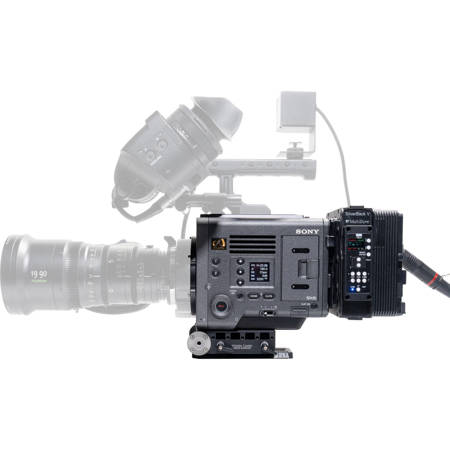

Sony VENICE 4K Live Bundle with MultiDyne SilverBack Fiber-Optic Adapter

SKU: SOVEN4KLIVE MFR: VENICE4KLIVE

Key Features

  • Capture stunning visuals with the Sony VENICE's impressive 6K resolution.
  • Achieve cinematic looks using the full-frame sensor and exceptional image quality.
  • Enjoy versatile shooting with PL Mount and E-mount options for diverse lenses.
  • Experience pristine audio input with XLR ports, ideal for professional sound recording.
  • Ensure stable footage using advanced stabilization, perfect for dynamic shots.
  • Streamline live broadcasts with the included MultiDyne SilverBack fiber-optic adapter.
See More Product Details
Special Order Item?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony VENICE 4K Live Bundle with MultiDyne SilverBack Fiber-Optic Adapter Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    RS-232 and RS-422 Data/Tally/GPIO Breakout Y-Cable for SilverBack-VB Base Station
    RCP Data Cable for SilverBack-VB Base Station
    Juice-48 External Power Supply
    2x RU Rack Mount Kits for HUT-CP Camera Units and Juice-48 Power Supplies

VENICE Camera: Image

Jump to...
  • Imaging Device

    35mm full size, single-chip CMOS image sensor

  • Imaging Device Pixel Count

    24.8 M (total)

  • Imaging Device Size

    36.2 x 24.1mm, 43.5mm Diagonal

  • Built-In ND Filters

    Clear, 0.3 (1/2), 0.6 (1/4), 0.9 (1/8), 1.2 (1/16), 1.5 (1/32), 1.8 (1/64) 2.1 (1/128), 2.4 (1/256)

  • ISO Sensitivity

    ISO 500, ISO 2500 (Dual Base ISO)

  • Lens Mount

    PL Mount
    E-mount (lever lock type, without supplied PL lens mount adapter)

  • Latitude

    15+ Stop

  • Select FPS

    4K 2.39:1 1-120FPS, 4K 17:9 1-110FPS, 3.8K 16:9 1-110 FPS
    4K 4:3 1-75 FPS, 4K 6:5 1-72 FPS
    6K 2.39:1 1-90 FPS, 6K 17:9/1.85:1 1-72 FPS, 5.7K 16:9 1-72 FPS
    6K 3:2 1-60 FPS

  • White Balance

    2000-15000 Kelvin and Green/Magenta adjust, AWB

  • Gamma Curve

    S-Log3

VENICE Camera: Recording

Jump to...
  • Recording Format (SxS Memory)

    XAVC 4K Class 480: 23.98p, 24p, 25p, 29.97p
    XAVC 4K Class 300: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    XAVC QFHD Class 480: 23.98p, 25p, 29.97p
    XAVC QFHD Class 300: 23.98p, 25p, 29.97p, 50p, 59.94p
    MPEG HD422 (1920 x 1080): 23.98p, 25p, 29.97p, 50i, 59.94i
    HD ProRes 422HQ: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 50i, 59.94i

  • Recording Format (SxS Memory) (Contd.)

    HD ProRes 422: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 50i, 59.94i
    HD ProRes 422 Proxy: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 50i, 59.94i
    HD ProRes 4444: 23.98p, 24p, 25p, 29.97p

  • Recording Format (X-OCN ST/LT)

    6K 3:2 (6048 x 4032): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    6K 2.39:1 (6048 x 2534): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    6K 1.85:1 (6054 x 3272): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    6K 17:9 (6054 x 3192): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    5.7K 16:9 (5674 x 3192): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    4K 6:5 (4096 x 3432): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

  • Recording Format (X-OCN ST/LT) (Contd.)

    4K 4:3 (4096 x 3024): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    4K 17:9 (4096 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    4K 2.39:1: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    3.8K 16:9 (3840 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

  • Recording Format (X-OCN XT)

    6K 3:2 (6048 x 4032): 23.98p, 24p, 25p, 29.97p
    6K 2.39:1 (6048 x 2534): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    6K 1.85:1 (6054 x 3272): 23.98p, 24p, 25p, 29.97p, 50p
    6K 17:9 (6054 x 3192): 23.98p, 24p, 25p, 29.97p, 50p
    5.7K 16:9 (5674 x 3192): 23.98p, 24p, 25p, 29.97p, 50p
    4K 6:5 (4096 x 3432): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

  • Recording Format (X-OCN XT) (Contd.)

    4K 4:3 (4096 x 3024): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    4K 17:9 (4096 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    4K 2.39:1: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    3.8K 16:9 (3840 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

  • Recording Format (RAW SQ)

    4K 17:9 (4096 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    3.8K 16:9 (3840 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

  • Recording Format (Audio)

    LPCM 4ch , 24-bit 48-kHz

VENICE Camera: Inputs/Outputs

Jump to...
  • DC Input

    XLR-type 4pin (male)

  • Battery DC Input

    Square-shaped 5pin connector

  • DC Output

    12 V: Hirose 4 pin x 1
    24 V: Fischer 3 pin x 2

  • SDI Output

    BNC x 4, (12G, 3G, 1.5G-SDI)

  • HD MONI Output

    BNC x 1 (1.5G-SDI)

  • HDMI Output

    Type A x 1

  • VF

    LEMO 26pin

  • Audio Input

    XLR-type 5 pin (female) x 1 (LINE / AES/EBU / MIC / MIC + 48 V selectable)

  • Timecode Input

    BNC x 1

  • Genlock Input

    BNC x 1

  • AUX

    LEMO 5 pin (female) x 1 (Timecode Output)

  • Remote

    8 pin x 1

  • Lens

    12 pin x 1

  • Lens Mount Hot Shoe

    4 pin x 2, conforming to Cooke /i Intelligent Electronic Lens System

  • Network

    RJ-45 type x 1, 10BASE-T, 100BASE-TX

  • USB

    USB host, type-A x 1

  • Headphone Output

    Stereo mini jack x 1

  • Speaker Output

    Monoral

  • Media type

    ExpressCard/34 slot x 2
    SD card slot x 1

VENICE Camera: General

Jump to...
  • Power Requirements

    DC12 V (11-17.0 V)
    DC24 V (22-32.0 V)

  • Operating Temperature

    32 to 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-2 to 60 Degree C)

  • Power Consumption

    Approx. 60 W

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions (H x W x L)

    6.25 x 5.87 x 9.37" (158 x 147 x 235mm) (excluding protrusions)

  • Weight

    Approx. 8 lbs 9.6 oz (3.9kg) (excluding handle, VF attachment, bottom cover)

MultiDyne SilverBack V: Display

Jump to...
  • Panel Type

    OLED

  • Touchscreen

    No

MultiDyne SilverBack V: Inputs / Outputs

Jump to...
  • Video I/O

    1x BNC (12G-SDI) Input
    1x BNC (6G-SDI) Input
    2x BNC (3G-SDI) Input
    1x BNC (HD-SDI) Input
    1x BNC (HD-SDI) Output

  • Audio I/O

    1x MDR26-F Line/Mic Input
    1x Mini-XLR 5-Pin Input/Output (Talkback)
    2x Mini-XLR 3-Pin Line/Mic Input

  • Fiber Connector

    1x SMPTE 304M

  • Viewfinder Interface

    1x BNC, 3G-SDI Input
    1x BNC, 3G-SDI Output

  • Ethernet Connector

    1x RJ45, 1GbE

  • Tally / GPIO

    1x DB-15

  • Serial In/Out

    1x DB-15

  • Other I/O

    2x D-Tap, 14 V, 5 A Output Each

MultiDyne SilverBack V: Power

Jump to...
  • DC Input Power

    54 VDC

  • Power Consumption

    30 W (Maximum)

  • Battery Plate Type

    V-Mount

MultiDyne SilverBack V: Environmental

Jump to...
  • Certifications

    RoHS

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Operating Humidity

    95%

MultiDyne SilverBack V: Physical

Jump to...
  • Color

    Black

  • Mounting

    1x V-Mount Plate

  • Dimensions

    7 x 6 x 4" (17.8 x 15.2 x 10.2cm)

DB15 to 8-Pin Hirose Data Cable

Jump to...
  • Compatibility

    MultiDyne Silverback V
    Sony VENICE

  • Connector 1

    1x DB-15

  • Connector 2

    1x 8-Pin Hirose

  • Cable Length

    16" (40.6cm)

4x4 Line Level Audio XLR Breakout Cable

Jump to...
  • Connector 1

    MDR

  • Connector 2

    4-Pin XLR Male and 4-Pin XLR Female

  • Length

    3.3' (1m)

Data/Tally/GPIO Breakout Y-Cable

Jump to...
  • Connector 1

    HD-15 Male

  • Connector 2

    1x Bare Wire
    2x DB9 Female

  • Length

    3.3' (1m)

8-Pin Hirose to DB-9 Data Cable

Jump to...
  • Compatibility

    Sony RCP
    MultiDyne SilverBack V Base Station

  • Connector 1

    1x 8-Pin Hirose

  • Connector 2

    1x DB-9

  • Color

    Black

  • Cable Length

    10' (3m)

JUICE-48 Portable Power Supply

Jump to...
  • Compatibility

    SilverBack Fiber Camera Adapters

  • Voltage Input

    90-264 VAC
    127-370 VDC

  • Input Frequency

    47-63 Hz

  • Power Output

    54 VDC

  • Power Current

    2.7 A

  • Rated Power

    180 W

  • Working Temperature

    -22 to 131 Degree F (-30 to 55 Degree C)

  • Relative Humidity

    20-90% (Non-Condensing)

  • Dimensions (W x H x D)

    10.5 x 5.7 x 3.5" (26.7 x 14.6 x 8.8cm)

  • Weight

    4.4 lbs (9.7kg)

2 RU Rack Mount Kit

Jump to...
  • Compatibility

    Mutidyne HUT- CP Camera Unit / JUICE- 48 Power Supply

  • Environmental Protection

    No

  • Mounting

    2x RU

56 Accessories for Sony VENICE 4K Live Bundle with MultiDyne SilverBack Fiber-Optic Adapter

  • All Accessories (56)
  • Digital Cinema Lenses (9)
  • Memory & Storage (5)
  • Batteries & Power Supply (6)
  • Lenses (9)
  • Viewfinders (1)
  • Media Read/Write Devices (2)
  • Rod Support Systems (1)
  • Baseplates (1)
  • Expansion Unit (1)
  • Microphones & Audio (5)
  • Bags & Cases (2)
  • Transmitters & Receivers (4)
  • Monitor & Recorder (4)
  • Flash & Lighting (6)
Models
Sony VENICE 4K Live Bundle with MultiDyne SilverBack Fiber-Optic Adapter

Special Order Item

This is a special order item that is Non Cancelable and Non Returnable. Card is charged upon placement of order.

Sony VENICE 6K Motion Picture Camera Base Kit for Education

Special Order Item

This is a special order item that is Non Cancelable and Non Returnable. Card is charged upon placement of order.

Sony VENICE 6K Motion Picture Camera Base Kit w/1TB Memory Card for Education

Special Order Item

This is a special order item that is Non Cancelable and Non Returnable. Card is charged upon placement of order.

Special FeaturesGenlockable, Interchangeable Lens, Time Code I/O, XLR Mic InputGenlockable, Interchangeable Lens, Time Code I/O, XLR Mic InputGenlockable, Interchangeable Lens, Time Code I/O, XLR Mic Input
Resolution6K6K6K
Kit StyleLive Production BundleBaseWith Memory Cards
ConfigurationBody & KitBody & KitBody & Kit
Sensor TypeCMOSCMOSCMOS
Sensor SizeFull FrameFull FrameFull Frame
Lens IncludedWithout LensWithout LensWithout Lens
Lens MountPL Mount, Sony FEPL Mount, Sony FEPL Mount, Sony FE

About Sony VENICE 4K Live Bundle with MultiDyne SilverBack Fiber-Optic Adapter

Emotion in Every Frame

Sony proudly introduces the next generation motion picture camera system, forward thinking to large format production, the VENICE.

VENICE features a newly developed full-frame image sensor. This camera has been created based on significant feedback from film industry professionals.

Regardless of any changes in technology or economy, our mission remains the same: to satisfy the ever-increasing demands of creative minds. Sony is committed to further elevating image quality and improving the visual experience so that filmmaker and audience can feel emotion in every frame.

With this in mind, the CineAlta logo symbolizes ’infinity’, which can also be thought of as ‘unlimited creative possibility’ and ‘endless pursuit of perfecting technology’.

36 x 24-mm full-frame sensor for cinema

VENICE is equipped with a 36 x 24-mm full-frame image sensor designed specifically for high end cinematography, and can capture images up to a maximum resolution of 6048 x 4032. By switching imager modes, VENICE can natively support Super35 24.3 x 18.0 mm, 4096 x 3024 resolution (equivalent to 4-perforation motion picture film) and Super35 24.3 x 12.8 mm, 4096 x 2160 resolution (equivalent to 3-perforation motion picture film). In other words, VENICE’s new full-frame sensor can capture in almost any format, including full 18 mm-height Super35 anamorphic and spherical and full-frame 24 mm-height anamorphic and spherical. Almost any aspect ratio can be conjured up: 1.85:1, 2.39:1, 17:9, the list goes on in full-frame or Super35.

With VENICE, Sony is giving users the option to customize their camera by only enabling the features as needed, according to individual production requirements. Licenses are available to expand the camera’s capabilities, including 4K anamorphic and 6K full-frame.

SOVEN4KLIVE

Creative freedom

Full-frame full-width 36 mm 6K

In full-frame, you can use the full 6048 pixel width of the sensor for widescreen spherical 2.39:1 or Large Format Scope. Full-Frame can be used creatively in a number of ways – for example, to allow for extra shallow depth of field or super-wide shooting.

Super35 full height 2.0x squeeze anamorphic

For anamorphic shooting and production, Super35 full height 2 x squeeze anamorphic is supported.

Super35 17:9 and 16:9

These popular imager sizes are natively supported by VENICE. Current Super 35 mm PL mount lenses can be used.

SOVEN4KLIVE

The IMAX Experience® with VENICE

The VENICE Digital Motion Picture Camera was created out of intense dialog with cinematographers to capture stunning visuals in almost any format, including full-frame 36 x 24 mm, Super35 and Anamorphic. It is also certified for the ‘Filmed in IMAX’ program due to its stunning imaging quality and integration with IMAX proprietary post-production workflow process. The IMAX program provides best practice guidelines to take advantage of each cameras’ highest possible capture qualities and settings in order to maximize The IMAX Experience®—including IMAX’s exclusive expanded aspect ratio.

SOVEN4KLIVE

Dual Base ISO

VENICE has a base ISO of 500 to provide the optimal dynamic range for typical cinematography applications with on-set lighting. A secondary High Base ISO of 2500 excels in low-light High Dynamic Range capture, with an exposure latitude from 6 stops over to 9 stops under 18% Middle Gray, for a total of 15 stops. High Base ISO 2500 is ideal whenever you’re using slow lenses or shooting dimly-lit environments. Combining ISO2500 with VENICE’s internal eight-step Optical ND filter system offers the ability to emulate different ISOs while maintaining maximum latitude of +6 and -9 stops, enabling you to use VENICE as an ISO1250 camera.

SOVEN4KLIVE

ISO 500

SOVEN4KLIVE

ISO 2500

Lens mount flexibility

SOVEN4KLIVE

PL lens mount

VENICE comes with the industry-standard PL lens mount. It is compatible with all Super35 and full-frame PL lenses, spherical and anamorphic. The lens mount includes contacts that support Cooke/i Technology. Lens information is recorded as metadata frame by frame.

SOVEN4KLIVE

Lever lock type e-mount

Choose from the growing eco-system of E-mount lenses and, via third-party adaptors, the world of SLR and rangefinder lenses. Lever lock operation provides added security with large lenses, and in most cases lens support rigs don’t need to be removed when changing lens. Switching from PL Mount to E-mount can be done by simply removing six hex screws, while E-mount lens iris operation is controllable via an assignable button.

6K high resolution

The stunning full 6K resolution of the camera can be recorded directly in X-OCN (16-bit eXtended tonal range Original Camera Negative) file format. Also, XAVC 4K can be captured onto SxS cards while still sampling from the full 6K resolution of the sensor.

SOVEN4KLIVE
SOVEN4KLIVE

Engineered to survive

VENICE’s chassis is engineered to be amazingly robust and has been rigorously tested in the harshest conditions. Its ventilation system is completely isolated from all electronic components to prevent ingress of dust, sand and splash. The silent-running fan can be cleaned or even swapped out on set quickly and easily.

World’s first 8-step mechanical ND Filters

VENICE is the world’s first camera of its class with a servo-controlled 8-step mechanical ND filter mechanism built into the camera chassis. It offers a massive ND of 0.3 (1/2 = 1 stop) to ND2.4 (1/256 = 8 stops) range that reduces time lost on set changing external filters. The ND filters also greatly increase VENICE’s flexibility when being controlled remotely on drones and cranes, or in an underwater housing.

SOVEN4KLIVE

Full-frame digital cinema camera with phenomenal color science and creative versatility.

Zero Down, No Interest, and Sony Makes Your First Payment
Now's the best time to get your hands on Sony Cinema products. For a limited time only, take advantage of zero percent financing for 48 months on VENICE and related accessories and peripherals to realize your creative vision with Sony.

Reliable partner for creativity
VENICE is a cinema camera created by and for the cinematographer. It's equipped with a newly developed full-frame image sensor meeting the needs of the film industry in pushing the boundaries of large format image capture with exceptional picture quality.

Beautiful image
Satisfied with the current condition With the wide latitude and gamut recorded by the VENICE, freedom of expression is significantly expanded in grading and based on established workflow.

Simple and intuitive
Usability and reliability of the camera is one of the major concerns for operators, especially in tough or time-critical filming conditions. With a user-friendly design, clear and simple menu navigation, and a highly durable, reliable construction, VENICE lets you simply concentrate on filming, and not the camera.

36x24-mm full-frame sensor for cinema
VENICE is equipped with a 36 x 24-mm full-frame image sensor designed specifically for high end cinematography, and can capture images up to a maximum resolution of 6048 x 4032. By switching imager modes, VENICE can natively support Super35 24.3 x 18.0 mm, 4096 x 3024 resolution (equivalent to 4-perforation motion picture film) and Super35 24.3 x 12.8 mm, 4096 x 2160 resolution (equivalent to 3-perforation motion picture film).

In other words, VENICE's new full-frame sensor can capture in almost any format, including full 18 mm-height Super35 anamorphic and spherical and full-frame 24 mm-height anamorphic and spherical. Almost any aspect ratio can be conjured up: 1.85:1, 2.39:1, 17:9, the list goes on in full-frame or Super35.

With VENICE, Sony is giving users the option to customize their camera by only enabling the features as needed, according to individual production requirements. Licenses are available to expand the camera's capabilities, including 4K anamorphic and 6K full-frame.

Creative freedom

Full-frame full-width 36 mm 6K
In full-frame, you can use the full 6048 pixel width of the sensor for widescreen spherical 2.39:1 or Large Format Scope. Full-Frame can be used creatively in a number of ways - for example, to allow for extra shallow depth of field or super-wide shooting.

Super35 full height 2.0x squeeze anamorphic
For anamorphic shooting and production, Super35 full height 2 x squeeze anamorphic is supported.

Super35 17:9 and 16:9
These popular imager sizes are natively supported by VENICE. Current Super 35 mm PL mount lenses can be used.

The IMAX Experience with VENICE
The VENICE Digital Motion Picture Camera was created out of intense dialog with cinematographers to capture stunning visuals in almost any format, including full-frame 36 x 24 mm, Super35 and Anamorphic. It is also certified for the 'Filmed in IMAX' program due to its stunning imaging quality and integration with IMAX proprietary post-production workflow process. The IMAX program provides best practice guidelines to take advantage of each cameras' highest possible capture qualities and settings in order to maximize The IMAX Experience-including IMAX's exclusive expanded aspect ratio.

High Frame Rate
The optional High Frame Rate license allows VENICE to shoot at speeds of up to 120fps at 4K 2.39:1, and 60fps at 6K 3:2 as well as up to 110fps at 4K 17:9, 90fps at 6K 2.39:1, 72fps at 6K 17:9, 72fps at 6K 1.85:1 and 75fps at 4K 4:3 with anamorphic license.

Fast shutter
VENICE's high-speed readout sensor minimizes the jello effect typical in CMOS sensors.

Phenomenal latitude
VENICE has an exceptional 15+ stops of latitude, with low noise for extraordinary performance in delivering phenomenal images in conditions from searing sunlight to almost no light. VENICE's real-world performance also excels at High Dynamic Range imaging and allows unprecedented creative freedom in grading.

More colors for more expression
VENICE can exceed Rec. 2020 color space. This means the color range is wider than DCI-P3 and can beautifully reproduce the true color of the scene in front of your lens. This also provides the broad palette in the grading suite using the established workflow of Sony's third-generation LOG gamma encoding (S-Log3) and ultra-wide color space.

Dual Base ISO
VENICE has a base ISO of 500 to provide the optimal dynamic range for typical cinematography applications with on-set lighting. A secondary High Base ISO of 2500 excels in low-light High Dynamic Range capture, with an exposure latitude from 6 stops over to 9 stops under 18% Middle Gray, for a total of 15 stops. High Base ISO 2500 is ideal whenever you're using slow lenses or shooting dimly-lit environments. Combining ISO2500 with VENICE's internal eight-step Optical ND filter system offers the ability to emulate different ISOs while maintaining maximum latitude of +6 and -9 stops, enabling you to use VENICE as an ISO1250 camera.

Anamorphic look
VENICE's support for anamorphic lenses combined with its ability to shoot 4:3 and 6:5 aspect ratio at a horizontal resolution of 4K allows the capture of breathtakingly beautiful images with stunning lens flare, bokeh and emotional impact.

6K high resolution
The stunning full 6K resolution of the camera can be recorded directly in X-OCN (16-bit eXtended tonal range Original Camera Negative) file format. Also, XAVC 4K can be captured onto SxS cards while still sampling from the full 6K resolution of the sensor.

Engineered to survive
VENICE's chassis is engineered to be amazingly robust and has been rigorously tested in the harshest conditions. Its ventilation system is completely isolated from all electronic components to prevent ingress of dust, sand and splash. The silent-running fan can be cleaned or even swapped out on set quickly and easily.

World's first 8-step mechanical ND Filters
VENICE is the world's first camera of its class with a servo-controlled 8-step mechanical ND filter mechanism built into the camera chassis. It offers a massive ND of 0.3 (1/2 = 1 stop) to ND2.4 (1/256 = 8 stops) range that reduces time lost on set changing external filters. The ND filters also greatly increase VENICE's flexibility when being controlled remotely on drones and cranes, or in an underwater housing.


- MultiDyne SilverBack V 4K Camera Back Transceiver -

Multipurpose Your 12G, 4K Camera
The SilverBack V provides a robust, full bandwidth fiber optic link between any 12G, Quad-Link or Dual-Link 4K camera and your truck, control room, or "video village" position. The system puts all of the signals needed for multi-camera 4K/UHDTV production onto a single tactical or SMPTE hybrid fiber cable, ensuring robust, trouble-free connectivity on any studio or remote production.

The fiber camera adapter can transport up to one 12G-SDI, two 6G-SDI, or four 3G-SDI signal paths from the camera to the Base Station, and one return path the other way. Full camera control is provided by the camera manufacturer's control panel via serial or a 10/100/GigE Ethernet path. Genlock, intercom, tally, and audio paths are also provided. Operate on a hybrid cable and provide power to the camera or use lightweight, robust tactical fiber and power the camera locally.

Integrated Camera Unit
The compact SilverBack V camera unit mounts to any 12G, Dual-Link, or Quad-Link 4K camera seamlessly, with no angles or sharp corners. The LCD display shows status and controls and is easy for the operator to see, but not intrusive.

When equipped with the integrated "Juice" option, no external power supplies are required; the rear battery plate can be used for back-up power.

Next Generation Base Station
The SilverBack V Base Station is a standard 2RU enclosure with LED status indicators for each signal, as well as a color LCD screen that intuitively displays system status and general health. The base station is available in single and dual-channel configurations. The unit also provides support for two standard widths (2 slots) openGear rear modules that can handle up to four cards.

MultiDyne Innovation
The SilverBack V's system design is modular so a system can be built with various types, amounts, and directions of I/O's. The SilverBack V incorporates the proven connectivity solutions of MultiDyne's decades of experience outfitting production environments for OB vans and production control rooms to create a finely tuned solution for 4K/UHDTV multi-camera production.


- MultiDyne SilverBack-VB Base Station 12G/3G Transceiver -
The SilverBack-VB system has been engineered to bring a lower cost and smaller footprint solution to a wider range of camera platforms and applications. The SilverBack-VB provides a robust, full bandwidth fiber optic link between any 12G 4K or HD camera and your truck, control room, or "video village" position. The system puts all of the signals needed for multicamera 4K/UHDTV production onto a single tactical or SMPTE hybrid fiber cable, ensuring robust, trouble-free connectivity on any studio or remote production.

The system can transport up to one 12G-SDI and one 3G-SDI signal bi-directionally between the camera and Base Station. Full camera control is provided by the camera manufacturer's control panel via serial or a 10/100/GigE Ethernet path.

Sony VENICE 4K Live Bundle with MultiDyne SilverBack Fiber-Optic Adapter Features

  • VENICE Motion Picture Camera
  • New 36x24mm Full Frame CMOS Image Sensor
  • Supports 15+ stops of latitude
  • Wide Color Space Capture
  • Dual Base ISO
  • Compact Body and Intuitive Operation
  • Engineered to Survive
  • Modular Design
  • 8-Position Optical ND Filter
  • Intuitive and Familiar On-Set Operation
  • Paint Control from RM/RCP and this Unit
  • High Frame Rate (HFR) Shooting
  • Remote Control Unit Support
  • Various Recording Formats
  • Imager Block Extension
  • MultiDyne SilverBack V 4K Camera Back Transceiver
  • All Signals on ONE Cable
  • Up to 1x 12G, 2x 6G, or 4x 3G Program & Bi-Directional 3G-SDI
  • 20+Km Operation
  • Universal Intercom Interface With IFB/PGM Inject
  • 2 Mic Inputs With Phantom and Pre-amps
  • Anton-Bauer or "V-mount" Battery Option
  • Integrated Tally Indicator
  • Camera RCP Control
  • 1 Additional Data Path (232/422)
  • Optical Connector on Integrated Swivel
  • Top & Bottom Dovetail Plates with 1/4-20 & 3/8-16 Taps for Mounting Accessories
  • Tally/GPIO Cable
  • Optional Tally Light Accessory
  • Rugged Lightweight, Low-profile Design
  • Designed & Built in New York
  • MultiDyne SilverBack-VB Base Station 12G/3G Transceiver
  • All Signals on ONE Cable
  • Bi-Directional 12G-SDI & BiDirectional 3G-SDI
  • 10+Km Operation
  • 4-Wire Intercom Interface
  • Anton-Bauer or "V-mount" Battery Option
  • Integrated Tally Indicator
  • Camera RCP Control
  • 1 Additional Data Path (232/422)
  • Optical Connector on Integrated Swivel
  • Top & Bottom Dovetail Plates with 1/4-20 & 3/8-16 Taps for Mounting Accessories
  • Optional Tally/GPIO Cable
  • Optional Tally Light Accessory
  • Rugged Lightweight, Low-profile Design
  • Designed & Built in New York

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the Sony VENICE's impressive 6K resolution.
  • Achieve cinematic looks using the full-frame sensor and exceptional image quality.
  • Enjoy versatile shooting with PL Mount and E-mount options for diverse lenses.
  • Experience pristine audio input with XLR ports, ideal for professional sound recording.
  • Ensure stable footage using advanced stabilization, perfect for dynamic shots.
  • Streamline live broadcasts with the included MultiDyne SilverBack fiber-optic adapter.

What's in the box:

  • Sony VENICE Motion Picture Camera
  • PL Mount Adapter
  • VF Attachment
  • VF Cable
  • Handle
  • Circular Shim
  • 15x 1/3 Arc Shim
  • Lens Mount Cover
  • MultiDyne SilverBack V 4K Camera Back Transceiver
  • MultiDyne SilverBack-VB Base Station 12G/3G Transceiver
  • 18" XLR Breakout
  • Camera Data Cable
  • Cable Assembly Packages
  • Tally Light
  • Universal Rack Kit
  • 1m XLR Breakout Cable for 4x4 Analog Audio
  • (See Specification Section for Additional Included Items)
  • Sony 1 Year Limited Warranty
