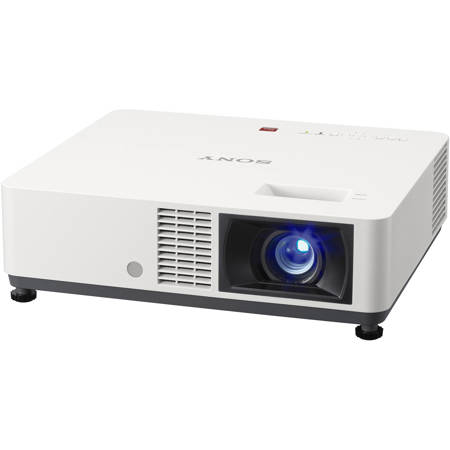

Sony VPL-CWZ10 WXGA Laser Light Source 3LCD Projector, 1280x800, 5000 Lumens

SKU: SOVPLCWZ10

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony VPL-CWZ10 Specifications

Display System

Display System

Jump to...
  • Display system

    3 LCD system

Display Device

Jump to...
  • Size of effective display area

    0.64" (16.3mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Projection Lens

Jump to...
  • Number of pixels

    3,072,000 (1280 x 800 x 3) pixels

  • Focus

    Manual

  • Zoom Powered/Manual

    Manual

  • Zoom - Ratio

    Approx. x 1.6

  • Throw ratio

    1.29:1 to 2.07:1

  • Lens shift

    Lens Offset Vertical +37%

Light Source

Jump to...
  • Type

    Laser diode

Filter Cleaning/Replacement Cycle

Jump to...
  • Filter cleaning / replacement cycle

    Standard mode: 1,000 H (cleaning) (Max.)

Screen Size

Jump to...
  • Screen size

    40 to 300" (1.02 to 7.62m)

Light Output

Jump to...
  • Mode

    Standard: 5,000 lm x2
    Standard (Center)5,200 lm x3

Color Light Output

Jump to...
  • Mode: Standard

    5,000 lm

Contrast Ratio

Jump to...
  • Contrast ratio

    Infinite : 1 (full white / full black)

Speaker

Jump to...
  • Speaker

    16 W (monaural)

Displayable Scanning Frequency

Jump to...
  • Horizontal

    15 kHz to 92 kHz

  • Vertical

    48 Hz to 92 Hz

Accepted Signal Resolution

Jump to...
  • Computer signal input

    Maximum signal resolution: 1920 x 1200 x4

  • Video signal input

    NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i
    The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p

Color System

Jump to...
  • Color System

    NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone Correction

Jump to...
  • Horizontal

    +/- 30 degrees

  • Vertical

    +/- 30 degrees

Input/Output

Jump to...
  • Input A

    RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
    Audio input connector: Stereo mini jack

  • Input B

    HDMI input connector: HDMI 19-pin, HDCP support
    Audio input connector: HDMI audio support

  • Input C

    HDMI input connector: HDMI 19-pin, HDCP support
    Audio input connector: HDMI audio support

  • Video In

    Video input connector: Phono Jack
    Audio input connector: Shared with Input A

  • Output

    Audio output connector: Stereo mini jack

  • Remote

    D-sub 9-pin (male) / RS232C

  • LAN

    RJ45, 10BASE-T/100BASE-TX

  • USB

    TYPE-A (Only for FW upgrade)

Acoustic Noise

Jump to...
  • Lamp Mode: Standard / Middle / Low

    36 dB / 32 dB / 28 dB

Environmental

Jump to...
  • Operating temperature

    32 Degree F to 104 Degree F (0 Degree to 40 Degree C)

  • Operating humidity

    20 % to 80 % (no condensation)

  • Storage temperature

    14 Degree F to 140 Degree F (-10 Degree to +60 Degree C)

  • Storage humidity

    20 % to 80 % (no condensation)

Power Requirements

Jump to...
  • Power requirements

    AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz

Power Consumption

Jump to...
  • Standard Mode

    AC 100 V to 120 V, 342 W
    AC 220 V to 240 V, 326 W

  • Standby Mode

    AC 100 V to 120 V, 0.5 W (when "Standby mode" is set to "Low")
    AC 220 V to 240 V, 0.5 W (when "Standby mode" is set to "Low")

  • Networked Standby Mode

    AC 100 V to 120 V, 2 W ("Remote Start" is set to "On," when "Standby Mode" is set to "Low")
    15 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

    AC 220 V to 240 V, 2 W ("Remote Start" is set to "On," when "Standby Mode" is set to "Low")
    15 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

  • Standby Mode (Networked Standby Mode Act

    Approx. 10 Minutes

  • AC 100 V to 120 V

    1,167 BTU/h

  • AC 220 V to 240 V

    1112 BTU/h

Physical

Jump to...
  • Dimensions (W x H x D)

    Approx. 14.61 x 3.93 x 12.57" (371 x 100 x 319.3mm) (Without protrusions)

  • Weight

    Approx. 13 lbs (5.7kg)

  • UPC Code

    027242918917

1 Accessories for Sony VPL-CWZ10 WXGA Laser Light Source 3LCD Projector, 1280x800, 5000 Lumens

  • All Accessories (1)
  • Laptop Stand (1)

About Sony VPL-CWZ10

VPL-CWZ10
Enjoy brilliant images anywhere with these compact, easy-to-use, affordable 3LCD laser projectors that integrate seamlessly with today's networked AV environments.

Always exceptional images
The energy-efficient Z-Phosphor laser light source is teamed with Sony's acclaimed BrightEra 3LCD engine for crisply detailed images with high 5,000 lumen brightness and rich, stable colors. Equipped with the latest scaler chip, Full HD image quality is achieved ensuring all your content looks its best, whether it's PC presentations, video or signage.

Quick start, long-lasting laser
Switch on and start presenting without waiting for lamp warm-up. The advanced laser light source offers up to 20,000 hours operation without lamp exchange, reducing maintenance needs and lifetime running costs compared with traditional projectors.

Faster, fuss-free set-up
Save time with Intelligent Setting presets that instantly fine-tune brightness, cooling, color and other projector settings for great pictures in any environment.

Beautifully light and compact
Light, compact and easy to carry, the VPL-CWZ10 is the smallest projector in its class. The stylish design looks great in any space, with a flat top surface that blends in discreetly when the projector is ceiling-mounted.

Seamless AV integration
Integration's easy in today's AV environments. The VPL-CWZ10 partners brilliantly with leading networked control, monitoring and management systems such as Crestron Connected.

Features

Very high image quality
The long-lasting Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure bright, high-quality images with vivid, natural color reproduction.

Minimal maintenance
The laser light source offers up to 20,000 hours of operation without lamp exchange, reducing maintenance needs compared with traditional projectors. Near-zero maintenance is complemented by a range of energy-saving features that significantly drive down total lifetime ownership costs.

Consistent brightness
Experience consistent image brightness throughout the laser light source's 20,000 hours recommended lifespan.

Full HD resolution images
Equipped with the latest scaler chip, Full HD image quality is achieved ensuring all your content looks its best, whether it's PC presentations, video or signage.

Networked control and monitoring
The VPL-CWZ10 is ideal for integration in AV environments with leading control, monitoring and management systems such as Crestron Connected.

Stylish blend-in design
The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

Sony VPL-CWZ10 Features

  • Very high image quality
  • Minimal maintenance
  • Consistent brightness
  • Full HD resolution images
  • Networked control and monitoring
  • Stylish blend-in design

Key Features

  • Very high image quality
  • Minimal maintenance
  • Consistent brightness
  • Full HD resolution images
  • Networked control and monitoring
  • Stylish blend-in design

What's in the box:

  • VPL-CWZ10 WXGA Conference Room Projector
  • RM-PJ8 Remote Commander
  • Quick Reference Manual
  • Sony 1 Year Limited Warranty
