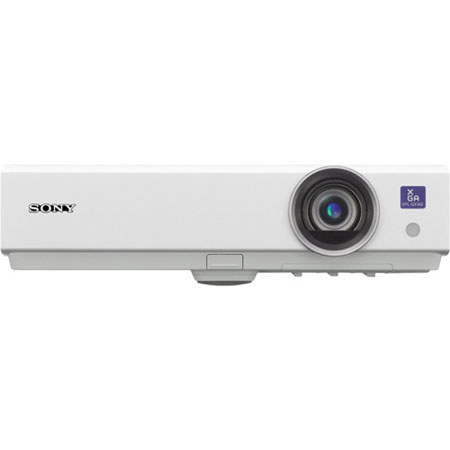

Sony VPL-DX142 XGA Bright Era 3LCD Mobile Projector, 1024x768, 3200 Lumens

SKU: SOVPLDX142

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony VPL-DX142 Specifications

  • Projection system

    3LCD system

  • Effective display size

    0.63" / 1.60cm, 3 plate panels, Aspect ratio 4:3

  • Effective picture elements

    2359296 pixels (1024 x 768 pixels, 3 plate panels)

  • Light source

    High-pressure mercury lamp, 210W type

  • Projected image size

    30" / 76.2cm to 300" / 762cm

  • Luminous flux(Brightness)

    3200 lm (when "Lamp Mode" is set to "High")

  • Speaker

    1W x 1 (monaural)

  • Applicable scanning frequency

    Horizontal: 15kHz to 92kHz, Vertical: 48Hz to 92Hz

  • Resolution

    When a computer signal is input: Maximum display resolution: 1600 x 1200 pixels (resize), Panel display resolution: 1024 x 768 pixels
    When a video signal is input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

  • Color system

    NTSC, PAL, SECAM, NTSC, PAL-M, PAL-N

  • Input A

    RGB/YPBPR input connector: Mini D-sub 15 pin female, G with sync/Y: 1 Vp-p +/- 2 dB, sync negative, 75 ohms terminated, RGB/PBPR: 0.7 Vp-p +/- 2 dB, 75 ohms terminated, Sync signal: TTL level high impedance, positive/negative
    Audio input connector: Stereo mini jack, rated input 500 mVrms, input impedance more than 47 kohms

  • Input B

    HDMI input connector: HDMI 19-pin, HDCP, HDMI audio support

  • Video

    Video input connector: Pin jack, 1 Vp-p +/- 2 dB, sync negative, 75 ohmes terminated
    Audio input connector: Shared with INPUT A

  • Operating temperature

    0 to 35 deg. C / 32 to 95 deg. F

  • Operating humidity

    20% to 80% (no condensation)

  • Storage temperature

    -10 to 60 deg. C / 14 to 140 deg. F

  • Storage humidity

    20% to 80% (no condensation)

  • Power requirements

    100V to 240V AC, 2.9 - 1.2 A, 50/60Hz

  • Power consumption

    100V to 120V AC: 290W
    220V to 240V AC: 277W

  • Standby power

    0.5W

  • Heat dissipation

    100V AC: 987BTU
    240V AC: 943BTU

  • Color Light Output

    3200 lumens (lamp mode: high), 2300 lumens (standard), 1900 lumens (low)

  • Light Output

    3200 lumens (lamp mode: high), 2300 lumens (standard), 1900 lumens (low)

  • Contrast Ratio

    3000:1

  • Lamp Life

    3000H(lamp mode: High) / 5000H(Standard) / 10000H(Low)

  • Projection Lens

    Approx. 1.3x manual zoom / Manual focus

  • Throw Ratio

    1.37 to 1.80:1

  • Dimensions (W x H x D)

    Approx. 12.4 x 3.43 x 9.18" / 31.50 x 8.71 x 23.32cm
    12.4 x 2.93 x 9.06" / 31.50 x 7.44 x 23.01cm (without projecting parts)

  • Weight

    Approx. 5.43lbs / 2.46kg

About Sony VPL-DX142

The VPL-DX142 is ideal for a range of business applications, especially small office and home office use. Designed with a sleek and stylish look, the flexible and compact new models also have the potential for use in the corporate, retail and education markets. It offers XGA/3200lumens projection and inherits convenient features for portable usage, including lightweight (5lbs, 7 oz.); Sony's "Off and Go" feature for removal immediately after use; auto keystone to reduce adjustment time of keystone distortion; and a carrying case. It also boasts an energy-efficient design and a focus on lower total cost of operation.

These include an auto lamp dimming function, Auto Mode (Auto Brightness Adjustment Function) and extended lamp life of up to approximately 10,000 hours (depending on the lamp mode selected). Convenient features and low operation cost design combined with great picture quality generated from Sony's Bright Era 3LCD panels, this projector is obviously a great fit for your space!

Sony VPL-DX142 Features

  • Up to 10000h expected lamp life
  • Simple interfaces including HDMI, RGB and Composite Video
  • Equipped with Bright Era 3LCD Panels
  • 12 bit 3D Digital Gamma Correction
  • Auto Lamp Dimming Function
  • Auto brightness adjustment function depending on the contents
  • Eco Mode for savings on energy
  • Carrying case
  • Closed Captioning

Key Features

  • Up to 10000h expected lamp life
  • Simple interfaces including HDMI, RGB & Composite Video
  • Equipped with Bright Era 3LCD Panels
  • 12 bit 3D Digital Gamma Correction
  • Auto Lamp Dimming Function
  • Auto brightness adjustment function depending on the contents

What's in the box:

  • Sony VPL-DX142 XGA Bright Era 3LCD Mobile Projector
  • RM-PJ8 Remote Commander
  • Size CR2025 Battery
  • AC Power Cord
  • HD15pin Cable
  • Operating Instructions (CD-ROM)
  • Quick Reference Manual
  • Carrying Case
  • Sony 3 Year Parts and Labor Limited Warranty
