3 LCD system
Effective display area: 0.75" / 19.05mm x 3 BrightEra LCD Panel, Aspect ratio: 16:10
3072000 (1280x800 x 3) pixels
Manual
Manual
Approx. x 1.6
1.10:1 to 1.79:1
Ultra high pressure mercury lamp
225W type
Lamp mode High: 4000 H
Lamp mode Standard: 6000 H
Lamp mode Low: 10000 H
10000 H (Max.)
30 to 300" / 76.20 to 762.00cm (measured diagonally)
4200 lm
3200 lm
2500 lm
3700:1
16W (monaural)
Horizontal: 15kHz to 92kHz
Vertical: 48Hz to 92Hz
Maximum display resolution: 1600x1200 dots
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60
Vertical: +/-20 degrees
24-languages (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungary, Greek)
Input A:
RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
Input B:
RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
Input C:
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
Input D:
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
S Video IN:S Video input connector: Mini DIN 4-pin
Video IN: Video input connector: Phono jack
Output:
Monitor output connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini
Remote: RS-232C connector: D-sub 9-pin (male)
LAN: RJ-45, 10BASE-T/100BASE-TX
USB: Type-A, Type-B
Microphone input: Mini Jack
29dB
0 to 40 deg. C / 32 to 104 deg. F
-10 to 60 deg. C / 14 to 140 deg. F
20-80% (no condensation)
20% to 80% (no condensation)
AC 100 V to 240 V, 3.4 A to 1.5 A, 50Hz / 60Hz
AC 100V to 120V: Lamp mode: High: 334W
AC 220V to 240V: Lamp mode: High: 322W
AC 100V to 120V: 0.5W (when "Standby mode" is set to "Low")
AC 220V to 240V: 0.5W (when "Standby mode" is set to "Low")
AC 100V to 120V:
5.3W (LAN)
5.7W (optional WLAN module)
6.0W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
AC 220V to 240V:
5.5W (LAN)
6.0W (optional WLAN module)
6.3W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Approx. 10 Minutes
Press the MENU button, then select [Connection/Power]
WLAN Settings
WLAN Connection
Select On or Off
AC 100V to 120V: 1139 BTU/h
AC 220V to 240V: 1099 BTU/h
365 x 96.2 x 252mm / 14.37 x 3.79 x 9.92" (Approx. )
4.1kg / 9.04lbs (Aprox. )
4548736004184

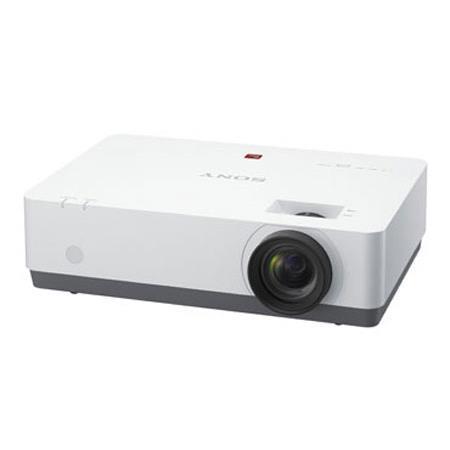

Present clear, bright images in larger rooms, plus flexible connectivity and low running costs The VPL-EW345 projector is ideal for mid-sized and larger classrooms and meeting rooms. Quiet, compact and powerful, it delivers bright, detail-packed WXGA images with 4200 color light output that can be seen clearly even in bright rooms, with Sony's 3LCD technology assuring natural, vivid colors. The VPL-EW345 is an ideal partner for today's integrated AV/IT environments, expanding your connectivity options with dual HDMI ports and Direct USB Display connection.
A convenient input label function makes life simpler, confirming on screen the name of connected devices. Add the VPL-EW345 to a network and see presentations from up to four connected PC/Mac computers simultaneously. Slip in an optional Wi-Fi dongle and present directly wirelessly from laptops, phones or tablets. Control the projector remotely with a free app for smartphones and tablets. You don't even need to bring a PC to meetings - just slip in a USB thumb drive and start presenting. A range of energy-saving features and long-lasting lamp life contribute to low ownership costs. Maintenance is simplified by a new rear lamp access feature.
Bright, clear images with maximum 4200 lumens color light output
With a 4200 lumen maximum light output (in high mode), the VPL-EW345 delivers crisp, bright presentations that can be seen clearly in larger classrooms or meeting rooms. There's a choice of three brightness modes to suit any environment, from bright daylight to darkened rooms.
3LCD BrightEra technology
The efficient 3LCD panel system is enhanced by advanced BrightEra technology for impressively bright, consistent, high resolution images with excellent color accuracy and impressive reliability.
WXGA resolution
WXGA (1280 x 800) 16:10 display resolution gives plenty of crisp detail: ideal for making presentations direct from a laptop, mobile device or DVD player.
Powerful 16W audio
The powerful built-in 16W speaker (mono) lets your audiences hear video soundtracks with no need for additional amplification.
Energy efficient with long-lasting lamp life up to 10000 hours
High-performance lamp technology offers reduced ownership costs plus reduced maintenance, with a long-lasting lamp replacement time of approx. 10000 hours (with brightness in low mode).
Advanced energy-saving features
Advanced lamp technology enables a range of energy-saving features. Auto Light Dimming mode saves energy when the projector is left on without being used. Auto Picture Mode automatically adjusts light output to suit the projected scene. Touching a button on the remote mutes the picture temporarily, dramatically reducing power consumption.
Quick go
Don't waste time when you're in a hurry to leave the room: turn off the projector and unplug immediately, with no lengthy waiting for cool-down.
Networked presentations
Project presentations from a networked PC or Mac. Present JPEG, PDF and other files wirelessly from a tablet or smartphone (optional). Up to four users can project PC/Mac images simultaneously, while up to eight users can connect to one projector. The Projector Station for Network Presentation application for Windows/Mac is included. For tablet/smartphone use, an application is provided by Pixelworks, downloaded from the web. For details visit http://PWPresenter.pixelworks.com
Control and management from any networked PC
Projector functions and status can be managed and monitored remotely from any networked PC, using the included Projector Station for Network Control application.
Present wirelessly (Optional)
Make presentations wirelessly from a portable or handheld device. (Microsoft Windows / Macintosh OS requires Projector Station for Network Presentation application. iOS / Android requires VueMagic application.)
Remote Control app for iOS/Android
Download the free Projector Remote app and control the projector from anywhere in the room with your handheld device, with simple easy-to-read buttons on your phone or tablet screen.
USB media viewer
Slip in a USB drive and display photos, images and graphics with no PC needed.
Dual HDMI inputs
Two HDMI input terminals make it easy to connect HDMI-equipped devices like PCs and media streaming devices.
USB Display function for easy one-cable PC connection
Present pictures and audio from a connected PC or Mac with just one USB cable - you don't even need to install a software driver.
Customized input naming labels
Define your own input labels like 'BD Player', 'PC' and 'Document Camera', making it easier to see on screen what devices are connected and being used.
Easier maintenance
Lamp access has been shifted to the rear of the projector body, making lamp swaps simpler when the projector is hanging from a ceiling mount.
Quiet operation
Low fan noise ensures discreet, unobtrusive operation in classrooms and meeting rooms.
