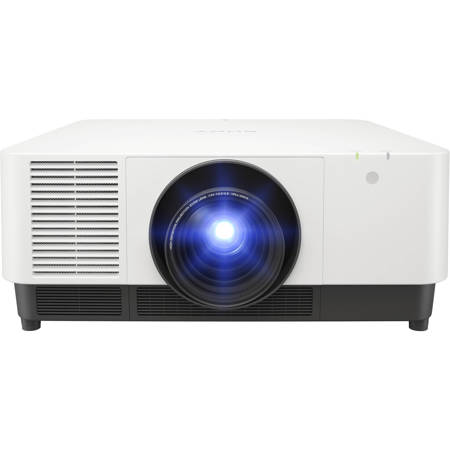

Sony VPL-FHZ91L WUXGA 3LCD Laser Projector without Lens, White

SKU: SOVPLFHZ91LW MFR: VPLFHZ91L/W
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with 9,000 lumens of color light output on this Sony projector.
  • Enjoy detailed WUXGA resolution (1920x1200) for crisp images and clear presentations.
  • The laser light source offers up to 20,000 hours, reducing lamp replacement costs.
  • Achieve flexible installation with powered lens shift, adapting to various room sizes.
  • Connect easily with HDMI and HDBaseT inputs, perfect for modern business environments.
  • Benefit from virtually no maintenance with a 10,000-hour filter replacement cycle.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony VPL-FHZ91L Specifications

Display system

Display system

Jump to...
  • Display system

    3 LCD system

Display device

Jump to...
  • Size of effective display area

    1" x 3 BrightEra LCD Panel, Aspect ratio: 16:10

  • Number of pixels

    6,912,000 (1920 x 1200 x 3) pixels

  • Aspect ratio

    16:10

  • Resolution

    WUXGA (1920 x 1200 pixels)

Projection lens

Jump to...
  • Focus

    Powered/Manual(Depend on lens)

  • Zoom - Powered/Manual

    Powered/Manual(Depend on lens)

  • Zoom - Ratio

    Depend on Lens

  • Throw ratio

    Depend on Lens

  • Lens shift - Powered/Manual

    Powered

  • Lens shift - Range Vertical/Horizontal

    Range Vertical: Depends on the lens
    Range Horizontal: Depends on the lens

Light source

Jump to...
  • Type

    Laser diode

Filter replacement cycle (Max.)

Jump to...
  • Filter replacement cycle (Max.)

    10,000 H (service maintenance)

Screen size

Jump to...
  • Screen size

    Depend on Lens

Light output

Jump to...
  • Mode: Standard

    9,000 lm / 9,800 lm (Center)

  • Mode: Middle

    8,000 lm

  • Mode: Low

    7,000 lm

Color light output

Jump to...
  • Mode: Standard

    9,000lm

  • Mode: Middle

    8,000 lm

  • Mode: Low

    7,000 lm

Contrast ratio

Jump to...
  • Contrast ratio (full white/full black)

    Contrast ratio (full white/full black): Infinite : 1

Displayable scanning frequency

Jump to...
  • Horizontal

    15 kHz to 92 kHz

  • Vertical

    48 Hz to 92 Hz

Accepted signal resolution

Jump to...
  • Computer signal input

    Maximum signal resolution: 1920 x 1200

  • Video signal input

    480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
    The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p, 1080/30p

Keystone correction (Max.)

Jump to...
  • Horizontal

    +/- 30 degrees

  • Vertical

    +/- 30 degrees

INPUT OUTPUT (Computer/Video/Control)

Jump to...
  • INPUT A

    RGB / Y PB PR input connector: 5 BNC (female)

  • INPUT B

    RGB input connector: Mini D-sub 15-pin (female)

  • INPUT C

    DVI input connector: DVI-D 24-pin (single link), HDCP support
    HDCP: v1.4

  • INPUT D

    HDMI input connector: HDMI 19-pin, HDCP support
    HDCP: v1.4

  • INPUT E

    HDBaseT interface connector: RJ45, 3 play

  • INPUT F

    Optional adapter slot for 3G-SDI Input Adapter (BKM-PJ20)

  • INPUT G

    HTML Viewer

  • OUTPUT 1

    Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)

  • USB-1

    Type-A x 1

  • USB-2

    Type-B x 1 (for service)

  • REMOTE

    D-sub 9pin male/RS232C

  • LAN

    RJ45, 10BASE-T/100BASE-TX/1000BASE-T

Acoustic Noise

Jump to...
  • Light output mode: Standard

    39 dB

  • Light output mode: Middle

    39 dB

Operating temperature/humidity

Jump to...
  • Operating temperature/humidity

    32 Degree F to 109 Degree F (0 Degree C to 45 Degree C) / 20% to 80% (no condensation)

Storage temperature / humidity

Jump to...
  • Storage temperature / humidity

    14 Degree F to +140 Degree F (-10 Degree C to +60 Degree C) / 20% to 80% (no condensation)

Power requirements

Jump to...
  • Power requirements

    AC 100 V to 240 V, 8.4 A to 3.4 A, 50 Hz/60 Hz

Power consumption

Jump to...
  • Power consumption

    AC 100 V to 120 V: 840 W
    AC 220 V to 240 V: 814 W

    Standby Mode:
    AC 100 V to 120 V: 0.50 W (when "Standby mode" is set to "Low")
    AC 220 V to 240 V: 0.50 W (when "Standby mode" is set to "Low")

    Networked Standby Mode:
    AC 100 V to 120 V: 21.6 W (LAN)
    26.5 W (HDBT)
    26.6 W (ALL terminals and networks connected, when "Standby mode" is set to "Standard")

  • Power consumption (Contd.)

    AC 220 V to 240 V: 21.3 W (LAN)
    26.5 W (HDBT)
    26.6 W (ALL terminals and networks connected, when "Standby mode" is set to "Standard")

    Standby Mode / Networked Standby Mode Activated
    Approx. 2 Minutes

Heat dissipation

Jump to...
  • AC 100 V to 120 V

    2,866 BTU/h

  • AC 220 V to 240 V

    2,777 BTU/h

Projection Lens

Jump to...
  • Projection Lens

    VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045

Physical

Jump to...
  • Color

    White

  • Dimensions (W x H x D)

    Approx. 21.4 x 8 x 22.20" (544 x 205 x 564mm) (Without protrusions)

  • Weight

    Approx. 58 lbs (26kg)

  • UPC Code

    027242920149

About Sony VPL-FHZ91L

After meticulous design and engineering, the VPL-FHZ91L WUXGA 3LCD Laser Projector without Lens, in a sleek white finish, offers an unparalleled visual experience. This high-brightness 3LCD laser projector, with its exceptional image quality, is perfectly suited for larger spaces such as conference halls, lecture theaters, galleries, museums, and visitor attractions.

The VPL-FHZ91L's high light output of 9,000 lm (9,800 lm center) ensures that your presentations on the big screen have an extra presence, even in brightly lit rooms. This projector is equipped with Sony's unique super resolution Reality Creation technology, a powerful pattern-matching database that optimizes lower-resolution images, enhancing clarity without increasing digital picture noise.

The Intelligent Setting function by Sony simplifies the set-up process with pre-sets to optimize brightness, cooling, color, and other projector settings. This feature ensures great pictures in any environment, including meeting rooms, classrooms, entertainment venues, and multi-screen setups.

The VPL-FHZ91L offers an industry-leading lens shift adjustment range and a wide choice of interchangeable lenses, providing more options to install the projector in any space. The wide lens shift feature gives greater installation flexibility, even in rooms with high ceilings.

This projector is designed with innovative features to reduce maintenance. The laser light source offers up to 20,000 hours of operation without lamp exchange, significantly reducing maintenance needs compared to traditional projectors. You can expect consistent image brightness throughout the laser light source's 20,000 hours recommended lifespan.

The VPL-FHZ91L is ideal for integration in AV environments with leading control, monitoring, and management systems such as Crestron Connected and Extron XTP Systems. It also offers easy edge blending, allowing you to seamlessly join color-matched images from multiple projectors for stunning super-size displays in corporate and education environments.

The projector offers a wide range of lens options to suit virtually any size of room and throw requirements. The quick-release bayonet mount simplifies lens exchange, and the generous lens shift range provides greater flexibility to position the projector in restricted spaces.

The VPL-FHZ91L also features a lens position memory that can memorize and recall up to six settings for projected image size, position, and aspect ratio, saving time in different environments. The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

Sony's Protocol Emulation feature allows you to control Sony projectors using other manufacturers' RS232C control protocols. This feature allows integrators to replace other manufacturers' projectors with Sony's, without re-programming the AV system. Consult your Sony representative for details.

Sony VPL-FHZ91L Features

  • Reduced maintenance
  • Consistent brightness
  • Networked control and monitoring
  • Easy edge blending
  • Versatile lens options
  • Generous lens shift range
  • Lens position memory
  • Stylish blend-in design
  • Protocol Emulation

Warranty Information

This product has a limited warranty of 60 months for parts and 3 months for labor.

Key Features

  • Experience vibrant visuals with 9,000 lumens of color light output on this Sony projector.
  • Enjoy detailed WUXGA resolution (1920x1200) for crisp images and clear presentations.
  • The laser light source offers up to 20,000 hours, reducing lamp replacement costs.
  • Achieve flexible installation with powered lens shift, adapting to various room sizes.
  • Connect easily with HDMI and HDBaseT inputs, perfect for modern business environments.
  • Benefit from virtually no maintenance with a 10,000-hour filter replacement cycle.

What's in the box:

  • Sony VPL-FHZ91L WUXGA 3LCD Laser Projector (White)
  • Remote Control
  • AC Power Cord
  • (Lens Not Included)
  • Sony 5 Year Limited Warranty
