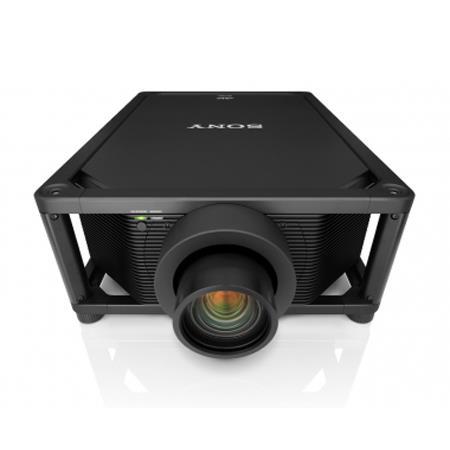

Sony 4K SXRD Laser Projector, 4096x2160, 5000 Lumens, Lens Not Included

SKU: SOVPLGTZ270

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony 4K SXRD Specifications

  • Display System

    4K SXRD panel, projection system

  • Size of effective display area

    0.74" x 3

  • Number of Pixels

    26,542,080 (4096 x 2160 x 3) pixels

  • Projection Lens

    Focus: Powered(Optional)
    Zoom: Powered(Optional)

  • Light Source

    Laser diode

  • Light Output

    5,000 lm

  • Color Light Output

    5,000 lm

  • Contrast ratio

    Dynamic: Up to 30,000(Approx.)
    Native: Up to 20,000(Approx.)

  • Color bit depth

    Up to 12 bit via HDMI / Up to 10 bit via Display Port

  • HDMI

    2 inputs (HDCP 2.2 x 2), Digital (RGB/Y Pb/Cb Pr/Cr)

  • Display Port

    2 inputs (HDCP 1.3 x 1, HDCP 1.3 for V Split x 1), Digital (RGB)

  • Trigger

    2 connectors, Mini jack, DC 12V Max.100 mA

  • Remote

    RS-232C, D-sub 9-pin (female)

  • LAN

    RJ45, 10BASE-T/100BASE-TX

  • IR In / Out

    In:1, Out:1, Mini jack

  • Sync

    In:1, Out:1

  • USB

    Type A

  • OSD languages

    18-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish)

  • Acoustic noise

    30dB - 35dB(Approx.)

  • Operating Temperature/Operating Humidity

    5 to 40 deg. C / 41 to 104 deg. F
    (41 to +104 deg. F / 5 to +40 deg. C)/20% to 80% (no condensation)

  • Storage Temperature / Storage Humidity

    -10 to 60 deg. C / -50 to 140 deg. F
    (14 to 140 deg. F / -10 to 60 deg. C)/20% to 80% (no condensation)

  • Power Requirements

    AC 220 V to 240 V, 6 A, 50/60 Hz(For Europe and China)
    AC 100 V to 240 V, 12 A to 6 A, 50/60 Hz (For the other countries)

  • Power Consumption

    MAX. 1.2 kW
    Standby Mode: 0.4 W (When "Remote Start" is set to "Off")
    Networked Standby Mode: 0.6 W (LAN) (When "Remote Start" is set to "On")

  • Heat Dissipation

    4092BTU/h

  • Dimensions (W x H x D)

    Without Protrusions: 550 x 228 x 750mm / 21.65 x 8.98 x 29.53"
    550 x 262 x 750mm / 21.65 x 10.31 x 29.53"

  • Weight

    Excluding Lens: 40kg / 88.18lbs

About Sony 4K SXRD

Sony combines the best of its projection technologies, 4K SXRD imager and Z-Phosphor laser light source, to create a projector with native 4K resolution, an extremely high contrast ratio, high dynamic range and wide color space - ideal for visual entertainment applications including planetariums, theme parks and museums.

Benefits

Great Image Quality
• Native 4K resolution
• Super high contrast ratio
• Reality Creation 4K upscaling
• HDR compatible
• Wide color space BT.2020 emulated
• Fine multi-projection blending

Virtually Zero Maintenance
• Long-life optics up to 40,000h
• Sealed optics for dust-resistance
• Auto calibration
• Constant brightness mode

Advanced Usability
• Complete tilt-angle free
• One-way air flow and liquid cooling system with low noise operation
• Quick start enhances operation

Native 4K clarity with more than four times the resolution of Full HD
Advanced SXRD panel technology featured in Sony's digital cinema projectors delivers native 4K (4096 x 2160) resolution images, with no artificial pixel enhancement. Every detail is wonderfully clear and natural, without jagged edges or visible pixels.

High brightness
An impressive 5,000 lumens light output ensures punchy, high-brightness images that can be seen clearly in any environment. In constant brightness mode uniform brightness is maintained over the life of the laser light source - ideal for applications where several projectors are used together.

Super high contrast ratio
The advance optical engine reduces internal light leakage, for spectacularly high contrast images with huge amounts of finely-rendered picture detail in dark shots

Supports HDR
Take full advantage of the latest content produced with High Dynamic Range (HDR) for sharp contrast and more accurate detail, from searing highlights to richly detailed dark scenes.

Wide color space
Videos and still images look more vivid and natural with support for an expanded color gamut, meeting DCI cinema projector specifications and BT.2020 (emulated).

Reality Creation upscaling
Lower resolution input signals are accurately upscaled to 4K pixel resolution by Sony's advanced Reality Creation engine: you won't see any individual pixels - just beautifully natural 4K images.

Picture presets for any content
Nine calibrated presets optimize projected image quality for a wide range of content types including cinema, film, TV, photo, gaming and more.

Long-lasting laser light source
Thanks to the highly efficient and reliable laser light source, audiences can enjoy startlingly clear 4K pictures, plus up to 20,000 hours uninterrupted operation (40,000 hours in constant brightness mode) with no lamp replacement - far longer than conventional lamp based projectors.

Long lasting, low maintenance optics
Lens, light source and all optical components are sealed against dust for dependable long-term operation.

Low transport delay
Enjoy responsive, lag-free performance with low transport delay ideal for fast-moving content.

High performance edge blending
Seamlessly edge-blend images from multiple projectors for super-sized, high contrast images with no banding or overlap. Constant brightness mode helps ensure accurately-matched images over long periods of operation.

Color correction and color space adjustment
Hue, Saturation, Brightness and color space can be adjusted to suit different installation conditions.

Quick start
Don't lose time - laser light source starts instantly, allowing you to start projecting in moments without lengthy lamp warm-up time.

Motionflow for smoother 4K images
Motionflow ensures smoother, less blurry on-screen images.

Greater installation flexibility
Install the projector horizontally, vertically, upside down or at any angle with no restrictions. The rugged chassis allows projectors to be stacked directly on top of one another. Projectors can also be stacked side by side with no cabling restrictions.

Auto calibration
Auto calibration adjusts RGB color levels as well as white point over the lifespan of the laser light source for consistently beautiful images over time.

Industry standard RF 3D compatible
The projector's built-in RF transmitter synchronizes with any RF 3D glasses for wider coverage and greater stability, with no need for an external transmitter.

Whisper quiet operation
Extra-low noise fan with one-way air flow and liquid cooling system ensures extra-quiet operation for minimized audience disruption. High altitude mode adjusts fan rate for efficient operation at altitudes above 1500m.

What's in the box:

  • Sony 4K SXRD Laser Projector
  • RM-PJ29 Remote Commander
  • 2x Size AA (R6) Manganese Batteries
  • AC Power Cord
  • Operating Instructions (CD-ROM)
  • Sony Warranty
