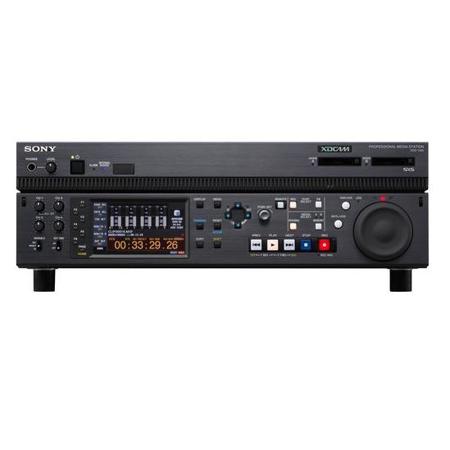

Sony XDS-1000/A6 Professional Media Station with 2x SxS Memory Slots and 1TB Internal RAID-4 HDD Storage

SKU: SOXDS1000A6

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony XDS-1000/A6 Specifications

  • Reference Input

    2x BNC (including loop through), HD/SD
    HD Tri-level sync (0.6 Vp-p/75 Ohms/negative), HD/SD

  • Analog Audio Input

    2x XLR 3-pin (female)(channel selectable)
    +4/0/-3/-6 dBu (selectable)

  • Digital Audio Input (AES/EBU)

    4x BNC - 8 channels total (2 ch each) AES-3id-2001

  • Time Code Input

    BNC x 1, SMPTE time code, 0.5 to 18 Vp-p/3.3 kOhms/unbalanced

  • Composite Output

    1x BNC
    1.0 Vp-p/75 Ohms/negative, SMPTE 170M ,character On/Off

  • SDI Output

    2x BNC, HD
    1: SMPTE 292M (with embedded audio), HD
    2: SMPTE 292M (with embedded audio), character On/Off, HD

  • HDMI

    1x Type A 19-pin, output

  • Analog Audio Output

    2x XLR 3-pin (male)(channel selectable)
    +4/0/-3/-6 dBu (selectable), 600 Ohms, Lo-Z, balanced

  • Digital Audio Output (AES/EBU)

    2x BNC - 4 ch (2 ch each, 1/2 ch and 3/4 ch) AES-3id-1995

  • Headphone Output

    1x JM-60 Stereo phone jack
    -13 dBu, 8 Ohms, unbalanced

  • Video Control

    1x D-sub 9-pin (female), EIA RS-423

  • Ethernet

    1x RJ-45
    1000Base-T: IEEE802.3ab
    100Base-TX: IEEE802.3u
    10Base-T: IEEE802.3

  • Remote (9P) Input

    2x D-sub, 9-pin (female), RS-422A

  • AC Input

    100 to 240 V, 50/60 Hz

  • GPIO

    1x D-sub 15-pin (female), Input: TTL Level, Output: open collector

  • Video Sampling Frequency

    Y: 74.25 MHz, Pb/Pr: 37.125MHz

  • Video Quantization

    8 bits/sample

  • Error Correction

    Reed Solomon Code

  • Video Level

    Infinity to +3 dB

  • Chroma Level

    Infinity to +3 dB

  • Setup/Black Level

    +/-30 IRE

  • Chroma Phase

    +/-30 deg.

  • System Sync Phase

    +/- 15 mus

  • System SC Phase

    0 to 400 ns

  • Audio Sampling Frequency

    48 kHz

  • Audio Quantization

    24 bits

  • Frequency Response

    20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)

  • Dynamic Range

    More than 90 dB

  • Distortion

    Less than 0.05% (at 1kHz)

  • Headroom

    20/18/16/12 dB (selectable)

  • Built-In Display

    4.3-inch type color LCD monitor

  • Recording/Playback Format

    MPEG HD422 (CBR: 50 Mb/s)
    MPEG IMX (CBR, 50/40/30 Mb/s)
    DVCAM: 4 ch/16 bits/48 kHz

  • Recording/Playback Time

    50 Mb/s: Approx. 95 min. (PFD50DLA), Approx. 43 min. (PFD23A)

  • Search Speed Range

    -20 to +20 times normal speed:

  • Power Requirements

    AC 100 V to 240 V, 50/60 Hz

  • Power Consumption

    170 W

  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Humidity

    20 to 90% (relative humidity)

  • Dimensions (WxHxD)

    424 x 132 x 460mm (16.69 x 5.20 x 18.11") (Excluding Protrusions)

  • Weight

    15.5kg (34.17 lbs)

About Sony XDS-1000/A6

The XDS-1000 supports all SxS cards, including Memory Stick and SDHC, using MEAD adapters. The internal 1 TB hard disk drive and Gigabit Ethernet port enables about 32 hours of continuous recording in HD422 at 50 Mbps and simultaneous access to AV content by multiple users. Hybrid XDCAM workflow The XDCAM Station is a professional media station with built-in storage and interfaces for SxS memory cards, supporting the super-fast XDCAM memory workflow. It features better support for multitasking, networking and other IT operations. Adding the XDCAM Station to an XDCAM workflow makes file-based operation much more convenient and efficient.

Supports all XDCAM storage formats
The XDS-1000 supports all XDCAM and XDCAM EX file formats, codecs and metadata, effectively offering complete format transparency. It also supports industry-standard VDCP, FTP and CIFS protocols.

Multitasking internal storage operations
The internal 1 TB hard disk drive (HDD) can multitask when carrying out some tasks. This increases interoperability and overall efficiency when working with network production systems.

Familiar VTR-like user interface
The layout of controls on the XDS deck follows industry-standard conventions already familiar to most users. This makes it easy to use, configure and integrate into the overall workflow.

Enhances network functionality
The XDS-1000 enables users to access growing volumes of files from nonlinear editors without file transfer, offering high-speed file transfer and multiple access over a network. The XDS-1000 provides 4 clients for file transfer and 4 clients for network control.

SD / HD cross-conversion
It supports SD and HD as standard, with up-conversion record and up/down/cross-conversion playback.

What's in the box:

  • Sony XDS-1000/A6 Professional Media Station
  • Sony 1 Year Labor Limited Warranty
