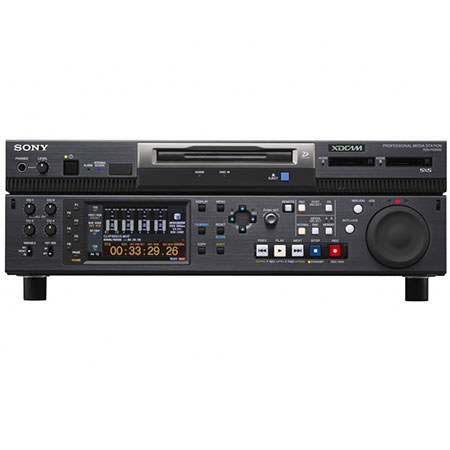

Sony XDS-PD2000 Advanced Professional Media Station
See all Sony items

Sony XDS-PD2000 Advanced Professional Media Station with Dual SxS Card Slots and Quad Layer Professional Disc Drive

SKU: SOXDSPD2000
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony XDS-PD2000 Specifications

  • Power Requirements

    AC 100 V to 240 V, 50/60 Hz

  • Power Consumption

    210 W

  • Operating Temperature

    +5 to +40 deg. C (+41 to +104 deg. F)

  • Storage Temperature

    -20 to +60 deg. C (-4 to +140 deg. F)

  • Humidity

    25 to 90% (relative humidity)

  • Search Speed Range

    Jog mode:
    -1 to +1 times normal speed
    Variable mode:
    -2 to +2 times normal speed
    Shuttle mode:
    -20 to +20 times normal speed:
    F.Fwd/Rev:
    -35 to +35 times normal speed

  • Reference Input

    BNC x 2 (including loop through), HD/SD
    HD Tri-level sync (0.6 Vp-p/75 Ohms/negative), HD/SD
    or SD blackburst/composite sync (0.286 Vp-p/75 Ohms/negative), HD/SD

  • SDI Input

    BNC x 1, HD
    (HD/SD switchable)
    SMPTE 292M (w/embedded audio), HD
    SMPTE 259M (w/embedded audio), HD

  • Analog Audio Input

    XLR 3-pin (female) x 2 (channel selectable)
    +4/0/-3/-6 dBu (selectable)
    10 kOhms, balanced

  • Digital Audio Input (AES/EBU)

    BNC (x4) - 8 channels total (2 ch each) AES-3id-2001

  • Time Code Input

    BNC x 1, SMPTE time code, 0.5 to 18 Vp-p/3.3 kO/unbalanced

  • Composite Output

    BNC (x1) - 1.0 Vp-p/75 O/negative, SMPTE 170M

  • SDI Output

    BNC (x 2), HD
    1: SMPTE 292M (w/embedded audio), HD
    2: SMPTE 292M (w/embedded audio), character On/Off, HD
    BNC (x 2), SD
    1: SMPTE 259M (w/embedded audio), SD
    2: SMPTE 259M (w/embedded audio), character On/Off, SD

  • Monitor Video

    BNC (x1) - HD-SDI Monitor Output (w/ embedded audio) - Play and Record Channel Monitoring (character on/off)
    BNC (x1) - SD-SDI Monitor Output (w/ embedded audio) - Play and Record Channel Monitoring (character on/off)
    HD15 (VGA) x1 - for front LCD panel output
    HDMI (type A, 19 pin) x1 - HDMI Monitor Output

  • Analog Audio Output

    XLR 3-pin (male) x 2 (channel selectable)
    +4/0/-3/-6 dBu (selectable), 600 Ohms, Lo-Z, balanced

  • Monitor Audio

    XLR 3-pin (male) x 2, +4 dBu, 600 Ohms, Lo-Z, balanced

  • Digital Audio Output (AES/EBU)

    BNC (x4) - 8 channels total (2 ch each) AES-3id-2001

  • Headphone Output

    JM-60 Stereo phone jack x 1-13 dBu, 8 Ohms, unbalanced

  • Time Code Output

    BNC x 1, SMPTE time code, 1.0 Vp-p/75 Ohms/unbalanced

  • Video Control

    D-sub 9-pin (female) x 1, EIA RS-423

  • Ethernet

    RJ-45 x 1
    1000Base-T: IEEE802.3ab
    100Base-TX: IEEE802.3u
    10Base-T: IEEE802.3

  • USB

    Hi-Speed USB 2.0 (Front: x1, Rear: x4)

  • Remote (9P) Input

    D-sub, 9-pin (female) (x2), RS-422A
    Sony 9-pin VTR protocol (player commands only)
    VDCP (play and record commands)

  • AC Input

    x 1, 100 to 240 V, 50/60 Hz

  • GPIO

    D-sub, 15-pin (female) (x1), Input: TTL Level, Output: open collector

  • Sampling Frequency

    48 kHz

  • Quantization

    24 bits

  • Frequency Response

    20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)

  • Dynamic Range

    More than 90 dB

  • Distortion

    Less than 0.05% (at 1kHz)

  • Headroom

    20/18/16/12 dB (selectable)

  • Built-In Display Built-In Display

    4.3" type color LCD monitor

  • Dimensions (W x H x D)

    Excluding Protrusions: 424 x 132 x 460mm/ 16.69 x 5.19 x 18.11"

  • Mass

    17kg / 37.47lbs

About Sony XDS-PD2000

The Sony XDS-PD2000 is a blend of video server technology integrated with Sony SXS memory card readers and the new 4th generation Professional Disc drive with front panel controls similar to XDCAM decks. The XDS-PD2000 has 0.5 TB of solid state internal storage, has dual SXS card readers and the new generation XDCAM drive which support all of the Professional Disc media types: 23GB (PFD-23A), 50 GB, (PFD-50DLA), the 128 GB write once XDCAM disc (PFD-128QL) and the newest 100 GB, triple-layer, re-writable Professional Disc (PFD-100TLA).. The XDS-PD2000 also has a higher performance engine than the XDS-1000 and XDS-PD1000 to provide up to 300 Mbps of bandwidth for file transfers and base band I/O operations.

Sony XDS-PD2000 Features

  • HD recording at up to 50 Mb/s using MPEG HD422
  • Support for existing XDCAM HD and XDCAM SD formats as standard
  • 1080i and 720P recording
  • Dual-layer disc (50 GB, PFD50DLA) and single-layer disc (23.3 GB, PFD23A) support
  • Thumbnail operation
  • Built-in up-conversion to HD from SDI input when recording
  • HD/SD conversion and cross conversion between 1080 and 720 at the output during playback
  • Multi-format compact HD/SD Recorder
  • Video format (4:2:2 HD 1080 50i, 59.94i)
  • High-quality eight-channel audio recording
  • Tilt up front panel
  • VTR-like jog/shuttle operation (for playing material on disc or internal storage)
  • Video control (via front panel and remote)
  • Ethernet interface

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HD recording at up to 50 Mb/s using MPEG HD422
  • 1080i and 720P recording
  • Thumbnail operation
  • Multi-format compact HD/SD Recorder
  • Video format
  • High-quality eight-channel audio recording

What's in the box:

  • Sony XDS-PD2000 Advanced Professional Media Station with Dual SxS Card Slots and Quad Layer Professional Disc Drive
  • Sony 1 Year Warranty
