SoundTube XT-SPYKE-PM Specifications

  • System Type

    2-way full range line array (Optional 120" transformer for 25/70.7/100V applications)

  • Impedance

    8 Ohms (Rated)

  • Sensitivity

    At 2.83V/1m: 92.0 dB
    At 1W/1m: 92.0 dB

  • Frequency Response

    100 Hz - 20 kHz (-3 dB)
    65 Hz - 22 kHz (-10 dB)

  • Max. Program Power

    150W

  • Max. Continuous Power

    300W

  • Max. SPL

    At 1m: 114 dB

  • Coverage Angle

    174 deg. horizontal 25 deg. vertical (-6 dB at 2 kHz)
    50 deg. horizontal 20 deg. vertical (-6 dB at 10 kHz)
    180 deg. horizontal 50 deg. vertical (200-10k) (Avg. 2 to 10 kHz)

  • Tap Selector

    5-Position rotary switch with transformer bypass position (Optional)

  • Directivity Factor (Q)

    9.0dB (Average 100 Hz - 10 kHz) 12.1dB (2 kHz)

  • Directivity Index (DI)

    12.8 dB (Average 100 Hz - 10 kHz) 16.2 dB (2 kHz)

  • Frequency Driver

    Low-Frequency Driver: 8 - 76mm (3.0") woofers, polypropylene
    High-Frequency Driver: 8 - 25mm (1.0") titanium dome tweeters

  • Crossover Frequency

    2.4 kHz

  • Network Type

    Low-Pass: 12dB/OCT
    High-Pass: 18dB/OCT

  • Enclosure Material

    Roto-molded polyethylene plastic

  • Grille

    Painted coated stainless steel

  • Inputs

    Weatherproof SpeakOn

  • Regulatory

    UL 1480 planned; CE Approved

  • RoHS

    Approved

  • Dimensions (HxWxD)

    949.3 x 172.7 x 148.5mm (37.37 x 6.80 x 5.85")
    Including Bracket: 949.3 x 172.7 x 223.5mm (37.37 x 6.80 x 8.80")

  • Weight

    7.80kg (17.2 lbs)

  • UPC Code

    752830447080

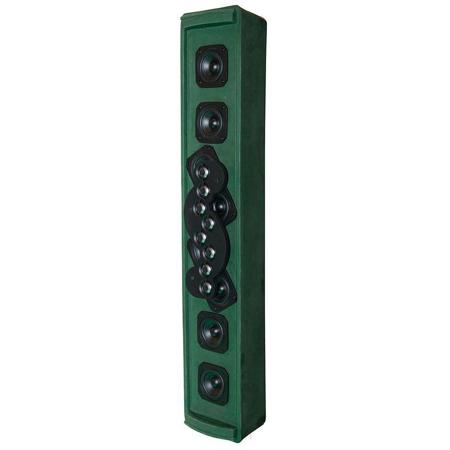

About SoundTube XT-SPYKE-PM

The SoundTube XT-Spyke is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 2-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and high frequency pass bands allows the XTSpyke to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beam width that out-performs many other single box line arrays. Featuring eight 3.0" woofers and eight 1" high frequency drivers for extremely smooth high frequency response, the XT-Spyke achieves superb coverage in an enclosure measuring only 37.37" x 6.80" x 5.50".

Applications
Designed for outdoor use in large public spaces, the XT-Spyke is ideal for PA and sound reinforcement applications. Its near-field to far-field transition occurs at only 3 meters (about 10') from the speaker, maintaining a constant directivity of 91 x 50 degrees throughout the coverage area. The XT-Spyke was designed for use in transportation platforms, airports, houses of worship, auditoriums and other public gathering spaces.

SoundTube XT-SPYKE-PM Features

  • Passive, fixed length, column line array with 2-way design
  • Eight 3.0" (76mm) woofers polypropylene woofers and eight 1.0" (25mm) titanium dome tweeters
  • Line Array - Point Source (LAPS) technology provides short near-field extent and robust far-field performance
  • UV-, scratch-, chlorine- and weather resistant with professional-grade components for long-lasting performance and durability
  • Flexible mounting options include surface-mount and pole-mount
  • Weatherproof SpeakOn connectors allow for fast connections and easy daisy chaining
  • Painted stainless steel grille
  • Available in green finish

What's in the box:

  • SoundTube XT-SPYKE-PM Outdoor Line Array Pole Mount Speaker
  • Mounting Plate
  • Mounting Bolts
  • SpeakOn Connector
  • Safety Cable
  • SoundTube 5 Year Limited Warranty
