Swellpro Fisherman FD1 Specifications

Drone
  • Waterproof Rating

    IP67

  • Axis Diameter

    17.71" (450mm)

  • Max Ascend Speed

    4 m/s

  • Max Descend Speed

    4 m/s

  • Max Flight Speed

    10 m/s(GPS); 22 m/s(ATTI)

  • Max Tilt Angle

    ATTI Fast Mode 25 Degree
    ATTI Slow Mode 12.5 Degree

  • Max Altitude from Takeoff Point

    120 m (GPS) / 1.3 km (ATTI)

  • Hovering Accuracy

    +/-0.5m

  • Max Flight Time

    30 mins (no wind & no load); (approx. 15 mins with 1.0kg, approx.12 mins with load of 1.5kg)

  • Max Flight Distance

    1.6 km

  • Max Payload Capacity

    4.4 lbs (2kg)

  • Satellite Positioning Systems

    GPS/GLONASS

  • Flight Control

    Hawk

  • Motor

    3509/740Kv

  • ESC

    40A (flux)

  • Propeller

    1242 carbon fiber quick release propellers

  • Working Temperature

    14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

  • Battery

    4S 15.2V 6500mAh Lipo

  • Charging Time

    90 min

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Weight

    72.31 oz (2050g) (include battery and propellers)
    Battery: 22.57 oz (640g)

Remote Control

Jump to...
  • Frequency

    2405 - 2475 MHz

  • Band Wide

    5000 KHz

  • Coding Mode

    GFSK

  • Effective Distance

    1.3 km (No interference, open area)

  • Receiving Sensitivity

    -105dBm

  • Transmitting Power

    Less than 20dBm

  • Channel

    6

  • Battery Type

    6V (1.5V AAx4)

  • Dimensions

    6.85 x 3.5 x 7.48" (174 x 89 x 190mm)

  • Weight

    Without Battery: 13.33 oz (378g)

  • Waterproof

    IP67

  • Max Payload

    4.4 lbs (2kg)

  • Dimensions

    2.38 x 1.42 x 1.96" (60.7 x 36.2 x 50mm)
    Cable Length: 8.66" (220mm)

  • Weight

    3.17 oz (90g)

  • UPC Code

    6970759632651

About Swellpro Fisherman FD1

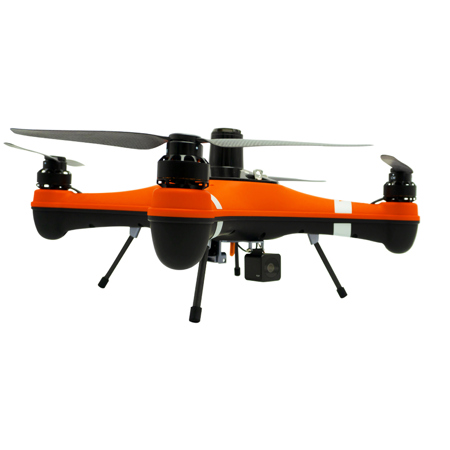

Fisherman FD1
Drone Fishing Made Easy

Fisherman FD1 is a simplified yet enhanced version of SplashDrone 3+.
It uses the same technology of SplashDrone 3+ but removed all the bells and whistles that don't contribute to bait dropping. With a stronger propulsion system, Fisherman FD1 enables higher bait lit capacity, longer flight time and better wind resistance than SplashDrone 3+. Fly more baits further out and reel more fish in less hours.

• 2KG bait capacity
• IP67 seawater proof
• 1.6KM casting range
• 30 min flight time
• 14.5 m/s wind resistance
• Drone trolling

2kg Bait Capacity
With its superior 2kg payload capacity, the Fisherman FD1 gives you the flexibility to carry more than 10 baited hooks or lures on each cast or drop heavy live baits for sharks or tuna.

PL1-F
Mechanical payload release without camera for simple casting.

Sky-Trolling
You don't need to drive a boat to troll for fish. With the Fisherman FD1 you can troll your line to attract pelagic fish. Adjust the release to suit the conditions. TrollSafe can also protect your drone in case of a reel jam or a bird striking your line.

IP67 seawater proof
The fuselage of the Fisherman FD1 is made from industrial-grade ABS and is 100% water-sealed and pressure-tested.

Both the external waterproof motors and internal electronics are coated for further corrosion-resistance. No more tragedy of DJI-fishing-gone-wrong.

Go against the wind
The new propulsion system and flight computer are tuned to maximized control responsiveness and allow the Fisherman to fly in winds up to Beaufort Force 7.

Multi-cast per charge
A new 6700mAh/4S high-voltage lithium battery provides up to 33 minutes of flight time (without bait), allowing up to 6 bait drop missions from a single battery charge (distance dependent).

1.6 km casting range
The new remote controller supports control distances of up to 1600m.You will probably run out of line before your run out of range with your Fisherman FD1.

Simplified remote controller
The new dust-proof and splash-proof remote controller keeps flying simple.The integrated high-brightness 3-inch digital display provides critical flight information so you don't need a phone or tablet to fly your baits.Even no vices can learn how to fly the Fisherman FD1 in just a few minutes.

Fly safe
Intelligent return home
After dropping your baits, simply flick the Return-home switch on the remote and the Fisherman FD1 will fly itself back to its take-off point and gently land automatically so you can focus on reeling the fish in!

New interference-resistant GPS & altimeter design
The new elevated GPS and altimeter pod provides more precise position and altitude control against interference. The new pod also makes sure the compass always "go north" in unusual magnetic fields.

Anti-Pendulum Feature
Drones may have a pendulum motion when flying with a payload. This feature can reduce the pendulum effect on the Fisherman by controlling the acceleration and de-acceleration.

Failsafe Return
In case of loss of signal, or when the battery level reaches a low threshold, the Fisherman drone will automatically release the fishing line and return to its starting point.

Swellpro Fishing Drone
Fly your baits out, reel the fish in. Simple!

Swellpro Fisherman FD1 Features

  • 4.4 lbs (2kg) Bait Capacity
  • IP67 seawater proof
  • 30 min flight time
  • 14.5 m/s wind resistance
  • Drone trolling
  • The new remote controller supports control distances of up to 1600m
  • New interference-resistant GPS & altimeter design
  • Anti-Pendulum Feature
  • Failsafe Return

Product Documents

User Manual

Key Features

  • 4.4 lbs (2kg) Bait Capacity
  • IP67 seawater proof
  • 30 min flight time
  • 14.5 m/s wind resistance
  • Drone trolling
  • The new remote controller supports control distances of up to 1600m

What's in the box:

  • Swellpro Fisherman FD1 Fishing Drone
  • Remote Controller
  • 2x Propellers (Pair)
  • LiHV Battery
  • Charger
  • Charging Cable
  • Micro USB Cable
  • PL1-F Payload Release
  • Manual
  • Swellpro 1 Year Limited Warranty
