Special

Fractal Design Define R5 ATX Mid-Tower Computer Case, Black

SKU: FDCADEFR5BK MFR: FD-CA-DEF-R5-BK
$154.99
$159.99
Save: $5 (3%)
Earn VIP Reward Points

Key Features

  • Optimize airflow with this Fractal Design mid-tower case, supporting multiple fans.
  • Enjoy a sleek aesthetic with this black computer case, perfect for any setup.
  • Build your dream PC using ATX, Micro ATX, or Mini ITX motherboards in this case.
  • This PC case offers superior cable management for a clean and organized build.
  • Experience high build quality with sound-dampened steel side panels on this tower.
  • Install multiple drives with ease; supports up to 8x 3.5" HDDs and 2x 2.5" SSDs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fractal Design Define R5 Specifications

General

General

Jump to...
  • Color

    Black

  • 3.5" HDD/2.5" SSD positions

    8x

  • 2.5" dedicated SSD unit positions

    2 (Fits SSDs up to 12mm thick)

  • 5.25" bays

    2 (removable)

  • Expansion slots

    7x

  • Front ports

    2x USB 3.0, 2x USB 2.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button

  • Total fan mounts

    9x

  • Front fan

    2x 120/140mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM)

  • Top fan

    3x 120/140mm

  • Rear fan

    1x 120/140mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM)

  • Bottom fan

    2x 120/140mm

  • Side fan

    1x 120/140mm

  • Dust filters

    Front fans, Bottom fans (ejects from the front of the case)

  • Cable routing grommets

    Yes

  • Fixed self-securing closure straps

    Yes

  • Captive thumbscrews

    Right side panel

  • Left side panel

    Industrial sound-dampened steel

  • Right side panel

    Industrial sound-dampened steel

Compatibility

Jump to...
  • Power supply type

    ATX

  • Motherboard compatibility

    ATX, Micro ATX, Mini ITX

  • Front radiator

    360, 280, 240, 140 or 120mm (without drive bays)

  • Top radiator

    420, 360, 280, 240, 140 or 120mm (a thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140mm radiators; 420 and 360mm radiators require removal of the ODD bay)

  • Rear radiator

    120 or 140mm

  • Bottom radiator

    120 or 240mm (Use of radiators in the bottom position limits the PSU length to 165mm)

  • PSU max length

    190/170mm with a bottom 120/140mm fan installed or 300mm when not using any bottom fan location

  • GPU max length

    310mm with the top HDD cage installed or 440mm with the top cage removed

  • CPU cooler max height

    180mm

  • Cable routing space

    20-35mm

Physical

Jump to...
  • Volume

    3325.79 cu. in (54.5L)

  • Dimensions (W x H x D)

    Case: 9.13 x 17.75 x 20.51" (232 x 451 x 521mm)
    Case with feet/screws/protrusions: 9.13 x 18.18 x 20.9" (232 x 462 x 531mm)

  • Weight

    23.58 lbs (10.7kg)

  • UPC Code

    817301012584

About Fractal Design Define R5

If you're an enthusiast seeking a blend of elegance and functionality, the Define R5 ATX Mid-Tower Computer Case in sleek black is your ideal choice. This product, designed by the reputable Fractal Design, is a testament to silent computing, thanks to its high-density sound-dampening material. It's not just about silence, though; this case offers powerful and expansive support for both air and liquid cooling systems, making it a standout in its size category.

The Define R5 case is equipped with tool-less ModuVent fan slot covers, strategically placed to enhance silent computing. Its Dynamic Series fans are finely tuned to ensure optimal performance without compromising on the quiet environment. This case is a perfect blend of intelligent design and enthusiast-oriented features.

The configurability of the Define R5 is one of its key selling points. It can comfortably accommodate up to 8 hard drives and all modern graphics cards. If you're considering expanding your system with water cooling components or additional fans, this case can be easily configured to meet your demands.

The Define R5 case also prioritizes cleanliness with its smart filters. These filters cover the front and bottom air intakes and are easily accessible from the front of the case, ensuring a dust-free interior. The case also features an innovative Quick Release System on the left side, providing secure mounting of the side panel while allowing quick and easy access to the system.

Storage is a breeze with the Define R5 case. It features two dedicated SSD mounts neatly placed behind the motherboard tray, equipped with innovative new brackets for tool-free installation and removal. The HDD cage system can hold up to eight 3.5" or 2.5" drives and is highly adaptable, allowing you to modify the case layout according to your preference. The ODD cage can be easily removed to gain additional interior space, increase airflow, provide a new place for HDD cage mounting, or make more room for water cooling components.

The sturdy metal HDD trays not only provide excellent dampening features for the hard drives but also promote better airflow through the cage with an updated, more open design. This mid-tower computer case is compatible with ATX, Micro-ATX, and Mini-ITX motherboards, making it a versatile choice for your custom computer build. With its stylish design and rugged durability, the Define R5 ATX Mid-Tower Computer Case is a spacious and reliable choice for any tech enthusiast.

Fractal Design Define R5 Features

  • Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow and cooling capabilities
  • Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front
  • Equipped with new tool-less ModuVent fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption
  • Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels
  • Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case
  • Newly configured front door with dual side mounting to better fit your work space
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
  • Highlighting 2 dedicated SSD mounts cleanly placed behind the motherboard tray that feature innovative new brackets delivering a tool-free installation and removal
  • The HDD cage system holds up to eight 3.5" or 2.5" drives and is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages
  • The ODD cage can easily be removed to gain additional interior space; the area can be freed up to allow for increased airflow, to provide a new place for HDD cage mounting or to make more room for water cooling components

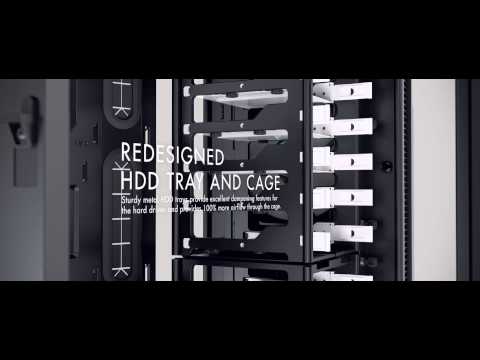

  • Sturdy metal HDD trays provide excellent dampening features for the hard drives while providing better airflow through the cage with an updated, more open design
  • The new and innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick and easy access to the system
  • Define R5 model is available with window side panel

Key Features

  • Optimize airflow with this Fractal Design mid-tower case, supporting multiple fans.
  • Enjoy a sleek aesthetic with this black computer case, perfect for any setup.
  • Build your dream PC using ATX, Micro ATX, or Mini ITX motherboards in this case.
  • This PC case offers superior cable management for a clean and organized build.
  • Experience high build quality with sound-dampened steel side panels on this tower.
  • Install multiple drives with ease; supports up to 8x 3.5" HDDs and 2x 2.5" SSDs.

What's in the box:

  • Fractal Define R5 ATX Mid-Tower Computer Case (Black)
  • 4x Power Supply Screws
  • 8x Motherboard Standoff Screws
  • 8x Motherboard Screws
  • 32x 3.5" Drive Screws
  • 32x 2.5" Drive Screws
  • 8x Optical Drive Screws
  • 4x Front Fan Screws
  • 32x HDD Dampener
  • Standoff Tool
  • 5x Cable Ties
  • User Manual
  • Fractal 2 Year Limited Warranty
