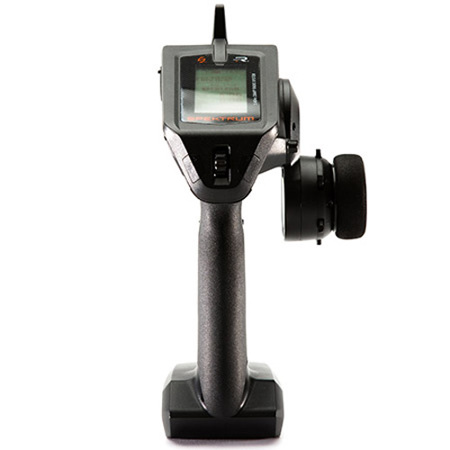

Spektrum DX5R 5-Channel DSMR System, Includes DX5 Pro Transmitter with SR2100 Receiver, 2.4 GHz Frequency Band

SKU: SPM5010

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-12-09T04:18:52

Rated 4 out of 5

A fine controller

The Spectrum DX5R is the top of the line controller from Spectrum (for a surface pistol grip controller). It lacks the features of the high-end models from the likes of Fataba and others, but if you are in the Spectrum ecosystem, it's a fine controller and will meet the needs of MOST R/C racers.

BRIAN N.

Spektrum DX5R Specifications

  • Number of Channels

    5

  • Modulation

    DSMR)

  • Band

    2.4 GHz

  • Model Memory

    250

  • Battery Type

    4x AA (available separately)

  • Experience Level

    Advanced

  • Voltage Range

    3.5-9.6V

  • Dimension

    Receiver: 0.7 x 1 x 1" (17.6 x 25.5 x 25mm)

  • Weight

    Receiver: 0.2 oz (5.5g)

  • UPC Code

    605482719800

About Spektrum DX5R

Impulse Driven
The Spektrum DX5 Pro includes more ergonomic options so that everything you drive can respond more harmononiously. Plus the DX5 Pro gives bashers, boaters and racers a class-leading list of pro-class features, all at a remarkably affordable price.

Factory Preset Models With Smart Drive Modes
Presets of six popular Losi vehicles have been loaded into the model list at the factory. Each preset features specially tuned AVC Smart Drive Modes that deliver four completely different driving experiences. All models are accessible from the D-switch of the transmitter so that they're easy to use at any moment while you drive, and fully adjustable to your liking through the program menu.

Avc Smart Drive Modes

Trainer
Trainer mode is for beginner drivers and considered the most stable and docile of the four modes available. Throttle and steering rates have been lowered allowing beginner to relax and learn the basics of RC control. Anti-Lock Braking (ABS) is engaged for outstanding control of power and speed. This mode makes even powerhouse vehicles easy to control.

Slick
Slick mode is specifically tuned for superior drivability when conditions are considered "slick" such as when driving on loose dirt, gravel or for when conditions are wet. Stability and traction control is turned way up so that you stay in control with ease.

Stability
Stability mode adds AVC technology into the mix. With it, your powerhouse vehicle will exhibit incredible traction control with no limits on throttle control. In stability mode, you can punch the throttle hard and easily stay straight on course.

Full Rip
Just how it sounds, Full Rip mode lets you enjoy full limits of steering and throttle control. AVC assistance is completely turned off. This drive mode is recommended for experienced users familiar with uninhibited steering and what full-power brings to the experience.

Next-Gen Ergonomics
Inspired by users like you, optimized adjustments make it easy to thoroughly adapt the DX5 Pro's ergonomics to your driving style. The sense of balance and comfort they provide perfectly complements the precision of DSMR technology.

The DX5 Pro was designed to perform in every single surface segment imaginable. It comes with a drop down wheel as standard and a full ergonomics package that allows you to setup wheel angle, and even steering wheel size. Steering feel has been immensely improved with smoother left to right transition. Throttle throw has been increased to provide more natural feeling action with greater resolution. As a result, these two controls offer a better balance with the potential to improve the accuracy and stamina of your driving.

Frequency-Agile Dsmr Technology
The DX5 Pro is built around frequency-agile, DSMR 2.4GHz technology. This exclusive Spektrum technology can be used in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. It's also backwards compatible with DSM2 and marine-specific Spektrum receivers. This means most longtime Spektrum users can continue to use the receivers they have. They'll only need to upgrade if they want the frequency-agility of a DSMR receiver for busy 2.4GHz environments.

Easy To Program
Sophisticated programming isn't worth much if it's a pain to use. The DX5 Pro's SimpleScroll programming interface makes navigating menus and changing settings as simple as 'scroll and click'. It's so easy-most users can complete complex programming tasks without ever having to look at the manual.

Built-In Telemetry
The built-in telemetry feature can give you real-time information on things like your vehicle's battery voltage, signal quality, motor temperature and more. Using the vibe alert system, you can program the DX5 Pro to notify you when specific telemetry values reach or exceed limits you define.

Programmable Vibe Alerts
You can select from a variety of vibe alerts for battery voltage and telemetry functions. Most of these can be set to go off when the voltage level or telemetry data exceeds specific values that you define.

250-Model Memory
The enormous capacity of the DX5 Pro's on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card.

5.5-Millisecond Frame Rate
When matched with a receiver capable of 5.5ms frame rates, the DX5 Pro delivers lightning-fast response that gives new meaning to the word 'connected'.

Includes Sr2100 Dsmr High-Speed Receiver
Built around frequency-agile DSMR technology, the SR2100 will consistently deliver superb range and a lightning-fast 5.5ms frame rate, even in places where a lot of 2.4GHz systems are in use at once. Its design features an incredibly small footprint with an internal antenna that eliminates the need for external antenna tube support, so it's easy to mount on most any chassis.

Spektrum DX5R Features

  • 5 fully proportional channels
  • Generous ergonomics package lets you make the transmitter fit you
  • Redesigned steering mechanism eliminates center dead zone
  • Redesigned throttle trigger with increased throw and resolution
  • Spektrum Lap Timer, AVC technology, telemetry and Drive Mode ready
  • Multiple mixing setups including Motor on Axle (MOA)
  • Six, factory loaded model presets with specially tuned AVC Smart Drive modes
  • DSMR 2.4GHz technology, and backwards compatible with DSM2
  • 5.5-millisecond frame rate with compatible receivers
  • Includes Antenna-less SR2100 5.5ms DSMR receiver
  • Advanced programming features
  • SimpleScroll interface makes advanced programming easy to use
  • Built-In telemetry
  • Programmable vibe alerts
  • 250-model memory
  • LiPo battery compatible (battery sold separately)

Key Features

  • 5 fully proportional channels
  • Generous ergonomics package lets you make the transmitter fit you
  • Redesigned steering mechanism eliminates center dead zone
  • Redesigned throttle trigger with increased throw and resolution
  • Spektrum Lap Timer, AVC technology, telemetry and Drive Mode ready
  • Multiple mixing setups including Motor on Axle (MOA)

What's in the box:

  • DX5 Pro DSMR Transmitter
  • SR2100 Receiver
  • Spektrum 1 Year Limited Warranty
