Spektrum Aircraft Telemetry Energy Sensor for Flight Pack Battery
See all Spektrum items

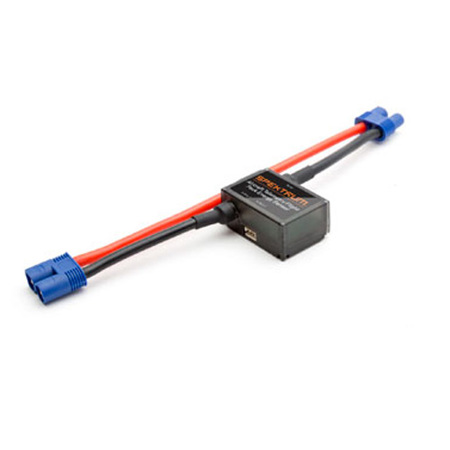

Spektrum Aircraft Telemetry Energy Sensor with EC3 Connector for Flight Pack Battery

SKU: SPMA9605

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Spektrum Telemetry Energy Sensor Specifications

  • Compatibility

    Flight Pack Battery

  • Measures

    Current and mAh for single flight pack battery

  • Resolution

    1A displayed, 0.1A logged

  • Wire Gauge

    12 AWG

  • Input Connector Types

    EC3 Connector

  • Input Voltage

    3.5V to 50V

  • Continuous Maximum Current

    60A

  • Maximum Peak Current

    140A

  • Accuracy

    +/- 5% of battery capacity used

  • Dimensions (LxWxH)

    1.3 x 0.9 x 0.6" (3.30 x 2.29 x 1.52cm)

  • Weight

    0.17 oz (4.82g)

  • UPC Code

    605482557198

About Spektrum Telemetry Energy Sensor

The Spektrum Aircraft Telemetry Flight Pack Energy Sensor is designed to measure Capacity Used, Current and Temperature of your flight pack. With this information you'll be able to determine how much capacity has been used by your electric power system all the while monitoring the results through the telemetry settings in your telemetry compatible Spektrum transmitter. Pre-wired with a EC3 power connector the Flight Pack Energy Sensor also allows you to monitor the temperature of the battery while in use. With its light weight design and simple installation you'll be flying with confidence in your aircrafts power system.

Spektrum Telemetry Energy Sensor Features

  • Measure mAh (coulombs) - Monitors the level of mAh used in a single flight pack battery
  • Compact Design - Small footprint allows for virtually unlimited applications
  • Easy Set Up - No calibration or programming of the unit itself is required
  • EC3 Connectors - Uses standard EC3 battery connectors to easily connect between the battery and ESC
  • Telemetry Module or Telemetry Receiver and a Telemetry Capable Transmitter required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Spektrum Aircraft Telemetry Energy Sensor with EC3 Connector
  • 6 " X-BUS Extension
  • Spektrum 1 Year Limited Warranty
