Spektrum AR9320T 9-Channel Carbon Fuse Integrated Telemetry Receiver

SKU: SPMAR9320T

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Spektrum AR9320T Specifications

  • Compatibility

    All Spektrum DSMX transmitters
    Fits most parkflyer size and larger aircraft

  • Number of Channels

    9

  • Modulation

    DSM2, DSMX

  • Band

    2.4GHz

  • Voltage Range

    3.5-9V

  • Antenna Length

    7" (17.78cm) (Dual)

  • Dimensions (WxLxH)

    48.5 x 28.3 x 20.9mm (1.91 x 1.11 x 0.82")

  • Weight

    17.8g (0.63 oz)

  • UPC Code

    605482630969

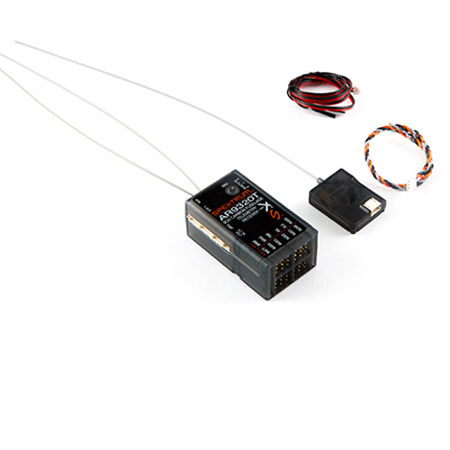

About Spektrum AR9320T

The AR9320T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9320T features built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options.

No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2 transmitter capable of 11ms frame rates, the AR9320T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9320T includes 1 DSMX carbon fuse remote receiver that allows you take advantage of Spektrum MultiLink technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

The AR9320T was designed specifically for carbon fuselage aircraft and includes a special antenna design that overcomes RF limitations by allowing you to route the antennas through the side of the fuselage to the outside of the aircraft. The AR9320T also includes a built-in variometer sensor that automatically senses barometric pressure in order to determine rate of climb and provides altitude above ground level (AGL) with no calibration required. This built-in variometer makes the AR9320T ideal for sailplane enthusiasts.

Spektrum AR9320T Features

  • Built-in variometer and altitude sensor
  • Compatible with all Spektrum DSMX transmitters
  • Compact design fits most parkflyer size and larger aircraft
  • Capable of 11ms frame rates
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
  • Receiver pack voltage and flight log data available without the need for additional sensors
  • Dual antennas for optimal RF performance
  • Extended antennas designed for optimal performance with carbon fuselage aircraft

What's in the box:

  • Spektrum AR9320T 9-Channel Carbon Fuse Integrated Telemetry Receiver
  • Remote Receiver
  • Remote Receiver Extension
  • Aircraft Telemetry Volt Sensor
  • Spektrum 1 Year Limited Warranty
