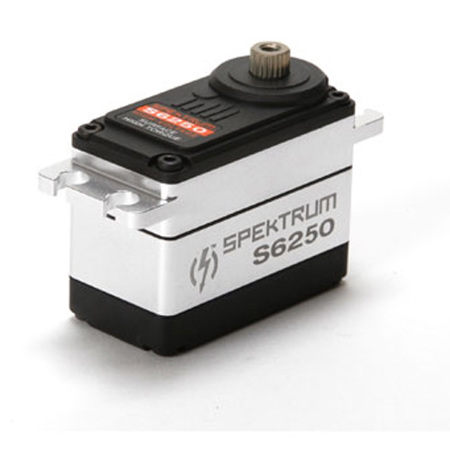

Spektrum S6250 Ultra Torque High Speed Digital HV Waterproof Metal Servo

SKU: SPMSS6250 MFR: SPMSS6250
$119.99
$135.99
Save: $16 (12%)
Earn VIP Reward Points

Key Features

  • Experience ultra torque with the Spektrum S6250 servo, enhancing your RC vehicle's performance.
  • High-speed digital servo ensures rapid response times for precise control of your RC buggy or truck.
  • This waterproof metal gear servo is built for durability, perfect for all-weather RC adventures.
  • Enjoy versatile application with this servo, compatible with 1/10 & 1/8 scale buggies and trucks.
  • The Spektrum S6250 servo features a removable wire harness for easy installation and maintenance.
  • Operates up to 8.4V, providing maximum power and efficiency for your RC vehicle's servo system.
See More Product Details
Special Order?Estimated to Ship: 08/28/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Spektrum S6250 Specifications

  • Servo Type

    Digital

  • Application

    1/10 Buggy, Truck, 1/8 Buggy, Truck

  • Torque

    271 oz-in (19.5kg-cm) at 6V
    339 oz-in (24.4kg-cm) at 7.4V
    382 oz-in (27.5kg-cm) at 8.4V

  • Speed

    0.13 sec/60 deg. at 6.0V
    0.11 sec/60 deg. at 7.4V
    0.09 sec/60 deg. at 8.4V, at no load

  • Bushing or Bearing

    Bearing

  • Bearing

    Dual

  • Motor Type

    Coreless

  • Connector Type

    Z-connector, removable

  • Gear Type

    Metal

  • Gear Material

    Steel, Aluminum

  • Current Draw Idle

    9.8mA at 6.0V

  • Current Draw Stall

    4900mA at 6.0V

  • Voltage

    Up to 8.4V

  • Deadband

    4mus

  • Dimensions (LxWxH)

    1.61 x 0.82 x 1.25" (4.09 x 2.08 x 3.18cm)

  • Weight

    2.3 oz (65.20g)

  • UPC Code

    605482585252

About Spektrum S6250

A cutting-edge addition to the Spektrum surface servo range, the S6250 Ultra Torque High Speed Digital HV Waterproof Metal Servo is specifically designed to deliver exceptional performance for 1/10th to 1/8th scale vehicle applications. Engineered for high-voltage operations of up to 8.4V, this standard size servo stands out in the market with its advanced features and robust construction.

One of the key innovations of the S6250 HV servo is its removable wire leads, a feature that not only allows for customization of lead length but also simplifies maintenance. This thoughtful design element ensures that your servo can adapt to various installation scenarios and can be easily serviced when needed.

Moreover, this high-speed digital servo is built with all-metal mounting tabs, ensuring secure installation and enduring performance even under extreme conditions. Its waterproof construction further enhances its durability, making it an ideal choice for applications that may expose it to moisture or water.

In summary, the Spektrum S6250 Ultra Torque High Speed Digital HV Waterproof Metal Servo combines high-voltage capability, speed, and durability, offering a reliable solution for your scale vehicle applications.

Spektrum S6250 Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof

Key Features

  • Experience ultra torque with the Spektrum S6250 servo, enhancing your RC vehicle's performance.
  • High-speed digital servo ensures rapid response times for precise control of your RC buggy or truck.
  • This waterproof metal gear servo is built for durability, perfect for all-weather RC adventures.
  • Enjoy versatile application with this servo, compatible with 1/10 & 1/8 scale buggies and trucks.
  • The Spektrum S6250 servo features a removable wire harness for easy installation and maintenance.
  • Operates up to 8.4V, providing maximum power and efficiency for your RC vehicle's servo system.

What's in the box:

  • Spektrum S6250 Ultra Torque High Speed Digital HV Waterproof Metal Servo
  • Removable Wire Harness
  • Spektrum 1 Year Limited Warranty
