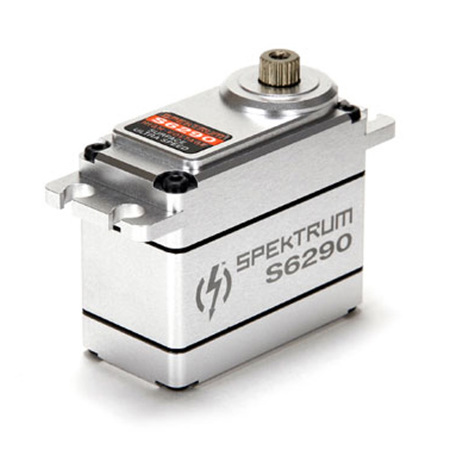

Spektrum S6290 Ultra Torque High Speed Digital HV Waterproof Metal Servo, 331 oz-in at 8.4V

SKU: SPMSS6290

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Spektrum S6290 Specifications

  • Servo Type

    Digital

  • Application

    1/8 Off-Road

  • Torque

    238 oz-in (17.1kg-cm) at 6V
    292 oz-in (21.0kg-cm) at 7.4V
    331 oz-in (23.8kg-cm) at 8.4V

  • Speed

    0.09 sec/60 deg. at 6.0V
    0.08 sec/60 deg. at 7.4V
    0.07 sec/60 deg. at 8.4V, at no load

  • Bushing or Bearing

    Bearing

  • Bearing

    Dual

  • Motor Type

    Coreless

  • Connector Type

    Z-connector

  • Gear Type

    Metal

  • Gear Material

    Steel, Aluminum

  • Current Draw Idle

    10.2mA at 6.0V

  • Current Draw Stall

    4900mA at 6.0V

  • Voltage

    6.0-8.4V

  • Deadband

    2mus

  • Dimensions (LxWxH)

    1.61 x 0.82 x 1.38" (4.09 x 2.08 x 3.51cm)

  • Weight

    2.8 oz (79.38g)

  • UPC Code

    605482578353

About Spektrum S6290

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. This servo feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Spektrum S6290 Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof

What's in the box:

  • Spektrum S6290 Ultra Torque High Speed Digital HV Waterproof Metal Servo
  • Removable Wire Harness
  • Spektrum 1 Year Limited Warranty
