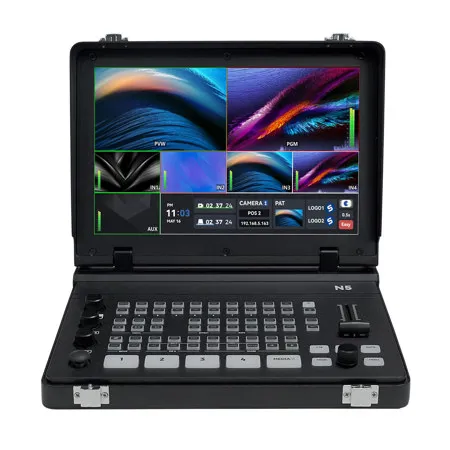

Sprolink NeoLIVE N5S 5-Channel HDMI/SDI Live Streaming Video Mixer Switcher with 10.1" Touchscreen Display

The Neolive N5 series launches a newly upgraded multi-function broadcast switch with a new laptop style design. It has 10.1 inches. Flip over the touchscreen and the N5S model includes 8 inputs with 4 X inputs as input options, i.e. 4 x SDI and 4 x HDMI inputs. The models have 2 HDMI output ports. Additionally, the N5S model is equipped with 1 x SDI output port. Both models support NDI input, lower third dynamic text overlay and MV preview output and recording. The built-in hardware streaming engine is compatible with a variety of streaming software, providing high-quality multi-camera production for multi-platform live streaming.

Super source output
Neolive N5 series supports super source multi-input as output combination.

Multi-function input
Neolive N5 series features multi-function inputs for direct playback of media video sources From a USB drive or connected to a UVC camera without a converter. It also supports NDI, SRT and RTMP protocols Feed remote video into the switch and use it as an input source for local live streaming.

N5S has 4 out of 4 selectable input channels
The N5S features 4 x 3G-SDI ports and 4 HDMI ports, allowing 4 x flex input options from the ports. 8X inputs provide more application flexibility. HDMI ports 1 and 2 support 4K input.

Dual channel live streaming
Neolive N5 Series built-in hardware streaming engine allows direct streaming over Ethernet computer. Once you select your live streaming platform, simply enter your stream key into the built-in web Servers to stream in high quality without frame drops on platforms like TikTok, Instagram, YouTube or Facebook.

N5S supports 3x Output and multi-angle monitoring
The Neolive N5 series features dual HDMI outputs and 1 x SDI output, allowing separate PGM and MV output. This setup enables the use of three display terminals at the same time Ideal for real-time scenarios requiring multiple monitors.

Support NDI input (optional)
Neolive N5 series supports NDI input which allows low latency video Obtained via Ethernet cable, simplifying the cabling process.

Built-in media playback
The Neolive N5 series includes a built-in media player that can play videos from storage devices and use these videos as input sources.

Audio input interface for monitoring
The Neolive N5 series is equipped with a headphone monitoring interface, allowing Monitor any input or output audio channel in real time.

Joystick PTZ camera control
It supports up to four PTZ camera controls, making smooth Multi-camera switching via joystick controls.

multiple transition effects
The Neolive N5 series offers a variety of transition effects, including fade-outs, Wipe, dip and dve. It also has a sustain button that adjusts from 0.5 to 1.5 seconds to create smooth scene changes.

Built-in blender for real-time audio mixing
The Neolive N5 range includes professional audio mixers that support both AFV and mixed audio modes for seamless blending of HDMI embedding audio and external audio sources.

Lower third dynamic coverage
Neolive N5 series supports multiple lower third dynamics Overlay for richer visuals and simple transitions.

Virtual color tint algorithm
Neolive N5 series comes with powerful cinematic colors Key algorithm, which uses a color picker to taste the background color and automatically generates bonding parameters to provide precise edges and live controls, making it a great tool for news broadcasts or live broadcasts speech!

e-commerce live streaming
The Neolive N5 series is the best choice for e-commerce live streaming studios, it can achieve multi-scene switching during online product demonstrations, and it is compact and portable design, making it more flexible in studio rooms with limited room.

Various activities and performances
The lightweight nature of the Neolive N5 Series makes it easy to transport and deploy at various events and performances. It comes with built-in scene presets that can be easily accessed and saved. Additionally, it can record a series of instructional videos, which can be copied to a USB drive or external hard drive for future use.

Conference speech
In company meetings, the Neolive N5 series can support multi-scene switching, such as one camera as a close-up view, another as a wide-angle view, a computer for PPT presentations, and it also supports PIP, which can enhance a better visual experience.

Education and training
The Neolive N5 series can create virtual teaching scenarios to meet the needs of online education through the use of multi-camera setups and its one-click Chroma key feature. Additionally, it can copy a series of recorded educational videos to a USB drive or external hard drive using its real-time production solution.
