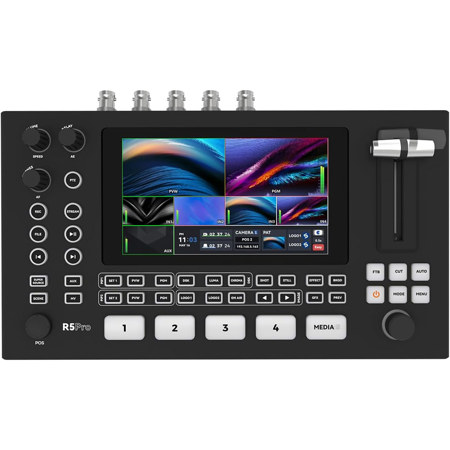

Sprolink NeoLIVE R5Pro-S HDMI/SDI Live Streaming Video Mixer Switcher with 5.5" Display

The NeoLIVE R5PRO-S is a newly upgraded multi-functional broadcast switcher with a brand-new design language. It features 8 x input channels with 4 x selectable channels, including 4 x SDI and 4 x HDMI inputs, with the first two HDMI inputs supporting 4K. It also supports 2 x HDMI output interfaces and 1 x SDI output interface. Additionally, it comes with an optional NDI input, totally 5 x input channels, and multi-picture combination transitions. It supports dynamic Lower Third overlay, variable MV output channel and built-in recording. The device is equipped with a hardware streaming engine that can match various streaming software, creating high-quality and professional multi-camera production and enabling live streaming on multiple platforms and networks.

Super Source Output
NeoLIVE R5PRO-S Support super source multi-input combined as output.

Support 4 in 8 optional Input channels (4 x SDI and 4 x HDMI)
With 4 x 3G-SDI ports and 4 HDMI ports, the N5S allows 4 x flexible input options from the 8 x inputs, offering more application versatility. HDMI ports 1 and 2 support 4K input.

Dual Channel Streaming via Ethernet
The NeoLIVE R5PRO-S includes a hardware streaming engine that supports live streaming via Ethernet without computer. Users are able to stream by inputting RTMP code via the built-in web server to realize smooth and high-quality stream in TikTok & Facebook.

R5PRO-S Support 3xOutput and Multi-Angle Monitoring
The NeoLIVE N5 series features dual HDMI outputs and 1 x SDI output, allowing separate PGM and MV outputs. This setup enables up to three display terminals to be used simultaneously, making it ideal for live scenarios that require multi-monitor viewing.

Supports NDI Input (Optional)
The NeoLIVE R5PRO-S Series supports NDI input, which allows for low-latency video acquisition via Ethernet cable, simplifying the cabling process.

SD Card and External Hard Drive Video Recording
The NeoLIVE R5PRO-S Series allows for direct recording of live video and audio into USB drives or external hard drives, making post-event editing easier and allowing for long-term storage or documentation.

Multi-Functional Input
The NeoLIVE R5PRO-S features a multi-functional input that can directly play media video sources from a USB drive or connect to a UVC camera without converters. It also supports NDI, SRT, and RTMP protocols to stream remote video feeds into the switcher and use them as an input source, achieving local live streaming.

Joystick Control PTZ Cameras
Supports to control five PTZ cameras via joystick, facilitating multi-camera switching easily.

Support USB Image Load in JPG/PNG Format
The NeoLIVE R5PRO-S supports direct import of image files via USB disk, compatible with jpg and png formats, it is a troubleshooter for multiple device connection.

Equipped with Audio mixer to facilitate Real Time Mixing
The NeoLIVE R5PRO-S is built in professional audio mixer that supports both AFV and MIX audio modes, enabling mixing output of embedded HDMI audio and multi external audio.

Equipped with Audio Input for Real-time Monitoring
NeoLIVE R5PRO-S is equipped with a headphone monitoring, enabling real-time monitoring of any input or output audio channel.

Virtual Chroma Key Algorithm
NeoLIVE R5PRO-S is equipped with a powerful cinematic-level chroma key algorithm, which uses a color picker to sample the background color and automatically generate keying parameters, providing precise edge and spot control, making it a great tool for news broadcasts or live presentations!

E-commerce Live Streaming
NeoLIVE R5PRO-S is the best choice for e-commerce live streaming rooms. It supports multi-camera switching, capturing wide-angle or close-up shots between the host and the products. Its compact and portable design allows for flexible operation and switching in limited live streaming space.

Various Event Performances
The NeoLIVE R5PRO-S is portable and easy to carry allowing it to handle various events and performances. It has multiple built-in scene modes that can be easily recalled and saved. Additionally, you can copy the live production plans and recorded instructional videos to a USB drive or an external hard drive.

Business Presentation
In business meetings, NeoLIVE R5PRO-S can achieve multi-camera switching. The PTZ camera angle can be controlled and preset by joystick. One camera can be set for close-up shot, another for wide-angle shot, and an additional computer can be used for PPT presentation. The PIP feature can also be used to enhance the visual experience of business presentation.

Education and Training
NeoLIVE R5PRO-S support multi-camera setups and chroma key function to create virtual teaching scenes, meeting the needs of online education. Recorded instructional videos can be copied to a USB drive or an external hard drive.
