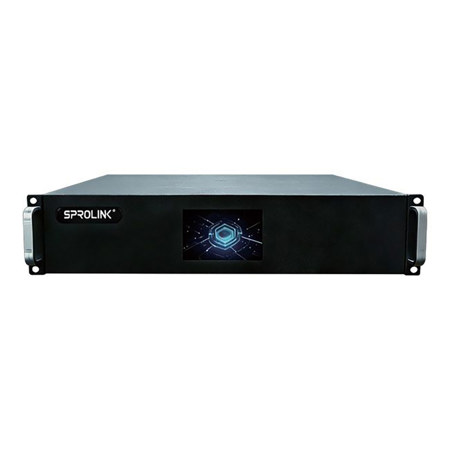

Sprolink VD-8K 2U 8K HDMI 2.0 Video Wall Processor with RS232 Control

The VD8K-2U adopts a true 8K 4:4:4 lossless architecture and is equipped with universal full 8K input interfaces including DP2.1, HDMI2.1, DP1.4, and TY PE-C. It supports custom resolution input with a maximum horizontal input resolution of 16K. The device fully supports 8K@60Hz 4:4:4 signal transmission and is backward compatible with 8K@30Hz. It features 4-channel HDMI2.0 4K@60Hz output , along with support for custom resolution settings, pixel-perfect display and scaling processing, multi-channel signal switching and redundancy backup, Genlock frame synchronization and audio processing. Operational control is available via network, direct mouse input, and touchscreen.

8K Lossless Image Quality Architecture
Industry-leading support for the DisplayPort 2.1protocol, enabling pixel-perfect 8K@60Hz 4:4:4 lossless transmission. It breaks through the limitations of 4:2:0 processing to deliver ultimate ultra-high-definition visuals, while also supporting full-bandwidth transmission via MAC Thunderbolt ports.

Full-Interface 8K Input Support
Fully compatible with four types of 8K input interfaces-HDMI 2.1, DP 1.4, DP 2.1, and Type-C. It meets the ultra-HD signal input requirements of diverse devices, supporting signal sources such as graphics cards, professional players, and servers. It also allows 8K custom resolution input, with a maximum width of 15360 x2160@60.

Flexible Output Expansion
Equipped with 4 HDMI 2.0 4K@60 output channels and supporting custom load configurations. It enables multiple output mode s including single-screen independent display and multi-screen splicing, adapting to combinations of display terminals of different specifications.

Full-Resolution Adaptability
Supports arbitrary non-standard custom resolutions, with a maximum horizontal input resolution of 16K. It perfectly matches non-standard display devices such as 8K/16K LED large screens, solving resolution compatibility challenges in special scenarios.

Diversified Control Methods
Supports multiple control modes including network control, direct mouse control, touchscreen control, and RS232 central control. Combined with a rich visual control interface, it ensures convenient and efficient operation.

Audio-Video Co-processing
Supports separate output of embedded audio and analog audio, paired with a multi-channel signal switching and backup mechanism. It not only meets the requirements of synchronized audio-video processing but also enhances system operational stability.

Genlock Frame Synchronization Function
Integrated with Genlock input and loop-through interfaces, it accurately realizes synchronized out put of multi-channel signals. This eliminates issues such as screen tearing and latency, ensuring consistency in ultra-high-definition.
