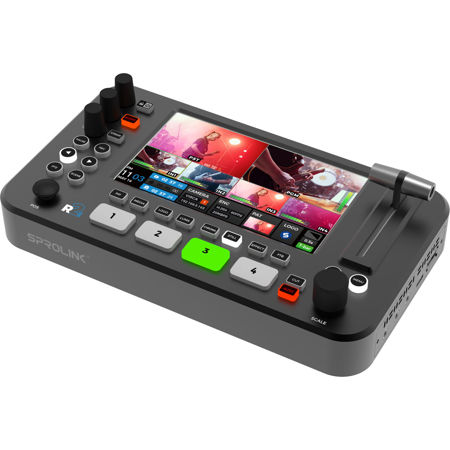

Sprolink NeoLIVE R2 Plus Video Mixer Switcher with 5.5" LCD Touch Screen

SKU: SPS18NELVE02 MFR: S180-NEO-LVE-02
Earn VIP Reward Points

Key Features

  • Effortlessly switch between 4 HDMI inputs with this Sprolink video switcher for seamless live streaming.
  • Enjoy low latency video (<3 frames) for smooth, professional-quality video productions every time.
  • The 5.5" LCD touch screen offers intuitive control, making setup and operation incredibly easy.
  • Stream directly via USB 3.0 at 1080p@60fps, ensuring high-resolution and reliable connectivity.
  • Wide compatibility: Connect mics & headphones via 3.5mm jacks for superior audio integration.
  • Compact & lightweight (1.1 lbs), this HDMI video mixer is great value and perfect for on-the-go use.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sprolink NeoLIVE R2 Plus Specifications

Connector

Connector

Jump to...
  • Input

    HDMI 1.3, 4xHDMI-A, HDMI Source Interface
    USB 2.0, 1xUSB Type-A, Load Image / Recording

  • Output

    HDMI1.3, 2xHDMI-A, PGM Output
    USB 3.0, 1xUSB Type-C, UVC Output Interface
    USB 2.0 1xUSB Type-C Tally Interface

  • Audio

    IN, 2x3.5mm stereo Jack, MIC / LINE Stereo Input
    PHONES, 1x3.5mm stereo Jack, Monitoring Output

  • Communication

    LAN
    1xRJ45
    Lan Port Control
    Lan Port Stream
    PTZ Control

Output resolutions

Jump to...
  • USB3.0

    Video Streaming
    1080p@24/30/50/60

Performance

Jump to...
  • Video Sampling

    YUV 4:4:4

  • Latency

    <3 frame

  • Audio latency

    0-2000ms

  • Input Voltage

    12V/1.5A

  • Constant power

    18W

Environment

Jump to...
  • Temperature

    32 to 158 Degree F (0 to 70 Degree C)

  • Humidity

    10%-85%

Physical

Jump to...
  • Dimensions

    721.78 x 413.38 x 108.26' (220 x 126 x 33mm)

  • Weight

    1.10 lbs (500g)

  • UPC Code

    768788101615

About Sprolink NeoLIVE R2 Plus

Why settle for less when you can have the best with the NeoLIVE R2 Plus Video Mixer Switcher This state-of-the-art device features a large 5.5-inch 1080p LCD touch screen, providing a clear and vibrant display for all your video mixing needs. The addition of a special joystick makes controlling PTZ cameras a breeze, simplifying your operations.

The NeoLIVE R2 Plus is equipped with 4 HDMI inputs and 2 HDMI outputs, allowing you to connect up to 4 independent cameras for diverse picture angles. The dual HDMI outputs support multiview monitoring simultaneously, enhancing your video production capabilities.

This video mixer switcher is not just about video; it also supports high-end multicam live streaming directly via RTMP Code on popular platforms like TikTok, YouTube, and Facebook. It comes with two microphone interfaces for audio monitoring across any channel, ensuring your audio is as crisp as your visuals.

The NeoLIVE R2 Plus also supports high-quality live streaming and recording at 60 fps through a powerful Type-C interface. It offers convenient live video recording with USB Disk and HDD, making your video production process more efficient.

This device is not just functional but also creative, offering a cinema-level chroma key algorithm and a variety of built-in transitions. The edge blending effect can be achieved through the T-Bar transition, making it an ideal choice for various events like weddings, business conferences, live talk shows, concerts, and seminars.

The user-friendly design of the NeoLIVE R2 Plus includes a power switch and button lock & unlock feature to prevent accidental operations. This fully upgraded live streaming switcher supports signal switching, live streaming, PTZ control, audio mixing, and a plethora of transition effects, making it a comprehensive broadcasting switcher.

The NeoLIVE R2 Plus is also perfect for e-commerce live streaming studios, educational and training applications, business presentations, live streaming eSports competitions, and more. Its compact and portable design makes it a flexible choice for any setting.

With the NeoLIVE R2 Plus, you can connect 4 independent cameras, live stream via RTMP Code through your phone or iPad, record your streaming data in HDD, and even connect wireless microphones for real-time audio monitoring. The joystick control allows for remote PTZ camera settings adjustments, enhancing your multi-cam switching capabilities.

In conclusion, the NeoLIVE R2 Plus Video Mixer Switcher is a powerful, versatile, and user-friendly device that takes your video production and live streaming to the next level. Experience the difference with NeoLIVE R2 Plus.

Sprolink NeoLIVE R2 Plus Features

  • 5.5" 1080P Display with Better Image Quality
  • Type-C for USB3.0 Live Stream
  • Dual Channel RTMP Stream via Ethernet
  • Recording on USB Flash Disk & Portable HDD
  • Support 4 x HDMI Input for 4 x Cameras
  • Joystick Control PTZ Camera Easily
  • Load PNG Logo& JPG File Directly via USB Flash Disk
  • Dual HDMI Output for PGM
  • FADE, DIP, DVE, MIX & More Transition Effects
  • Built-in Audio Mixer
  • Built-in Audio/Line Port for Monitoring
  • Support Multi Low Third Switch
  • Built-in Web Server to Control via Browser

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Effortlessly switch between 4 HDMI inputs with this Sprolink video switcher for seamless live streaming.
  • Enjoy low latency video (<3 frames) for smooth, professional-quality video productions every time.
  • The 5.5" LCD touch screen offers intuitive control, making setup and operation incredibly easy.
  • Stream directly via USB 3.0 at 1080p@60fps, ensuring high-resolution and reliable connectivity.
  • Wide compatibility: Connect mics & headphones via 3.5mm jacks for superior audio integration.
  • Compact & lightweight (1.1 lbs), this HDMI video mixer is great value and perfect for on-the-go use.

What's in the box:

  • Sprolink NeoLIVE R2 Plus Video Mixer Switcher
  • Sprolink 1 Year Limited Warranty
