SmallRig 3140 Specifications

Full Camera Cage

Full Camera Cage

Jump to...
  • Material

    Aluminum Alloy

  • Compatibility

    Canon R5/R6/R5 C Camera

  • Dimensions

    Cage: 6.04 x 2.5 x 4.40" (153.5 x 63.5 x 112mm)
    Kit: 6.49 x 6.10 x 3.34" (165 x 155 x 85mm)

  • Weight

    Cage: 6.34 oz (180g)
    Kit: 7.07 oz (200.5g)

Wooden Universal Side Handle

Jump to...
  • Material

    Aluminum Alloy, Brazilian Rosewood

  • Compatibility

    Camera Cages via 1/4"-20 threaded hole

  • Dimensions

    4.13 x 2.71 x 2.63" (105 x 69 x 67mm)

  • Weight

    6.77 oz (192g)

HDMI & USB-C Cable Clamp

Jump to...
  • Material

    Aluminum Alloy

  • Compatibility

    Canon R5/R6/R5 C Camera Cage

  • Dimensions

    2.51 x 1.10 x 0.98" (64 x 28 x 25mm)

  • Weight

    1.41 oz (40g)

  • UPC Code

    6941590003320

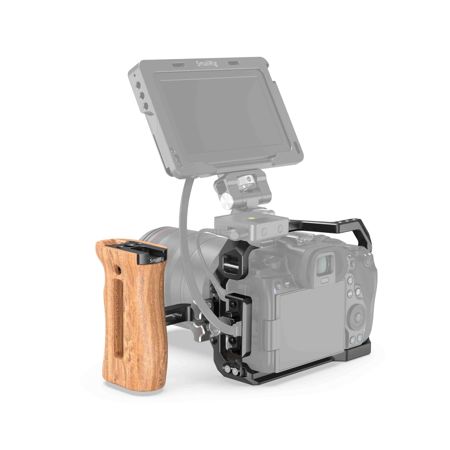

About SmallRig 3140

- Full Camera Cage -
SmallRig Camera Cage for Canon EOS R5/R6/R5 C 2982 maintains access to the camera's controls and features a variety of mounting options. In addition to the built-in NATO rail on the top, one cold shoe mount and multiple 1/4"-20 and 3/8"-16 threaded holes, this formfitting aluminum cage features several ARRI-style mounts for preventing accessories from twisting when mounted on the cage. The cage also incorporates two anti-twist pins on the base plate in addition to the 1/4"-20 camera mounting screw so your camera can't move around in the cage.

You can attach SmallRig Top Handle 1984 or HTN2439, SmallRig Wooden Side Handle 2093 for hand-held shooting, and SmallRig Cable Clamp 2981 to protect the HDMI and USB-C cables. ARRI-style mounts on the top and side are provided to attach SmallRig ARRI Locating Handle 2165 or SmallRig Ball Head Magic Arm 2115. Strap holes are included to add a separately available hand strap PAC2456, PSW2398 or neck strap PSC2428 to your rig. Besides, a screwdriver is built into the bottom of the cage for tightening the camera screw.

Features
• Formfitting Full Cage
• Firmly Fixed to Camera by a 1/4"-20 Screw and Anti-twist Pins
• 1/4"-20 & 3/8"-16 Threads and ARRI-style Mounts
• Integrated NATO Rail and Cold Shoe Mount
• Built-in Screwdriver on the Bottom


- Wooden Universal Side Handle -
SmallRig Universal Wooden Side Handle HSN2093 is designed to provide a comfortable grip for increasing stabilization and accessory mounts for cameramen. The handle attaches to the cage or camera rig with two 1/4"-20 thumbscrews and it can be attached to both left and right side by adjusting the connector. Featuring 3/8"-16, 1/4"-20 and cold shoe mount accessory mounts on top to add a light, microphone, monitor, mounting arm, or other accessories, such as Monitor Mount 2294 and Monitor Mount 2346.

The screws attach to a sliding mechanism that allows you to slide the handle up and down within a range of 39.7mm for your preferred position. A built-in Allen wrench allows to adjust the handle position and for further secure. The smooth wood handle provides a solid, comfortable grip and it also works well in the situation of low temperature.

Features
• Ergonomic Wooden Side Handle for Camera Cage
• Can Be Configured for Right or Left Hand
• 1/4"-20 & 3/8"-16 & Cold Shoe Accessory Mounts
• Adjusts up & down with Sliding Connector
• Integrated Hex Spanner for Direction Changing and Height Adjusting
• Lightweight and Durable


- HDMI and USB-C Cable Clamp -
SmallRig HDMI and USB-C Cable Clamp for EOS R5/R6/R5 C Cage 2981 is compatible with SmallRig Cage 2982. Designed to prevent the camera's HDMI and USB Type-C cables from accidentally disconnecting, this clamp attaches to the side of the cage using two M3 Screws and fixes the cables using two knurled 1/4"-20 screws. Each screw adjusts a sliding block that can be tightened to accommodate varying diameters. This Cable Clamp is constructed of a sturdy aluminum alloy and comes with an Allen wrench.

Features
• For SmallRig R5/R6/R5 C Cage 2982
• Attaches to cage with two M3 screws
• Secures both HDMI and USB-C cables
• Prevents Accidental Cable Disconnects

SmallRig 3140 Features

  • Formfitting Full Cage for Canon EOS R5/R6/R5 C
  • Firmly Fixed to Camera by a 1/4"-20 Screw and Anti-twist Pins
  • 1/4"-20 & 3/8"-16 Threads and ARRI-style Mounts
  • Integrated NATO Rail and Cold Shoe Mount
  • Built-in Screwdriver on the Bottom

Key Features

  • Formfitting Full Cage for Canon EOS R5/R6/R5 C
  • Firmly Fixed to Camera by a 1/4"-20 Screw and Anti-twist Pins
  • 1/4"-20 & 3/8"-16 Threads and ARRI-style Mounts
  • Integrated NATO Rail and Cold Shoe Mount
  • Built-in Screwdriver on the Bottom

What's in the box:

  • Full Camera Cage (2982)
  • Wooden Universal Side Handle (2093)
  • HDMI and USB-C Cable Clamp (2981)
  • SmallRig 2 Year Limited Warranty
