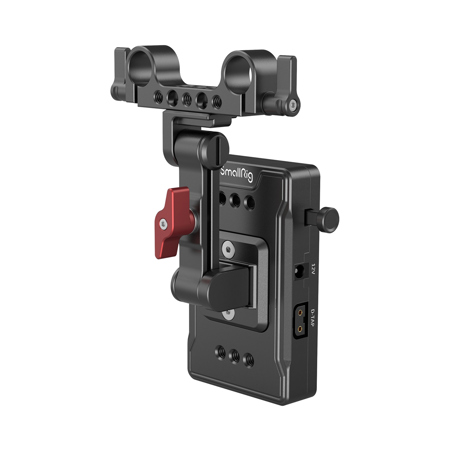

SmallRig Basic V-Mount Battery Adapter Plate with Extension Arm

SmallRig V Mount Battery Adapter Plate (Basic Version) with Extension Arm 3499B can be quickly attached to a 15mm LWS rod system using the adjustable extension arm with a dual rod clamp. This battery adapter plate features a standard V-Mount that is compatible with most V-Mount batteries. It incorporates six 1/4"-20 threaded holes and ten M4 threaded holes on the back, as well as five 1/4"-20 threaded holes on the top and bottom, allowing for the attachment of a dual rod clamp and other accessories.

It is equipped with two USB-C input / output ports (65W Max.) that support PD protocol, and one USB-A output port, that supports QC protocol, for fast charging and discharging. Additionally, it has two D-Tap input / output ports (14.8V) and two DC output ports (DC5521 8V x 1 / DC5525 12V x 1) for versatile power solutions.

The power and charging mode indicator lights show the working status and whether fast or slow charging is in effect. The power on / off button can control multiple ports simultaneously. Furthermore, the adapter plate is constructed from high-strength aluminum alloy, providing robust durability and excellent heat dissipation.

USB-C Charging / Discharging Indicator Light
• Orange Light: Slow charging / discharging
• Blue Light: Fast charging / discharging

Power Indicator Light
• Light On: Powered on
• Light Off: Powered off

Power On / Off Button
• Power On: Tap the button;
• Power Off: Press the button for 2 seconds
• USB-C, D-Tap, and DC Output Unavailable after Powering Off
• D-Tap and USB-C Input Available after Powering Off
