SmallRig VB50 50Wh Mini V-Mount Li-Ion Battery
See all SmallRig items

SmallRig VB50 50Wh Mini V-Mount Li-Ion Battery

SKU: SR3579

This item is no longer available.

Recommended Alternatives

SmallRig VB50 Mini: Picture 1 regular
SmallRig VB50 Mini 49.436Wh 14.54V 3400mAh Lithium-Ion V-Mount Battery
$129.99$90.99
SmallRig VB99 Mini: Picture 1 regular
SmallRig VB99 99Wh 6800mAh Mini V-Mount Li-Ion Battery
$199.99$139.99
SmallRig VB155: Picture 1 regular
SmallRig VB155 155Wh Mini V-Mount Li-Ion Battery
$339.99$220.99
SmallRig VB99 Kit: Picture 1 regular
SmallRig VB99 98.872Wh 14.54V 6800mAh Li-Ion mini V-Mount Battery w/Assembly Kit
$209.99$146.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What devices can the VB50 50Wh Mini V-Mount Li-Ion Battery power?

The VB50 50Wh Mini V-Mount Li-Ion Battery can power a wide range of devices including cameras, camcorders, monitors, wireless video transmitters, video lights, mobile phones, and laptops, thanks to its variety of interfaces such as USB-A, USB-C, D-tap, DC 8V, DC 12V, and V Mount.

What are the safety features of the VB50 50Wh Mini V-Mount Li-Ion Battery?

The VB50 50Wh Mini V-Mount Li-Ion Battery has multiple safety features. Its intelligent BMS system provides protections against over-current, short-circuit, over-temperature, and over-voltage. The battery is also made from PC heat-resistant and fireproof material for added safety.

How can I monitor the battery status of the VB50 50Wh Mini V-Mount Li-Ion Battery?

The VB50 50Wh Mini V-Mount Li-Ion Battery features a 16bit ADC/power meter algorithm, an MCU, and an OLED digital display, allowing you to easily monitor the battery's status at all times.

What makes the VB50 50Wh Mini V-Mount Li-Ion Battery portable?

The VB50 50Wh Mini V-Mount Li-Ion Battery is approximately 70% the size of a standard V-mount battery. Its compact and lightweight design makes it highly portable for on-the-go photographers and videographers.

Shopper : Why Did You Choose This?MARGARET M : son requested it specificallyJASON H : Looking to power my on-camera monitor and DSLR.DUSTIN S : for my red Komodo x cinema camera for film productionsSEAN S : I have the 99W battery. Looking for something smaller to take on an upcoming trip to Peru.Jessica G : Excellent reviews, ease of use, integrates within the SmallRig family of gear I already have. Bought 2 so I always have extended shoot time and a plan-B backup.

Reviews about this item

Review Summary

2023-03-10T07:24:13

Rated 5 out of 5

Small and efficient

As advertised. Great product

Eric S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SmallRig VB50 Specifications

  • Material

    Fireproof PC Material

  • Capacity

    14.8V 3.4Ah 50Wh

  • Rated Total Power

    Discharge: 50W
    Charge: 45W

  • V-Mount / D-Tap Input

    5A (Max)

  • V-Mount / D-Tap Output

    14.8V / 12A (Max)

  • USB-A Output

    QC2.0 / AFC/FCP: 5V/3A, 9V/3A, 12V/2A
    QC3.0: 4.2-9V/3A, 9-12V/2A
    SCP: 4.5V/5A, 5V/4.5A
    DCP-1.5A: 5V/1.5A
    APPLE-2.4A: 5V/2.4A

  • USB-C Input/Output

    PD3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
    QC2.0/AFC/FCP: 5V/3A, 9V/3A, 12V/2A
    QC3.0: 4.2-9V/2A, 9-12V/2A
    SCP: 4.5V/5A, 5V/4.5A
    DCP-1.5A: 5V/1.5A
    PPS: 3.3-16V/3A
    APPLE-2.4A: 5V/2.4A

  • DC1 Output

    8.0V/Max3A

  • DC2 Output

    12V/Max3A

  • Discharge Cut-Off Voltage

    11V

  • Optional Charging Methods

    16.8V D-Tap Charger, USB-C Charger (Works with USB-C chargers that support PD fast charging, such as GaN chargers, up to 45W)

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    4.21 x 2.87 x 1.33" (107 x 73 x 34mm)

  • Weight

    11.64 oz (330g) (+/-10g)

  • UPC Code

    6941590009001

About SmallRig VB50

FEATURED REVIEWS

Small and efficient

By Eric S.

As advertised. Great product

Mobile Fast Charging, Empowering Your Endless Creativity

Intelligent Chip for High-Power Fast Charging

The BMS intelligent control chip adopts customized system and supports multi-protocol fast-charging. Supports high-power USB-C bi-directional PD fast-charging up to 45W (VB50 mini V Mount Battery) / 65W (VB99 mini V Mount Battery & VB155 mini V Mount Battery).

SR3579

3500mAh Per Battery

Features built-in 3500mAh high-capacity per lithium battery pack, provides high-rate charge & discharge, excellent cycle performance, and powerful output while adding less weight to the camera setup.

SR3579

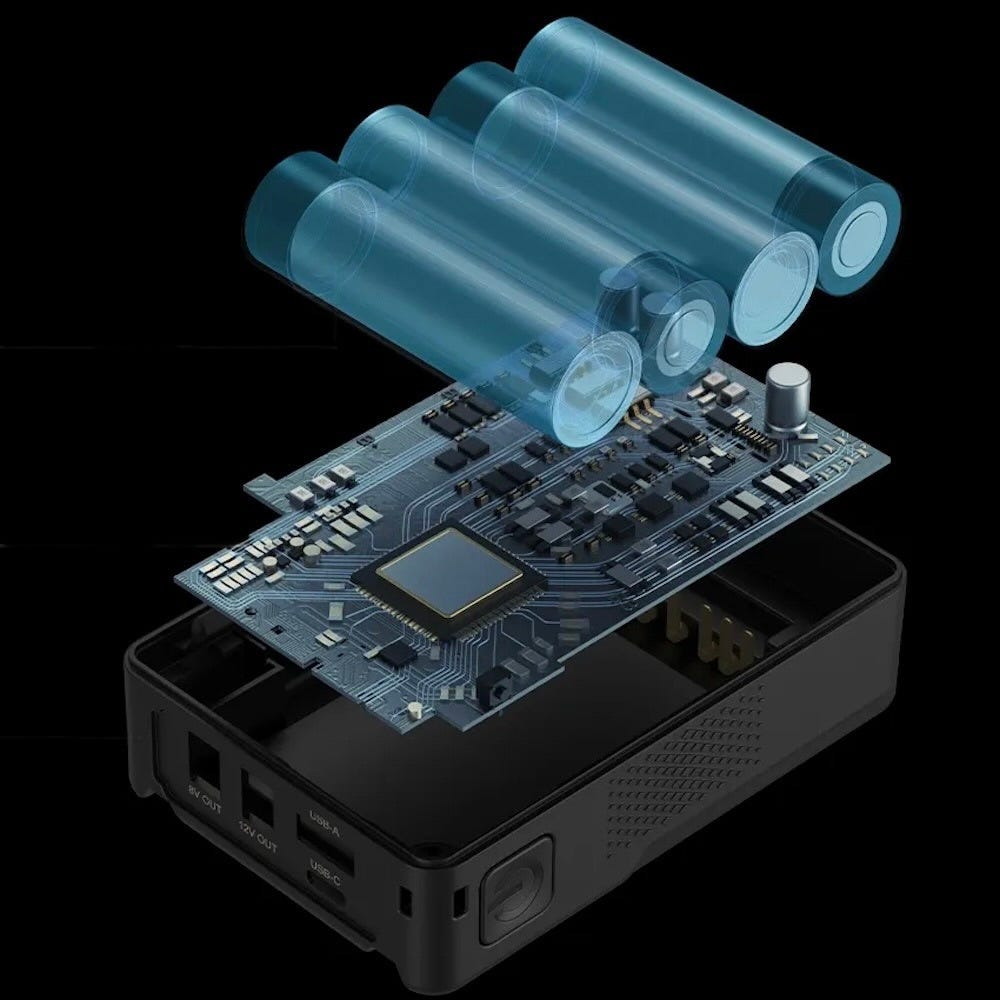

Reliable Protection for Safe Production

Features 18650 MJ1 power cell, makes the cycle charging and discharging more stable. Adopts BMS intelligent control system for adaptive boost & buck / current adjustment. Made of PC heat-resistant and fireproof material, provides safe protection while charging.

SR3579

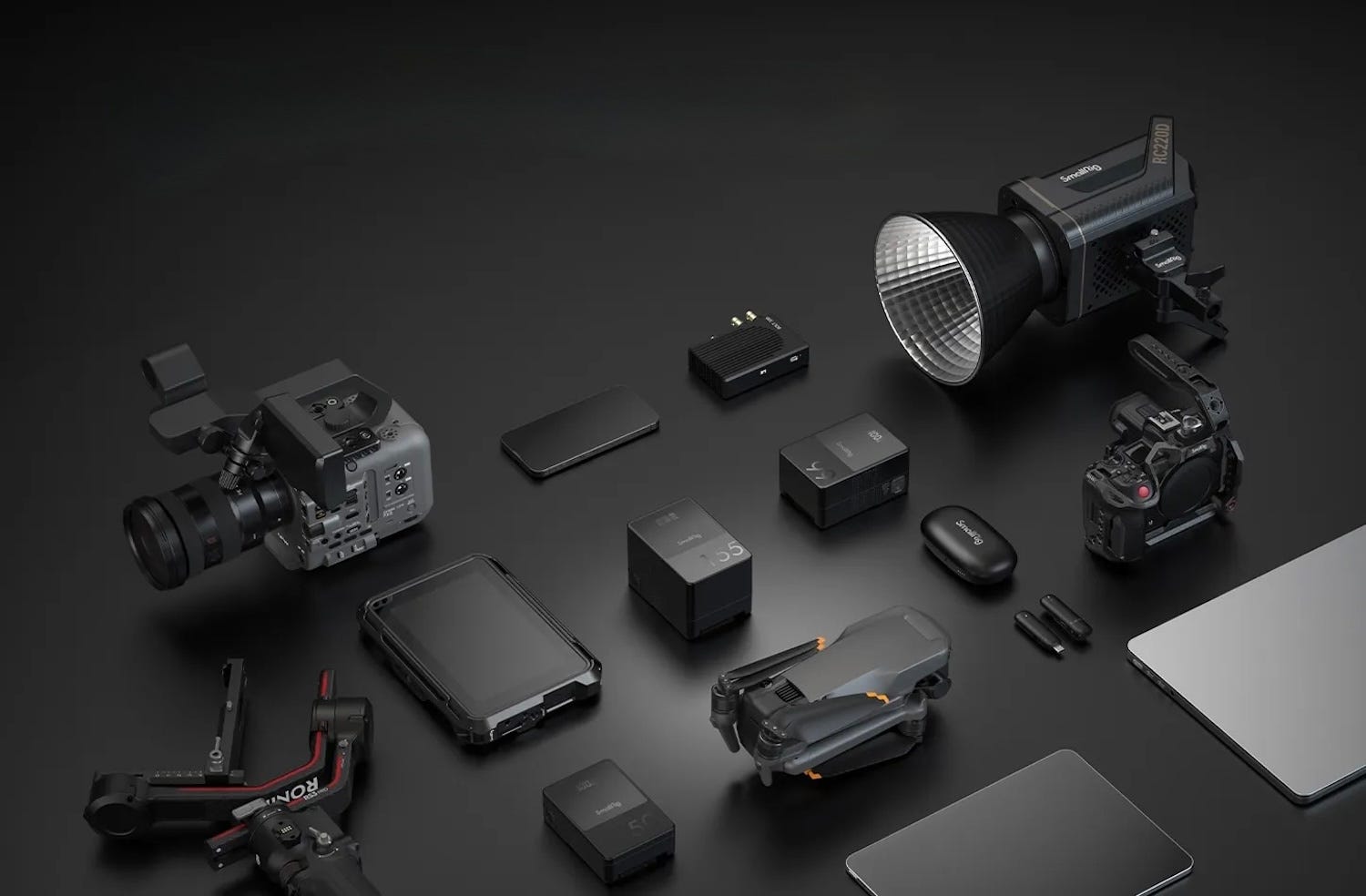

Multiple Interfaces for Wider Compatibility

The battery comes with built-in USB-A / USB-C / D-TAP / DC 8V / DC 12V / V Mount and other interfaces, which can be directly connected to camera/video camera/monitor/image transmitter/video light/mobile phone/laptop or other devices without the need for attaching V Mount battery adapter plate.

SR3579

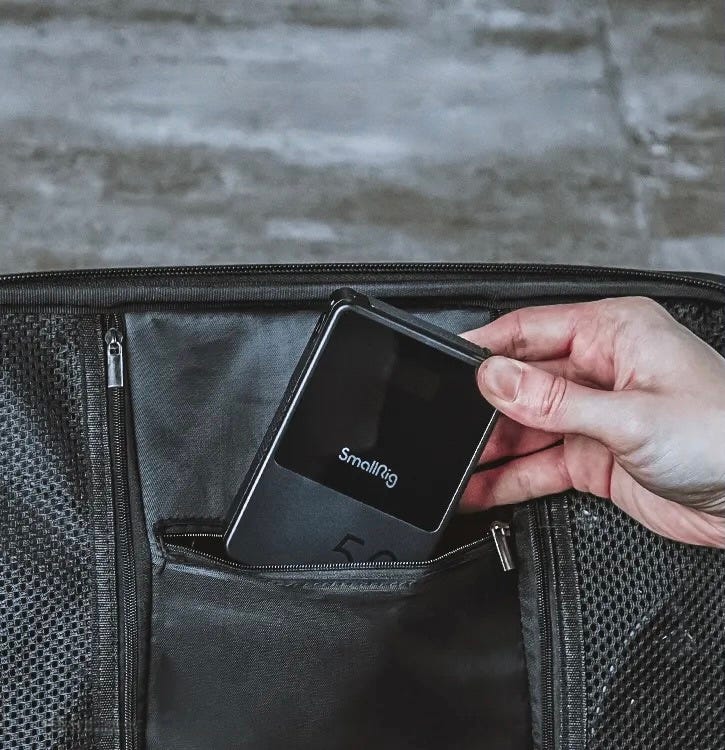

Lightweight and Portable

Compared with other batteries of the same capacity and power, the mini V Mount Battery System is about 30% smaller in size, lightweight and portable.

SR3579

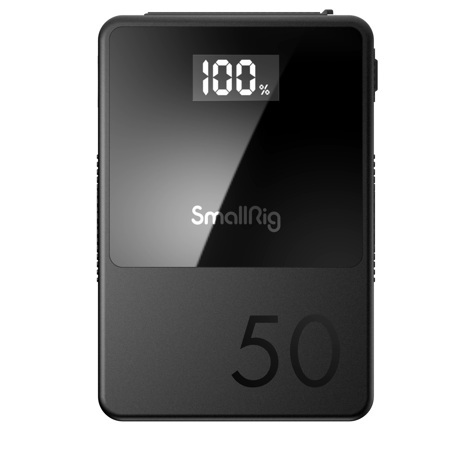

OLED Digital Display

The BMS chip has a built-in 16bit ADC/voltage monitoring system, and is matched with the main control MCU and OLED digital display to accurately check the working status of the battery.

SR3579

Features

  • Compact and lightweight to be carried around: Designed to lighten the burden of the film industry, the VB series are approximately 30% smaller than traditional V-mount batteries
  • Intelligent BMS chip for efficient and safe use: A built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging
  • Various interfaces for high compatibility: Compatible with camera/ camcorder / monitor / wireless video transmitter / video light, etc
  • Practical OLED display for precise control: Keeps track of the battery's working status at all times
  • Premium li-battery with guaranteed quality and safety: Built-in high-capacity premium li-battery, a double guarantee of quality and performance

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compact and lightweight to be carried around
  • Intelligent BMS chip for efficient and safe use
  • Various interfaces for high compatibility
  • Practical OLED display for precise control
  • Premium li-battery with guaranteed quality and safety

What's in the box:

  • SmallRig VB50 50Wh Mini V-Mount Li-Ion Battery
  • User Manual
  • SmallRig 1 Year Limited Warranty
