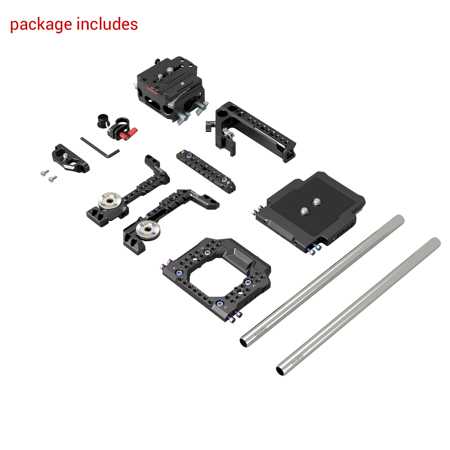

SmallRig Handheld Full Camera Cage Kit for RED V-RAPTOR

SmallRig Cage Kit for RED V-RAPTOR 3696 is designed to attach accessories and protect the camera. With a modular design, either the top plate or bottom plate works independently, providing a lightweight videoing solution. Its top NATO rail can be removed to allow installing DSMC3 REDf Touch 7"LCD, the original monitor. The kit comes with such accessory mounts as 1/4"-20 threaded holes, 3/8"-16 threaded holes, ARRI 3/8" -16 locating holes, NATO rails, cold shoe mounts, ARRI rosettes, 15mm rod clamps for Monitor Mount 2905, Side Grip with ARRI Rosette 1941/1891, etc. for professional video production. The NATO top handle with 15mm rod clamp supports the original monitor.

Among other accessories, the 15mm Manfrotto to ARRI baseplate allows switching scenes and adjusting center of gravity; 15mm stainless steel rod works with mini Follow Focus 3010 and mini Matte Box 3196 to achieve more professional shooting experience; 15mm rod clamp offers a lightweight focus solution; and the adapter ring support protects camera interfaces. Also, an Allen Wrench is included in the bottom plate for easy assembly an disassembly.

Amp Up Your Creative Power

Modular Design for Maximum Flexibility
Adopts form-fitting design, and the included modules can be used independently or combined as a full cage for professional video production.

Cutout Top Structure with Extensive Expandability
• 1/4"-20 Threaded Hole
• ARRI 3/8"-16 Locating Hole
• NATO Rail
• Compatible with the Original monitor from RED

The side plate on both sides features multiple mounting points and stainless ARRI rosette
• 1/4"-20 Threaded Hole
• ARRI 3/8"-16 Locating Hole
• ARRI Rosette
• NATO Rail
• Includes a standard 15mm single rod clamp

Includes a baseplate with a dual 15mm rod clamp to build a quick-release system
• 1 /4"-20 Threaded Hole
• Allen Wrench
• 3/8"-16 Threaded Hole

Multi-Scene Shooting Solutions
• Handheld Solution
• Tripod Solution
• Shoulder Solution

- NATO Top Handle (HTN2439B) -
SmallRig NATO Top Handle HTN2439 is designed to mounts quickly to a standard NATO rail to provide a balanced gripping point for your camera. The handle is able to secures to any cage or top plate features a NATO rail via the thumbscrew. Multiple 1/4"-20, 3/8"-16 and Arri 3/8"-16 threads are provided for accessories such as Monitor Mount 2294 and 2348. The handle integrates with three cold shoe mounts allows mounting Cold Shoe Monitor Mount 2346, one of which is designed with an anti-removal pin. The handle also offers a 15mm rod clamp for rod compatible accessories. Besides, the handle comes with a build in hex spanner allows to re-tighten the thumbscrew to ensure safe.

Features:
• Mounts to Standard NATO Rail
• 1/4"-20 & 3/8"-16 & Arri 3/8"-16 Accessory Mounts
• 15mm Rod Clamp & Three Cold Shoe Mounts
• Built-In Hex Spanner for Re-Tighten

- Baseplate with Dual 15mm Rod Clamp (3067) -
SmallRig Lightweight Baseplate with Dual 15mm Rod Clamp (magnesium alloy version) 3067 is made of magnesium-aluminum alloy, which is about 40% lighter than traditional aluminum alloy. Designed to work with magnesium alloy cage 3065 and to ensure that the distance from the center of the lens to the center of the rods is 85mm. Comes with a detachable pad to adjust the height according to shooting requirements. The bottom of the 3067 is a standard Arri quick-release plate interface and reserves multiple 1/4"-20 and 3/8"-16 threaded holes. While ensuring quick disassembly and assembly, it can also be transferred to other specifications of quick-release plates. On the top is the standard Manfrotto quick release board interface, which can quickly disassemble and assemble the equipment, and can also realize fast switching to the stabilizer shooting.

Features:
• Magnesium aluminum alloy material, 40% lighter than traditional aluminum alloy cage
• Quick release design
• Convenient for fast switching between tripod and stabilizer shooting
• Multiple 1/4"-20, 3/8"-16 threaded holes

- 15mm Single Rod Clamp (3276) -
SmallRig 12mm/15mm Single Rod Clamp for BMPCC 6K Pro Cage 3276 works with SmallRig cage 3270 to provide a perfect follow focus solution for BMPCC 6K Pro camera kit. Locked to the front of the cage via a 1/4 screw and a locating pin, it can be fitted with a 15mm single rod and fixed via a thumb twist knob, allowing easy connection with wireless focus motors such as Nucleus Nano, PD MOVIE, REDROCK.In addition, it is equipped with a 12mm rod clamp adapter, which can install a follow focus device with a 12mm rod. The rod clamp does not interfere with other accessories like cable HDMI cable, SSD cable, etc.

Features:
• Form-fitting 15mm single rod clamp for BMPCC 6K Pro cage
• Works well with other accessories
• Compatible with 12mm and 15mm rods

- 15mm Stainless Steel Rod (3682) -
SmallRig 15mm Stainless Steel Rod - 30cm 12" 3682 is specially designed for professional photographers to carry heavy cameras, cinematographs, and photography accessories. Made of SUS304 stainless steel, it employs a hollow design inside and features lightweight and excellent corrosion resistance and robustness to guarantee its durability in all weather conditions as well as compatibility. It is tested that the standard carrying capacity of SmallRig 15mm Stainless Steel Rod - 30cm 12" (weight difference between the two ends of single rod) is 12kg, suitable for SmallRig 15mm rod clamp systems under -40 Degree C-+70 Degree C.

Features:
• SUS304 stainless steel material
• Excellent corrosion resistance, good robustness, high carrying capacity
• Applicability in -40 Degree C-+70 Degree C extreme environments
• Lightweight design
• Compatible with existing SmallRig 15mm systems
