SmallRig 4062 Top Handle for RED KOMODO/V-RAPTOR/V-RAPTOR XL 4062

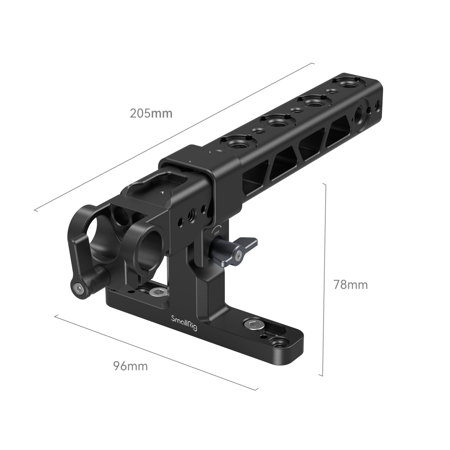

SmallRig Top Handle for RED KOMODO / V-RAPTOR / V-RAPTOR XL 4062 is designed to help carry gear and increase shooting stability, while offers varied accessory mounts. It secures the top of camera via two 1/4"-20 screws, with silicone pad protecting electronic contacts. The handle can be adjusted forwards and backwards without tools to find the center of gravity for comfortable and stable shooting and particularly to ensure easy access to top LCD screen for KOMODO.

Besides, the included 15mm rod clamp, when locked into the front via two M4 screws, connects the handle with DSMC3 RED TOUCH 7.0". Among its accessory mounts, 1/4"-20 threaded holes, 1/4"-20 locating holes and ARRI 3/8"-16 locating holes support Magic Arm 2070, 3783, 2115 for monitor and image transmitter; top cold shoe mount fit microphone and monitor mount; and holes in either side may attach Rod Clamp 3598 for follow focus. You can also mount this handle directly onto the top of KOMODO OUTRIGGER HANDLE or DSMC3 RED TOUCH 7.0".

Note:
• Please attach Rod Clamp 3598 (if needed) to the right side of this handle already mounted onto the top of DSMC3 RED TOUCH 7.0"
• This handle has an anti-off design on one side. For further security, please install one 1/4"-20 screw on the other
