SmallRig Compact V-Mount Battery Mounting System

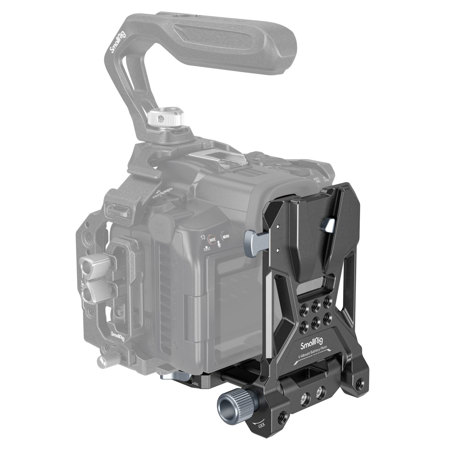

SmallRig Compact V-Mount Battery Mounting System 4064 represents a compact, lightweight, convenient, all-in-one mounting solution for V-mount battery. The kit consists of a V-mount battery plate, an Arca-type quick-release plate, and a V-mount plate. Particularly, the baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes, which is helped by tool-less installation and adjustment, quick and time-saving. Beyond any cage with a built-in Arca-type plate, it can directly support the camera and DJI RS series gimbals via the Arca Swiss quick-release plate.

The V-mount battery plate, featuring 1/4"-20 threaded holes and a V-mount plate, provides more power supply solutions by attaching NP-F Battery Adapter Plate Professional Edition 3168 or Holder for Portable Power Banks BUB2336. Switching between handheld shot and tripod shot is also easier, thanks to the bottom Arca-type plate. The 90-degree rotatable V-mount battery plate leaves enough room for flip screen, with pivot dampening preventing your device from falling. It can be folded down for increased compactness and portability.

L-Shape Integrated Design
The lightweight, compact, and portable integrated power supply solutions allow attaching equipment quickly, without the need for tools!

Access the Camera Flip Screen Anytime
Convenient 90 Degree tilt design.

Maximum Compatibility

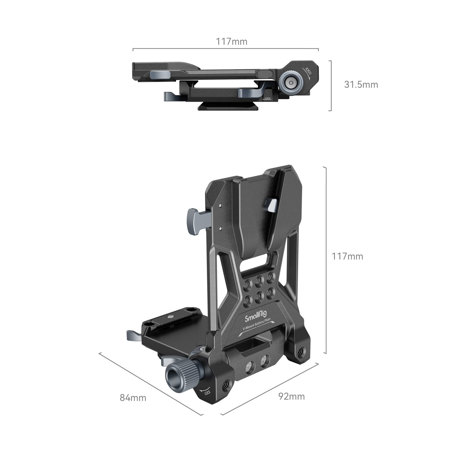

36.5mm / 14.4in stretchable adjustment offers compatibility with different sizes of mirrorless / DSLR cameras.

Double-Sided Quick Release System
The top & bottom incorporate the Arca-Swiss Quick Release System, allowing fast switching between V-Mount Battery Mounting Platform, camera, and compatible tripod head.

Folding Design for Easy Storage
Only weighs 230g / 8.1oz
