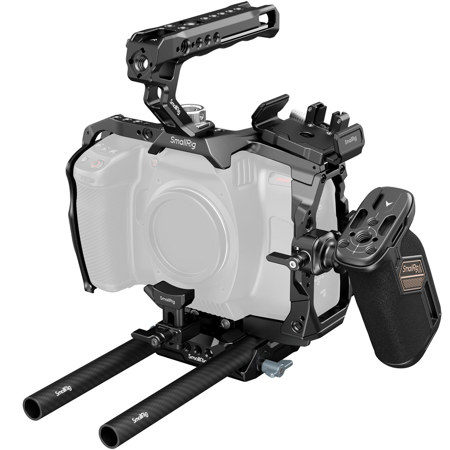

SmallRig 4575B Advanced Cage Kit for Blackmagic Design Cinema 6K

SmallRig Cage Kit for Blackmagic Design Cinema 6K (Advanced Edition) 4575B is designed to provide creators with a comfortable low-angle shooting experience, protect the camera, and offer multiple accessory expansion options. The kit includes a cage, a top handle, an HDMI & USB-C cable clamp, an SSD mount bracket, a lens mount adapter support, dual 15mm carbon fiber rods, and a baseplate.

Three-point locking system secures the camera with two 1/4"-20 screws at the base and a 1/4"-20 screw on the top, while integrated silicone pads prevent scratching. The cage provides unobstructed access to all camera interfaces, card slots, the flip screen, and the battery compartment. The lens adapter support is compatible with Sigma MC-31, Sigma MC-21, and similar lens adapters, preventing the camera's mount from damage.

The kit is also equipped with HDMI & USB-C cable clamps to protect the camera's ports and prevent signal loss. The ergonomic ARRI-type top handle provides a comfortable low-angle shooting experience for creators, making it easy to handle the camera. The universal rotating NATO side handle allows for flexible camera movements at any angle. The SSD mount bracket is compatible with Samsung T5 / T7 / T7 Shield / T9 SSDs and features a built-in cold shoe mount for quick assembly and disassembly.

The kit is equipped with dual 15mm rods and baseplate, allowing for the attachment of accessories such as a matte box (ID 3556), follow focus (ID 3918), and battery plate (ID 2991) to enhance your filmmaking or professional video shooting experience. With multiple mounting options like 1/4"-20 threaded holes, 3/8"-16 threaded holes, ARRI locating holes, cold shoe mounts, NATO rail, QD mounts, the kit accommodates accessories such as magic arms, side handles, top handles, rod clamps, baseplates, LED video lights, microphones, and more.

Designer: Gale


- Camera Cage -
SmallRig Camera Cage for Blackmagic Design Cinema Camera 6K 4785 is designed for handheld shooting with smooth camera movements. It protects the camera while providing various expansion options. Three-point locking system secures the camera with two 1/4"-20 screws at the base and a 1/4"-20 screw on the top, while integrated silicone pads prevent scratching. The cage offers unobstructed access to all camera interfaces, card slots, the flip screen, and the battery compartment. The lens adapter support is compatible with Sigma MC-31, Sigma MC-21, and similar lens adapters, preventing the camera's mount from damage.

The cage features 1/4"-20 threaded holes, 3/8"-16 threaded holes, ARRI locating holes for attaching accessories like side handles (2093, 4016), top handles (2165C), monitor mounts (2903, 2904), Manfrotto baseplates (1280, 2458), tripods (3989), and more. Additionally, the integrated 1/4"-20 and 3/8"-16 threaded holes, ARRI locating holes, and cold shoe mount allows for the attachment of accessories such as magic arms (3873), cable clamps (3271, 3289, 2960), and protective interface covers to prevent signal loss. Two 1/4"-20 threaded holes at the handgrip prevent the camera from twisting in portrait orientation. The slider on the left enables quick attachment of slider rotation handles (3847), and slider handles (4017) and facilitates the swift mounting of accessories.

The built-in cold shoe mounts accommodate microphones, LED video lights, SSD mount brackets (ID 3272, 2343), and more. It also features strap interfaces compatible with wrist straps (3848, 2456) and shoulder straps (2793). The QD interface allows seamless integration with QD quick-release shoulder straps (4118). The cage can be converted into a half case for stabilizer setups, ensuring easy leveling. Additionally, the cage features a magnetic Allen wrench at the bottom to facilitate accessory assembly and disassembly.

Features
• Dedicated full cage for Blackmagic Design Cinema 6K, convertible into a half cage for added versatility
• Three-point locking system ensures stability and prevents twisting by securing the camera with two 1/4"-20 screws at the base and a 1/4"-20 screw at the top
• Versatile built-in interfaces including 1/4"-20 threaded holes, 3/8"-16 threaded holes, ARRI locating holes, cold shoe mounts, NATO rail, QD mounts, and wrist/shoulder strap holes for diverse shooting scenarios
• Two 1/4"-20 threaded holes at the handgrip prevent twisting for stable shooting in portrait orientation
• Includes a complimentary lens mount adapter support to safeguard against mount damage

- ARRI Locating Top Handle -
SmallRig Universal ARRI Locating Handle 2165C is an all-in-one and half-handle, with a simple and ergonomically designed to offer a comfortable handheld shooting experience. ARRI-type mounts allow for quick assembly and disassembly; locating pins enables horizontal and vertical attachment while securing the camera. Featuring an all-in-one and half structure, it comes with multiple 1/4"-20 & 3/8"-16 & ARRI 3/8"-16 accessory threads and three cold shoe mounts for monitors, LED lights, or microphones, and a built-in spanner for easy access. The cold shoe mount on the front end of the handle is designed to prevent accidental disconnection. Overall, the lightweight and practical handle can provide a wide range of mounting points and an excellent shooting experience.


- HDMI & USB-C Cable Clamp -
SmallRig HDMI&USB-C Cable Clamp for BMPCC 6K PRO 3271 works only with the new cage 3270. It locks onto the left side of the cage via two thumbscrews to secure HDMI and USB-C cables and prevent signal interruptions during filming. Besides, it comes with a hex spanner to help ensure secondary fixation.

Features
• Designed to work with SmallRig Full Cage for BMPCC 6K PRO 3270
• Secures and protects HDMI and USB-C clamp
• Easy-to-grip 1/4"-20 thumb screws for quick assembly and disassembly

- Rotating Side Handle -
SmallRig Universal Rotating NATO Side Handle 3847 is designed to assist with camera movement and enhance shooting stability. Made of strong, lightweight magnesium alloy and carbon fiber, this handle can rotate 360 degrees during filming via the unlock button and fits the left or right hand with its ergonomic design.

It comes with such accessory mounting points as a cold shoe mount on the top for Monitor Mount 2905B, microphone, LED light, etc.; an ARRI 3/8"-16 locating hole for Monitor Mount 2903B; three 1/4"-20 threaded holes for Magic Arm 2070B, Magic Arm with Small Ball Head 2157, etc.; and a strap hole for Hand Strap 3848 for more stability. A magnetic spanner is included at the bottom for easy access. Also, in the box, there is a NATO rail for you to mount the handle onto cages without NATO rail on both sides.

Features
• Step-less rotation for easy camera movement
• Ergonomically designed for both hands
• Made of strong, durable, and lightweight carbon fiber and magnesium alloy
• Accessory mounting points: 1/4"-20 threaded holes, cold shoe mount, ARRI 3/8"-16 locating hole, strap hole
• Included NATO rail and the built-in spanner for easy access

- Universal LWS Baseplate -
Lightweight and compact, SmallRig Universal LWS Baseplate with Dual 15mm Rod Clamp 3357 fits mainstream DSLR and mirrorless camera cages on the market. It works with dual 15mm rods to attach such accessories as lens support, follow focus, and matte box during handheld shooting and tripod shooting. It can ensure 85mm optical height when used with BMPCC 6K Pro Cage 3270. Its specially-designed bottom enables you to replace Samsung T5 SSD without removing the baseplate. Large built-in rubber pads prevent scratching and twisting. Multiple threaded holes at the bottom allow attachment of various sizes of quick release plates for tripod shooting.

Features
• Light and compact, weighing only 150g
• Compatible with mainstream DSLR and mirrorless camera cages on the market
• Suits BMPCC 6K Pro cage to ensure 85mm optical height and allow replacing Samsung T5 SSD without removing the baseplate
• Multiple built-in threaded holes at the bottom, enable attachment of various sizes of quick release plates

- SSD Clamp -
SmallRig SSD Clamp for Cage for Blackmagic Design Cinema Camera 6K with Samsung T5 / T7 / T7 Shield / T9 3272B. It secures to the cold shoe on the top left of the cage and fixes the SSD via extendable spring-loaded clamps on both sides. It comes with a locating bead structure and a built-in 1/4"-20 threaded hole so that you can either attach it to a cold shoe or use a spare screw for mounting. Its internal all-around rubber pads can securely hold the SSD and prevent scratching. It also provides a USB-C cable clamp fixable with a thumb screw. The mount serves as a sound solution for a BMCC 6K (Full-Frame) camera using SSD.

Features
• Supports Samsung T5 / T7 / T7 Shield / T9 SSD and works with the BMCC 6K (Full-Frame) cage 4785
• Slide-in cold shoe for quick assembly and disassembly
• Comes with a USB-C cable clamp to prevent accidental disconnection during shooting
• All-round rubber pads to prevent scratching

- 15mm Carbon Fiber Rod -
It is the new version of carbon fiber rod with more smooth surface. It fits 15mm rod clamp but its surface is not shining any more because we have redesigned it based on some customers' advice.

The carbon fiber rods are much lighter than stainless steel rods, but carbon fiber rods are incredibly rigid and durable.
