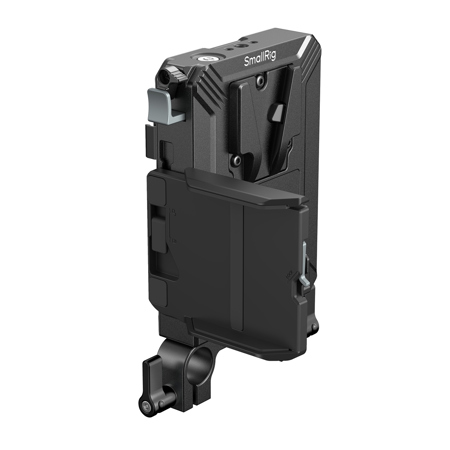

SmallRig V-Mount Battery Mount Plate Kit with Advanced Circuit for 15mm LWS Rods

SmallRig V-Mount Battery Mount Plate Kit for 15mm LWS Rods 5226 is designed to streamline V-mount battery setup for 15mm rod-based rigs. This comprehensive kit includes a V-mount battery plate, 15mm dual rod clamps, and a modular LCD screen protector. The mount plate attaches securely to 15mm LWS rods using the included rod clamps for rapid V-mount battery deployment.

The V-mount battery plate features multiple strategically positioned power outputs, including D-Tap and USB-C, enabling simultaneous power supply to multiple devices without interfering with camera operation or top handle functionality. The USB-C port supports up to 65W PD input, allowing it to function as a V-mount battery charger. The V-mount battery release button features a trigger safety lever with customizable engagement, preventing accidental disengagement for secure operation.

The modular LCD screen protector features tool-free height and width adjustment, fitting most flip-screen mirrorless cameras while protecting against impacts. Equipped with multiple 1/4"-20 threaded and locating holes, the V-mount plate allows for the attachment of accessories such as magic arms (ID 3238B / 3873) for wireless transmitters and professional setups.

Note:
• When using the LCD screen protector, the battery plate can accommodate V-mount batteries up to 80mm / 3.1" in width. Compatible SmallRig V-mount batteries: 3579B / 4871 / 4872 / 3580B / 4929 / 4930 / 4292 / 4974 / 4608 / 4984 / 3581B / 4293. In addition, we recommend using it with a compact 15mm LWS baseplate (such as 1798, 1674, 3357, 1775, 4002, etc.)
• If the V-mount battery cannot be properly installed, the trigger safety lever may be engaged. To install the battery properly, first disengage the trigger safety lever
• After use or when not in use for a long period of time, please remove the V-mount battery or press and hold the power switch button for 3 seconds to cut off the output function

Instant Mount, Instant Power
Arca-Swiss quick release plate for one-step tool-free installation

Ultimate Screen Protector
Advanced camera LCD protector for scratch and impact protection

Detachable Design
Compact storage

Adjustable Positioning
Fits various screen sizes & positions

Silicone Adhesive
Ensures a secure fit and scratch resistance

Fold-Flat Mount Solution
Upgraded pocket-ready folding plate for ultra-compact storage. Folds to phone-clamp size

• 0 Degree -Storage
• 90 Degree -Working Mode
• 180 Degree -Swift Access to Camera Screen

Stability & Smooth Adjustment
Stainless steel gears lock securely under heavy loads. Damping mechanism ensures stable angle control

Standard V-mount Plates
U-shaped design lacks stability, risking battery disconnection

User-Centric Upgrades

Retractable Design
Fits most cameras

Swift Handheld-to-Tripod Transitions
Comes with an Arca-Swiss plate

Retractable Knob
Pull out for more convenient extension

Cable Management
Integrated tie and bar prevent tangles

Customize Your Power Solutions
Modular design for seamless upgrades. Mix and match without compromising performance

Compatible with 15mm Dual Rod Systems
Extra interfaces and effortless battery swaps
