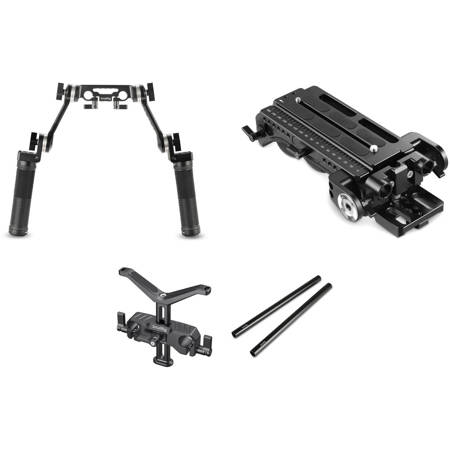

SmallRig KGW102B Professional Universal Shoulder Pad Kit for Big Sized Cameras

SmallRig Professional Universal Shoulder Pad Kit KGW102 is exclusively designed for big sized cameras. It offers an abundance of possibilities for the cameraman as per the needs during shooting, thus it is very beneficial and convenient for the cameraman.

- Shoulder Pad Pro 2837 -
SmallRig Shoulder Pad Pro 2837 is designed for SONY VCT-14 quick release baseplate, which fits the camera through Manfrotto 501 quick release plate. Users can realize a rapid switch between shoulder shooting and tripod shooting through the shoulder pad. Both sides of the shoulder pad are standard M6 ARRI rosette mount, which can be installed with the original control handle of 1810 or FX9 machines. The front and rear ends of the dual rod system have a standard diameter of 15mm and a spacing of 60mm.

Moreover, the front-end dual rod system can save 24mm for up-regulating, which can guarantee the spacing between the lens center of FX9, FS5, URSA MINI, CANON C300, and other devices to be 85mm as the standard. In order to facilitate users to adjust the equipment's center gravity and install the following focus and matte box, 2837 can be adjusted forward about 80mm through the built-in Manfrotto 501 quick release plate, and the front two tubes can be adjusted together with the quick release plate, so there is no need to remove the equipment such as follow focus and matte box.

The right side of 2837 is reserved with a 1/4 "-20 threaded hole, which can be used for installing magic arm and other products. The shoulder pad adopts the new silicone shoulder pad, which conforms to the shape of human shoulders and is soft and comfortable. In addition, the 2837 built-in flat wrench can be used on-demand.

- 15mm Black Aluminum Alloy Rod -
Includes 2pcs of 25cm long industry-standard 15mm rod. There is an inner M12 thread on each end of the rod, so that you can extend the rod with an M12 threaded rod.

15mm LWS Universal Lens Support (BSL2681)
SmallRig 15mm LWS Universal Lens Support BSL2681 is designed to remove the weight stress from the camera's lens mount when your camera is mounted on separately available 15mm LWS rods. The lens support offers 53.5mm vertical adjustment to fit most lens. The center column attaches to a Y-support which features strap slots on each side for further security. The height is adjustable via the quick release knob without using tools. The lens support is compatible with lens diameter up to 150mm.

- Shoulder Rig Handle Kit (2002F) -
SmallRig Rosette Handle Kit 2002 is designed for the shoulder system to assist camera shooting. Adapt to a 15mm rod system, rosette handle, and rosette arm can be adjusted independently, and both can rotate 360 Degree . The rosette arm has 1/4"-20 threads and an Arri locating hole, which can attach to accessories such as magic arm 2115. The ergonomic design makes the handle kit comfortable to use & easy to store.
