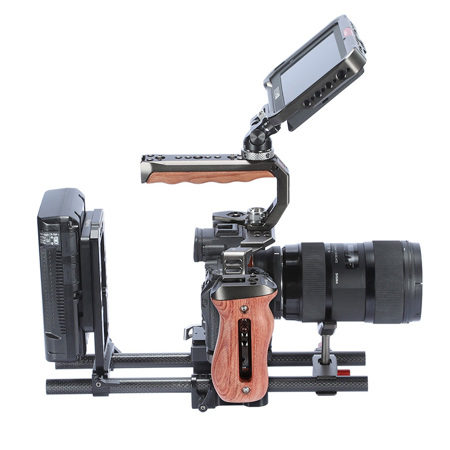

SmallRig Handheld Kit for A7 III/A7R III Cameras

Dedicated for Sony A7 lll/A7R Ill
New design form-fitting full cage kit provides accessory mounting, strong protection, comfortable wooden grip ,baseplate and monitor mount for your A7 Ill/A7R Ill camera.

- KCCS2694 SmallRig Cage and Handle Kit for Sony A7 III and A7R III -
Feature a brand-new appearance of the dark olive finish. It is designed to protect and add accessories to your Sony a7 III or a7R III camera. The cage mounts to the camera using a 1/4"-20 screw on the bottom and a second M2.5 lock on the side, with rubber pads on the base plate preventing scratches. The cage maintains access to camera controls and ports and comes with a variety of mounting options including 1/4"-20 and 3/8"-16 holes, ARRI locating holes, a cold shoe, and slots for wrist or shoulder straps. An included screwdriver is designed to tighten or detach the screws both at the bottom and side. The handle secures on the top or side of the cage using an included thumbscrew that has a matching 3/8"-16 screw and dual locating pins, for a comfortable and solid grip. In addition to its main function, the handle also offers multiple 1/4"-20 and 3/8"-16 threaded holes, ARRI accessory mounts, and built-in cold shoe mounts which is designed with an anti-removal pin.

Designer: Tracy Joy

Note:
• Despite every effort to accurately depict product colors, please understand that actual colors may vary slightly due to variations in lighting and devices you might be using.
• Installation Steps:
Please remove the camera's strap triangle loop on the left first and keep it well
Put the camera into the cage and tighten the 1/4"-20 screw on the bottom

Features
• Form-fitting camera cage with the brand-new dark olive finish.
• ARRI locating handle made of aluminum and wood.
• Multiple 1/4''-20 & 3/8''-16 mounting threads.
• ARRI locating holes and cold shoes.
• Built-in screwdriver on the cage.

- HSS2642 SmallRig Wood Side Handle with ARRI-Style Mount -
Is designed to provide a comfortable grip for increased stabilization and accessory mounts for cameramen. The handle attaches to the cage or camera rig via an ARRI 3/8"-16 screw with two locating pins. The handle can be configured for right or left Hand by detaching the metal connector. Featuring 3/8"-16, 1/4"-20 and cold shoe accessory mounts on top to add a mounting arm, light, mic, or other accessories. The screws attach to a sliding mechanism that allows you to slide the handle up and down for your preferred position. A built-in Allen wrench inside the bottom allows you to adjust the handle position and for further security. The smooth wood handle provides a solid, comfortable grip and it also works well in the situation of low temperature.

Designer: Yetta White

Note:
Please understand that the color in the actual product may vary slightly from the color in the picture due to variations in lighting and devices you might be using.

Features
• ARRI-Style Side Handle with Brand-New Dark Olive Finish.
• 1/4"-20 & 3/8"-16 & Cold Shoe Accessory Mounts.
• Can Be Configured for Right or Left Hand.
• Adjusts up & down with Sliding Connector.
• Integrated Hex Spanner for Direction Changing and Height Adjusting.

- BSE2346 SmallRig Swivel and Tilt Monitor Mount with Cold Shoe -
Is designed to hold your monitor onto the top of a camera or other mounting gears via the cold shoe adapter. The holder enables cameramen to swivel 360 Degree sideways and tilt 140 Degree so that they can hold a monitor onto any position without using tools. The robust mount is CNC-Machined aluminum and can support 5" or 7" monitor up to 1.2kg. At the top of the monitor mount features a rubber pad to protect your monitor or light from scratch. The size of the thumbscrew head is increased so that it's easy to install. Both thumbscrews feature holes for hex spanner to ensure your monitor safe.

Designer: Tracy Joy

Note:
• Maximum payload is 1.2kg.
Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.

Features
• Supports 5" and 7" monitor up to 1.2kg.
• Swivel 360 Degree and tilt 140 Degree with free-stop in any position.
• Features holes on thumbscrews for hex spanner.
• Rubber pad on the top to prevent scratch.
• CNC-Machined aluminum construction, robust & durable.

- CMS2641 SmallRig Cage with Sun Hood for SmallHD FOCUS 5" HDMI/SDI Monitors -
Is designed to provide all-around protection and accessory mounts for the monitor. The cage secures to the monitor via a 1/4"-20 screw on the top and bottom. Multiple 1/4''-20 and Arri 3/8''-16 threads are provided for accessories such as Magic Arm 2070 and 2115. The bottom features a NATO rail for NATO clamp compatible accessories to quickly release your setup, such as Monitor Mount BSE2348. Dedicated sun hood is included to provide glare protection when shooting outdoor. Optional HDMI/SDI Cable Clamp BSC2333 is sold separately to secure the cable. The right side features a 1/4"-20 threaded hole with two locating holes allows for attaching the original SmallHD Tilt Arm for angle adjusting.

Designer: Evans Pan

Note:
Please understand that the color in the actual product may vary slightly from the color in the picture due to variations in lighting and devices you might be using.

Features
• SmallHD FOCUS 5" Monitor Cage with Brand-New Dark Olive Finish.
• Anti-Twist Design with Dual Lock Points.
• 1/4"-20 & Arri 3/8"-16 Accessory Mounts.
• Integrated Bottom NATO Rail.
• Sun Hood Included.
• Compatible with the Original SmallHD Tilt Arm.

- 2092 SmallRig Universal 15mm Rail Support System Baseplate -
SmallRig Universal 15mm Rail Support System Baseplate 2092 could offer lots of additional attachment options and enables the camera to release its potential to the utmost as per the needs of the cameraman during shooting.

It locks the QR plate via a locking lever for quick release and attachment. The Arca QR plate on the top could be mounted with the camera, and it features convenient detachment and it is very easy to switch to handheld shooting. It could attach 15mm Rod 1053 for follow focus, matte box and Long Lens Support with Dual 15mm Rod Clamp 1087 based on your needs.

Its adjustable height could reach up to 24mm in maximum via a wingnut, thus it ensures 85mm rod height. The height from the QR plate to rod center ranges from 33.6mm to 57.6mm. Wingnut at the side enables enough space for adjustment manually.

It is equipped with 1/4''-20 and 3/8''-16 threaded holes at the bottom for DIY operation. Therefore, it could attach Quick Dovetail (Manfrotto) 1280/1767/1647 and then sit on Manfrotto tripod.

Features
• It is a universal adjustable baseplate compatible with a mirrorless camera and DSLR.
• It comes with a base plate and a QR plate of Arca-swiss standards, locked via a locking lever for quick release and attachment of camera.
• It could be adjusted in height via a wingnut, and thus it enables 85mm rod height. The height from the QR plate to rod center ranges from 33.6mm to 57.6mm.
• It is equipped with 1/4''-20 and 3/8''-16 threaded holes to attach QR plates and then tripod.

- 1052 2x 15mm Black Aluminum Alloy Rod(M12-25cm) 10" -
Includes 2pcs of 25cm long industry-standard 15mm rod. There is an inner M12 thread on each end of the rod, so that you can extend the rod with an M12 threaded rod.

- BSL2644 SmallRig 15mm LWS Universal Lens Support -
Is designed to remove the weight stress from the camera's lens mount when your camera is mounted on separately available 15mm LWS rods. The lens support offers 6mm horizontal and 22mm vertical adjustment to fit most lens. The 15mm LWS rod ports have a half-open design so the support can quickly mount and unmount without removing other rod-mount accessories. The center column attaches to a Y-support with a 1/4"-20 screw and the Y-support features strap slots on each side for further security.

Designer: Clara Oswald

Note:
Please understand that the color in the actual product may vary slightly from the color in the picture due to variations in lighting and devices you might be using.

Features
• Universal Lens Support with Brand-New Dark Olive Finish.
• Y-Bracket for Lens.
• 6mm Horizontal Adjustment.
• 27.2mm Vertical Adjustment.
• Half-Rod Clamp Design for Quick Release.

- 1846 SmallRig V-Lock Assembly Kit -
Is a quick release set based on the standard V-Lock. It comes with a Female V-Dock and a Male V-Lock. There are multiple mounting holes and grooves on the Female V-Dock, and you can attach this assembly directly to a SmallRig camera cage kit, SmallRig monitor frame, or SmallRig shoulder pad mount. Besides, you can mount this assembly kit to SmallRig 25mm rod clamp 1860 which is designed for DJI Ronin M/MX; with this setup, you can put your V-Mount battery on top of the Ronin to power all the accessories, which minimizes camera weight on gimbals. The two integrated protruding portions prevent it from twisting when the V-Mount battery attached. The V-Lock with three M3 holes can be used as a replacement of the original V-Lock comes with the V-Mount battery.

Designer: Esther Chen

Note:
This product is NOT compatible with PAGlink PL96T Time Battery and Patona Premium Battery for BP-190WS.

- 1547 SmallRig Battery Back -
Allows mounting of Anton Bauer QRC, Switronix, RED, Blueshape ect. It mounts to standard 15mm rods with a 15
