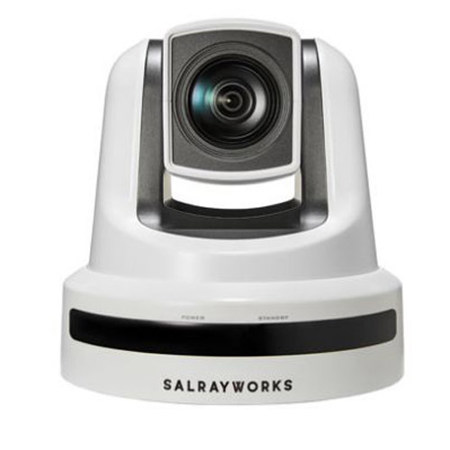

Salrayworks K-M20G Full HD NDI 1/2.8'' Exmor R CMOS Sensor 20x PTZ Camera with Genlock, White

SKU: SRWKM20GW MFR: K-M20G-W
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the K-M20G PTZ camera's 1/2.8'' Exmor R CMOS sensor.
  • Experience versatile connectivity with 3G-SDI, HDMI, DVI, and CVBS video output options.
  • Achieve precise shots with the 20x optical zoom, perfect for live events and broadcasts.
  • Control your PTZ camera remotely via RS-422/485, RS-232C, or the included IR remote.
  • Enjoy smooth pan and tilt movements for seamless tracking during dynamic presentations.
  • Utilize Genlock for synchronized video feeds, ideal for multi-camera setups and productions.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Salrayworks K-M20G Specifications

Camera
  • Module

    (20x) 1/2.8" Exmor R CMOS

  • Valid Pixels (H x V)

    1920 x 1080 (Approximately 2.1 million pixels)

  • Video output format

    1920x1080p60, 1920x1080i60, 1920x1080p30, 1280x720p60, 1280x720p30, 720x576i50(CVBS only)
    1920x1080p59.94, 1920x1080i59.94, 1280x720p59.94, 1920x1080p50, 1920x1080i50, 1920x1080p25, 1280x720p50, 1280x720p25

  • Video output

    HD/3G-SDI, HDMI, DVI, CVBS

  • Zoom Scale

    Optical zoom: 20x
    Digital zoom: 12x

  • Lens

    12x Zoom Lens [f=4.7-56.4 mm F1.6-F3.5] / 20x Zoom Lens [f=4.7-94 mm F1.6-F4.7]

  • Viewing Angle

    57.4 Degree (W), 3.2 Degree (T)

  • Minimum Luminance

    0.2lx (Day)
    0.1lx (Night)
    0.005lx (DSS on)

  • Interface

    3G-SDI, HDMI

  • Day&Night

    AGC, TDN(ICR)

  • Focus

    Semiauto/ Auto/ Manual

  • Image Flip

    On/ Off

  • Zoom Speed

    0-7

  • Focus Near Limit

    30cm/ 1m/ 1.5m/ 2m/ 3m/ 5m/ 10m

  • AF Sensitivity

    Normal/ Low

  • Defog Mode

    Off/ Low/ Mid/ High

  • High Sensitivity

    Off/ On

  • Noise Reduction

    Off/ 1-5

  • Aperture

    10, 0-15

  • White Balance

    Auto/ Indoor/ Outdoor/ One Push/ ATW/ Manual/ Outdoor Auto/ Sodium Auto/ Sodium/ Sodium Out Auto

  • Program AE

    Full Auto/ Bright/ Shutter Pri/ Iris Pri/ Manual

  • WDR

    Off/ On/ VE

  • BLC

    On/ Off

Pan/Tilt

Jump to...
  • Moving Angle

    Pan: -172 Degree - 172 Degree (Non-Endless)
    Tilt: total 220 Degree (-20 Degree - 0 Degree - 180 Degree - -160 Degree )

  • Moving Speed

    Manual: 0.002 Degree /sec -180 Degree /sec (Interlocked with the Zoom Scale)
    Preset: 300 Degree /sec, Swing: 1 Degree /sec - 180 Degree /sec

  • Preset setup

    256 Presets [VISCA], 255 Presets (Label setup, each display setup) [PELCO]

  • Swing setup

    8 swings

  • Pattern setup

    8 Patterns

  • Group setup

    8 Groups (20 motions/Group)

  • Other functions

    Smart-Flip, Home Position Set, Auto Parking, Power Up Action etc.

General

Jump to...
  • Color

    White

  • Cam ID

    PELCO: 1-14
    VISCA: 1-14 setting

  • Communication

    RS-422/485, RS-232C, IR Remote

  • Protocol

    PELCO-D/P, VISCA

  • OSD

    Menu, Position, etc.

  • Power

    DC 12V +/- 10% (Max 1A)

  • Operating temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Dimensions (W x D x H)

    6.54 x 7.20 x 6.89" (166 x 183 x 175mm)

  • Weight

    4.30 lbs (1.95kg) Approximately

  • UPC Code

    706249186108

About Salrayworks K-M20G

What sets the K-M20G Full HD NDI PTZ Camera apart is its exceptional image quality and versatility, making it an ideal choice for professional broadcasting, live streaming, and conference settings. Equipped with a 1/2.8'' Exmor R CMOS Sensor, this camera captures smooth, detailed Full HD (1920 x 1080 60p) images with minimal noise, even in challenging low-light conditions. Its high frame rate of 60fps ensures the fluid reproduction of moving subjects, delivering a professional-grade video experience.

The camera's powerful 20x optical zoom, augmented by a 12x digital zoom, allows for frame-filling close-ups that retain clarity and sharpness, thanks to its responsive autofocus system. This feature is particularly useful for capturing every nuance during presentations or ensuring that each conference participant is seen in clear detail.

For output versatility, the K-M20G offers multi-format video outputs, including SD/HD/3G-SDI and HDMI, enabling simultaneous 1080/60p baseband video streaming through multiple channels. This flexibility ensures the camera can integrate seamlessly into various production setups.

Connectivity is a breeze with the K-M20G, supporting a range of control protocols including VISCA, PELCO-D/P, and RS-232C/422/485. This allows for easy pairing with a wide array of peripheral devices and ensures that the camera can be controlled with precision using standard VISCA or PELCO-D/P protocols.

Enhanced PTZ operation is a standout feature, with a pan range of +/-172 degrees and a tilt range of 220 degrees, driven by a powerful direct drive motor. This ensures quiet and rapid positioning, with PTZ synchronization for coordinated camera movements. The pan/tilt speed can be adjusted to 'Slow' for smooth, professional transitions, and a sequence of camera positions can be stored and recalled as a preset 'trace' for efficient operation.

The K-M20G also boasts a wide 57.4-degree viewing angle, ensuring comprehensive coverage of meeting participants in a boardroom setting. With 256 programmable presets, users can store and instantly recall camera positions using the KM/KS Model PTZ Controller C series, enhancing the camera's ease of use.

Designed with flexibility in mind, the camera includes an image flip function for operational versatility, allowing for both desktop and ceiling mounting without compromising image orientation. Whether used for capturing high-stakes meetings or broadcasting live events, the K-M20G Full HD NDI PTZ Camera with Genlock is engineered to deliver superior video quality and adaptability.

Salrayworks K-M20G Features

  • The 20x optical zoom range is complemented by 12x digital zoom for frame-filling close-ups with every detail seen clearly
  • Can simultaneously output 1080/60p baseband video through 3G-SDI, HDMI stream
  • Support for RS-232C,422,485 communication allows easy connection with a wide range of peripheral products. The camera can also be controlled via VISCA protocols over a standard VISCA, PELCO-D/P
  • The powerful direct drive motor assures quiet, rapid movement to the target position over a wide pan/tilt angle rang
  • Store and instantly recall up to 256 camera positions via KM/KS Model PTZ Controller C series from specific controller

Key Features

  • Capture stunning Full HD video with the K-M20G PTZ camera's 1/2.8'' Exmor R CMOS sensor.
  • Experience versatile connectivity with 3G-SDI, HDMI, DVI, and CVBS video output options.
  • Achieve precise shots with the 20x optical zoom, perfect for live events and broadcasts.
  • Control your PTZ camera remotely via RS-422/485, RS-232C, or the included IR remote.
  • Enjoy smooth pan and tilt movements for seamless tracking during dynamic presentations.
  • Utilize Genlock for synchronized video feeds, ideal for multi-camera setups and productions.

What's in the box:

  • K-M20G 1080p 1/2.8'' Exmor R CMOS Sensor PTZ Camera (White)
  • AC Adapter
  • IR Remote
  • Salrayworks 1 Year Limited Warranty
