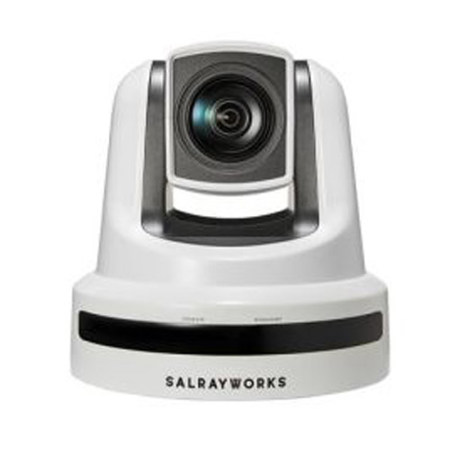

Salrayworks K-M20 Full HD NDI 1/2.8'' Exmor R CMOS Sensor 20x PTZ Camera, White

SKU: SRWKM20W MFR: K-M20-W
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the K-M20 PTZ camera's exceptional 1/2.8" Exmor R CMOS sensor.
  • Experience versatile connectivity with 3G-SDI, HDMI, DVI, and CVBS video outputs on this PTZ camera.
  • Achieve incredible detail with the 20x optical zoom, perfect for live events and broadcast applications.
  • Enjoy smooth and precise pan/tilt control, ideal for capturing dynamic scenes in any professional setting.
  • Benefit from excellent low-light performance, ensuring clear video even in challenging lighting conditions.
  • Easily integrate this white PTZ camera into your existing setup with multiple control protocol options.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Salrayworks K-M20 Specifications

Camera
  • Module

    (20x) 1/2.8" Exmor R CMOS

  • Valid Pixels (H x V)

    1920 x 1080 (Approximately 2.1 million pixels)

  • Video output format

    1920x1080p60, 1920x1080i60, 1920x1080p30, 1280x720p60, 1280x720p30, 720x576i50(CVBS only)
    1920x1080p59.94, 1920x1080i59.94, 1280x720p59.94, 1920x1080p50, 1920x1080i50, 1920x1080p25, 1280x720p50, 1280x720p25

  • Video output

    HD/3G-SDI, HDMI, DVI, CVBS

  • Zoom Scale

    Optical zoom: 20x
    Digital zoom: 12x

  • Lens

    12x Zoom Lens [f=4.7-56.4 mm F1.6-F3.5] / 20x Zoom Lens [f=4.7-94 mm F1.6-F4.7]

  • Viewing Angle

    57.4 Degree (W), 3.2 Degree (T)

  • Minimum Luminance

    0.2lx (Day)
    0.1lx (Night)
    0.005lx (DSS on)

  • Interface

    3G-SDI, HDMI, CVBS

  • Day&Night

    AGC, TDN(ICR)

  • Focus

    Semiauto/ Auto/ Manual

  • Image Flip

    On/ Off

  • Zoom Speed

    0-7

  • Focus Near Limit

    30cm/ 1m/ 1.5m/ 2m/ 3m/ 5m/ 10m

  • AF Sensitivity

    Normal/ Low

  • Defog Mode

    Off/ Low/ Mid/ High

  • High Sensitivity

    Off/ On

  • Noise Reduction

    Off/ 1-5

  • Aperture

    10, 0-15

  • White Balance

    Auto/ Indoor/ Outdoor/ One Push/ ATW/ Manual/ Outdoor Auto/ Sodium Auto/ Sodium/ Sodium Out Auto

  • Program AE

    Full Auto/ Bright/ Shutter Pri/ Iris Pri/ Manual

  • WDR

    Off/ On/ VE

  • BLC

    On/ Off

Pan/Tilt

Jump to...
  • Moving Angle

    Pan: -172 Degree - 172 Degree (Non-Endless)
    Tilt: total 220 Degree (-20 Degree - 0 Degree - 180 Degree - -160 Degree )

  • Moving Speed

    Manual: 0.002 Degree /sec -180 Degree /sec (Interlocked with the Zoom Scale)
    Preset: 300 Degree /sec, Swing: 1 Degree /sec - 180 Degree /sec

  • Preset setup

    256 Presets [VISCA], 255 Presets (Label setup, each display setup) [PELCO]

  • Swing setup

    8 swings

  • Pattern setup

    8 Patterns

  • Group setup

    8 Groups (20 motions/Group)

  • Other functions

    Smart-Flip, Home Position Set, Auto Parking, Power Up Action etc.

General

Jump to...
  • Color

    White

  • Cam ID

    PELCO: 1-14
    VISCA: 1-14 setting

  • Communication

    RS-422/485, RS-232C, IR Remote

  • Protocol

    PELCO-D/P, VISCA

  • OSD

    Menu, Position, etc.

  • Power

    DC 12V +/- 10% (Max 1A)

  • Operating temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Dimensions (W x D x H)

    6.54 x 7.20 x 6.89" (166 x 183 x 175mm)

  • Weight

    4.30 lbs (1.95kg) Approximately

  • UPC Code

    706249186085

About Salrayworks K-M20

Discover the exceptional capabilities of the K-M20 Full HD NDI 1/2.8'' Exmor R CMOS Sensor 20x PTZ Camera in white. This high-performance camera delivers Full HD image quality at a 60fps frame rate, ensuring smooth, detailed visuals at a resolution of 1920 x 1080/60p. Whether you're capturing a presenter or a conference participant, the 1/3-type CMOS image sensor provides crisp, low-noise images, even in challenging low-light conditions where other cameras may falter.

Experience the power of a 20x optical zoom, further enhanced by a 12x digital zoom. This feature allows for frame-filling close-ups, revealing every detail with clarity. The camera's responsive autofocus maintains sharp, clear images, even at high zoom settings, ensuring no detail is lost.

The K-M20 PTZ Camera stands out with its multi-format output video capabilities, including SD/HD/3G-SDI and HDMI, CVBS. The KM/KS Model series can simultaneously output 1080/60p baseband video through 3G-SDI, offering a seamless HDMI stream.

Enjoy versatile connectivity options with the K-M20. It supports VISCA, PELCO-D/P / RS-232C,422,485 communication, allowing easy connection with a wide range of peripheral products. The camera can also be controlled via standard VISCA protocols over VISCA, PELCO-D/P.

Experience enhanced PTZ operation with a +/-172 Degree / 220 Degree range. The powerful direct drive motor ensures quiet, rapid movement to the target position over a wide pan/tilt angle range. PTZ synchronization guarantees smoothly coordinated camera movements. You can set the Pan/Tilt speed to 'Slow' for smooth, professional-looking transitions and store a sequence of camera positions to memory, recalling them as a preset 'trace'.

The K-M20 PTZ Camera offers a wide 57.4-degree viewing angle, ensuring every meeting participant in a boardroom is visible with a broad 65-degree horizontal viewing angle. You can store and instantly recall up to 256 camera positions via the KM/KS Model PTZ Controller C series from a specific controller.

Whether you need it for desktop or ceiling mounting, the K-M20 PTZ Camera is suitable for both. Its image flip feature provides extra operating flexibility, allowing the camera to be placed on a boardroom table-top or ceiling-mounted while maintaining the correct image orientation. Experience the superior performance of the K-M20 Full HD NDI 1/2.8'' Exmor R CMOS Sensor 20x PTZ Camera today.

Salrayworks K-M20 Features

  • The 20x optical zoom range is complemented by 12x digital zoom for frame-filling close-ups with every detail seen clearly
  • Can simultaneously output 1080/60p baseband video through 3G-SDI, HDMI, CVBS stream
  • Support for RS-232C,422,485 communication allows easy connection with a wide range of peripheral products. The camera can also be controlled via VISCA protocols over a standard VISCA, PELCO-D/P
  • The powerful direct drive motor assures quiet, rapid movement to the target position over a wide pan/tilt angle rang
  • Store and instantly recall up to 256 camera positions via KM/KS Model PTZ Controller C series from specific controller

Key Features

  • Capture stunning Full HD video with the K-M20 PTZ camera's exceptional 1/2.8" Exmor R CMOS sensor.
  • Experience versatile connectivity with 3G-SDI, HDMI, DVI, and CVBS video outputs on this PTZ camera.
  • Achieve incredible detail with the 20x optical zoom, perfect for live events and broadcast applications.
  • Enjoy smooth and precise pan/tilt control, ideal for capturing dynamic scenes in any professional setting.
  • Benefit from excellent low-light performance, ensuring clear video even in challenging lighting conditions.
  • Easily integrate this white PTZ camera into your existing setup with multiple control protocol options.

What's in the box:

  • K-M20 1080p 1/2.8'' Exmor R CMOS Sensor PTZ Camera (White)
  • AC Adapter
  • IR Remote
  • Salrayworks 1 Year Limited Warranty
