(30x) 1/2.8" Exmor R CMOS
1920 x 1080 (Approximately 2.1 million pixels)
1920x1080p60, 1920x1080i60, 1920x1080p30, 1280x720p60, 1280x720p30, 720x576i50(CVBS only)
1920x1080p59.94, 1920x1080i59.94, 1280x720p59.94, 1920x1080p50, 1920x1080i50, 1920x1080p25, 1280x720p50, 1280x720p25
HD/3G-SDI, HDMI, DVI, CVBS
Optical zoom: 30x
Digital zoom: 12x
12x Zoom Lens [f=4.7-56.4 mm F1.6-F3.5] / 30x Zoom Lens
57.4 Degree (W), 3.2 Degree (T)
0.2lx (Day)
0.1lx (Night)
0.005lx (DSS on)
3G-SDI, HDMI, CVBS
AGC, TDN(ICR)
Semiauto/ Auto/ Manual
On/ Off
0-7
30cm/ 1m/ 1.5m/ 2m/ 3m/ 5m/ 10m
Normal/ Low
Off/ Low/ Mid/ High
Off/ On
Off/ 1-5
10, 0-15
Auto/ Indoor/ Outdoor/ One Push/ ATW/ Manual/ Outdoor Auto/ Sodium Auto/ Sodium/ Sodium Out Auto
Full Auto/ Bright/ Shutter Pri/ Iris Pri/ Manual
Off/ On/ VE
On/ Off
Pan: -172 Degree - 172 Degree (Non-Endless)
Tilt: total 220 Degree (-20 Degree - 0 Degree - 180 Degree - -160 Degree )
Manual: 0.002 Degree /sec -180 Degree /sec (Interlocked with the Zoom Scale)
Preset: 300 Degree /sec, Swing: 1 Degree /sec - 180 Degree /sec
256 Presets [VISCA], 255 Presets (Label setup, each display setup) [PELCO]
8 swings
8 Patterns
8 Groups (20 motions/Group)
Smart-Flip, Home Position Set, Auto Parking, Power Up Action etc.
White
PELCO: 1-14
VISCA: 1-14 setting
RS-422/485, RS-232C, IR Remote
PELCO-D/P, VISCA
Menu, Position, etc.
DC 12V +/- 10% (Max 1A)
32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)
6.54 x 7.20 x 6.89" (166 x 183 x 175mm)
4.30 lbs (1.95kg) Approximately
706249186122

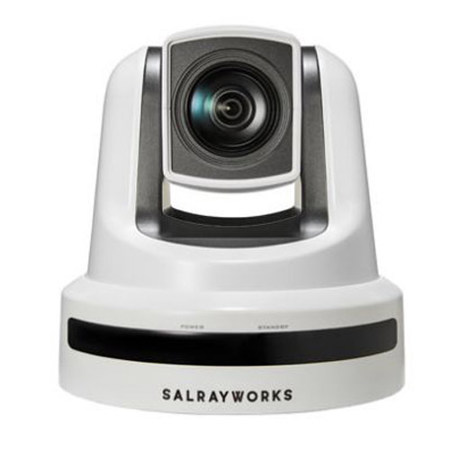

Full HD image quality with 60fps frame rate 1920 x 1080/60p
See every presenter or conference participant more clearly. The 1/3-type CMOS image sensor captures smooth, crisply detailed, Full HD (1920 x 1080 60p) images with extremely low noise - even in low light conditions where other cameras struggle. High frame rate (60fps) operation ensures smoother, more fluid reproduction of moving subjects.
Powerful 30x optical zoom
The 30x optical zoom range is complemented by 12x digital zoom for frame-filling close-ups with every detail seen clearly. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.
Multi-format output video SD/HD/3G-SDI, HDMI, CVBS
The KM/KS Model series can simultaneously output 1080/60p baseband video through 3G-SDI, HDMI stream.
Versatile connectivity options
VISCA, PELCO-D/P / RS-232C,422,485 and Support for RS-232C,422,485 communication allows easy connection with a wide range of peripheral products. The camera can also be controlled via VISCA protocols over a standard VISCA, PELCO-D/P.
Enhanced PTZ operation +/-172 Degree / 220 Degree
The powerful direct drive motor assures quiet, rapid movement to the target position over a wide pan/tilt angle range. PTZ synchronization ensures smoothly co-ordinated camera movements, while Pan/Tilt speed can be set to 'Slow' for smooth, professional looking transitions. A sequence of camera positions can be stored to memory and recalled as a preset 'trace'.
Wide 57.4-degree viewing angle
See every meeting participant in a boardroom with a wide 65-degree horizontal viewing angle.
256 programmable presets
Store and instantly recall up to 256 camera positions via KM/KS Model PTZ Controller C series from specific controller.
Suitable for desktop or ceiling mounting
Image flip gives extra operating flexibility, allowing the camera to be sited on a boardroom table-top or ceiling mounted while maintaining proper image orientation.
