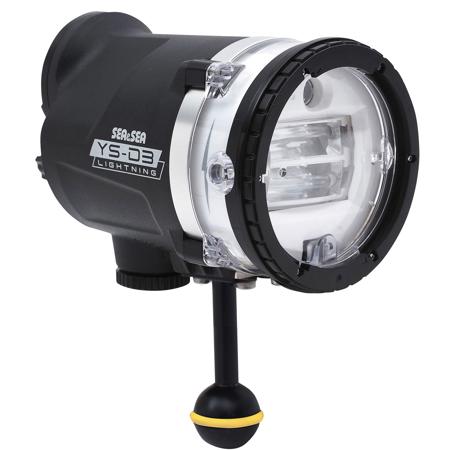

Sea & Sea YS-D3 Lightning Underwater Strobe

High Performance Strobe
Newly designed circuitry and light-emitting unit produces powerful guide number of 33. In addition, a high precision aspherical optical troidal lens has been fitted over the two flash tubes to disperse an even light from the center to the edge. The strobe s beam angle will increase to 110 Degree by attaching the standard accessories Diffuser. When the optional Dome diffuser is attached, beam angle will increase to as wide as 150(TBD).

In order to avoid misunderstanding, the YS-D3 guide number (GN) and the beam angle are based on measurements taken on land (not underwater). Some competitors will often state a GN measured on land and the beam angle in water, for example a GN 33 and beam angle of 110 degrees. However, this GN 33 value is based on a beam angle of 60-70 degrees. The beam angle may be expanded in water by a dome effect, however the GN in water is significantly lower than the value measured on land.

Note
A land-based strobe that uses the same four AA batteries as the YS-D3 may provide a notation that the GN is 60, but these measurements are taken under the condition that the focal length is equivalent to 200 mm (= beam angle 12 Degree ). When the beam angle becomes narrower, the brightness of the illuminated area increases due to the light-collecting effect.

Superior consecutive firing capability to capture those critical moments.
The YS-D3 utilizes larger capacity condensers compared with those used on competing strobes. In addition, the D3 is also equipped with a newly designed charging circuit. As a result, the YS-D3 will fire at GN16 continuously without any interval time. Even when the strobe is fired at GN22, the strobe will fire again within a mere 0.8 seconds.

When the YS-D3 is fired at Guide Number over 22, a two-stage ready-to-fire signals will be issued. For instance, after the strobe fires at full power of GN33, the strobe will inform you both visually and audibly when the condenser is charged to fire at GN22. Then, when the condenser is charged enough to fire at GN33, another different signal will be issued. This design allows you to release more shutters in scenes where you want to shoot as many pictures as possible, maximizing shooting intervals between scenes.

Target light with increased power
Incorporating a uniquely designed aluminum heat diffuser, the target light is now powerful enough to be used as a dive light.(About 4 times brighter than YS-D2).

Excellent visibility
Backlight panel that is effective when shooting in dark environments The indicator color on the back of the YS-D3 changes each time the position of the mode switch is changed. Blue (in DS-TTLII mode), light blue (in slave TTL mode), orange (in manual mode with pre-flash), and green (in manual mode without pre-flash) The positioning of the operation system is obvious during night diving.

Note
The color in DS-TTLII mode has been changed from the YS-D2 to match the color with the optical converter.

Connection method with arm that can be selected according to preference
YS-D3 comes with a straight type ball base.
Optional YS base and new Diagonal ball base can be installed depending on the application.

YS base (common to YS-D1 / D2 / D3)
Traditional YS base. Easy vertical swing.

Diagonal ball base (only for YS-D3)
A ball base inclined at 35 Degree compared to the straight type. This makes it easier to lower the strobe backwards, making it suitable for shooting when using a dome port. Also, when a Synchro Cord N is installed, interference between the cord and the ball clamp is minimized.
