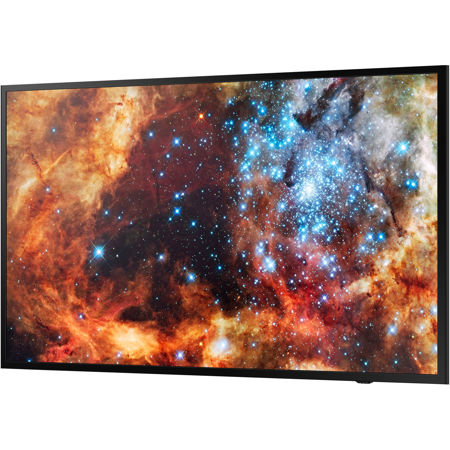

Samsung DB43J 43" Class 16:9 Full HD Commercial LED TV, Cortex A72 1.7GHz, 2.5GB LPDDR4, 8GB Storage, Tizen 3.0 OS, Built-In Speakers

SKU: SSDB43J

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samsung DB43J Specifications

Panel
  • Diagonal Size

    43" (109.2cm)

  • Type

    60Hz D-LED BLU

  • Resolution

    1920x1080 (Full HD)

  • Pixel Pitch (H x V)

    0.163 x 0.490mm

  • Active Display Area (H x V)

    37.04 x 20.83" (940.89 x 529.25mm)

  • Brightness

    300 nit

  • Contrast Ratio

    3000:1

  • Viewing Angle(H/V)

    178:178

  • Response Time(G-to-G)

    8ms

  • Display Colors

    16.7 M

  • Color Gamut

    72%

  • Operation Hour

    16/7

  • Haze

    2%

Display

Jump to...
  • Dynamic C/R

    MEGA

  • Aspect Ratio

    16:09

  • Frequency

    H-Scanning: 30 - 81kHZ
    V-Scanning: 48 - 75HZ

  • Pixel Frequency

    Maximum: 148.5MHz

  • Speaker Type

    Built in Speaker (10W + 10W)

Connectivity

Jump to...
  • Input

    Video: HDMI 1.4 (2), DVI-D
    HDCP: HDCP 2.2
    Audio: Stereo Mini Jack, DVI/HDMI/Audio(Common)
    USB: USB 2.0 x 1

  • Output

    Audio: Stereo Mini Jack
    External Control: RS232C (in/out) thru stereo jack, RJ45
    Tuner: Yes (only for NA)

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max [W/h]: 99
    Typical [W/h]: (W/W)67, (US)38, (KR)67
    BTU (Max): 337.6
    Sleep mode: less than 0.5W
    Off mode: 0

Operation

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Humidity

    10.0 % - 80.0 %

Internal Player

Jump to...
  • Processor

    Cortex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

  • Clock Speed

    1.7GHz Quad-Core CPU

  • Main Memory Interface

    2.5GB LPDDR4 1400MHz 64bit

  • Graphics

    2D & 3D Graphic Accelerator Data Format: 32bpp
    Graphic resolution: 1920x1080
    Output resolution: 1920x1080

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 3.0 (VDLinux)

Certification

Jump to...
  • Safety

    cUL - UL : cUL60950-1

  • EMC

    FCC Part 15, Subpart B Class A

Mechanical

Jump to...
  • VESA Mount

    7.87 x 7.87" (200 x 200mm)

  • Bezel Width

    Top: 0.68" (17.3mm)
    Bottom: 0.7" (18.3mm)
    Side: 0.83" (21.3mm)

  • Dimension

    38.79 x 22.62 x 2.88" (985.5 x 574.8 x 73.4mm)

  • Weight

    17.41 lbs (7.9kg)

  • UPC Code

    8806088994307

About Samsung DB43J

Sleek, professional signage with essential functionalities you need to deliver quality content

Features:
Expand Engagement Potential
The DBJ series elevates audience communication minus the hassle and financial burden. High-quality graphic presentation, 16/7 performance and an easy-to-use content management solution make for a powerful and efficient tool to deliver captivating messages.

Leverage All-in-One Capability
The embedded MagicInfo Player S5 simplifies the content deployment process by providing a convenient solution for seamless content scheduling and eliminating the need for a separate media player.

Enjoy Operational Flexibility
With the TIZEN 3.0 operating system, users receive a host of business-critical capabilities, ranging from advanced graphic presentation, easy open platform application development to remote management.

Powerful Performance
• Graphic performance with Quad core CPU
• UHD Content play back
• HTML5 Compatibility

Easy Development
• Tizen Studio 1.0
• Node.JS HTTP web Server

Business Expandability
• Remote Management
• Signage Device Management
• Enhanced Security

Protect Valuable Assets
The powerful Knox security platform provides the most rigorous defense possible. A rigid, three-layer architecture offers airtight protection at the application, platform and system layers, restricting access to content and hardware.

Extend Beyond Display
Eliminate the need to have a PC nearby to manage content. All you need is a keyboard and mouse to access and remotely control your off-site PC from the display through a secure connection.

Key Features
• Light Signage with Built-in MagicInfo S5, SSSP 5.0
• H/W: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded
• S/W: Magic Clone(to USB), Auto Source Switching & Recovery, Image Rotation, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Player S5, Firmware Update by Network

Samsung DB43J Features

  • Professional-grade, cost-effective display solution that supports 16/7 operation and 300-nit brightness
  • Enhanced graphic performance and content security within a powerful Tizen 3.0 OS
  • Simplified content management with built-in Wifi and an easy-to-use mobile application

Key Features

  • Enhanced graphic performance and content security within a powerful Tizen 3.0 OS
  • Simplified content management with built-in Wifi and an easy-to-use mobile application

What's in the box:

  • DB43J 43 " Class 16:9 Full HD Commercial LED TV
  • Remote Controller with Batteries
  • RS232C Adapter
  • Power Cord
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
