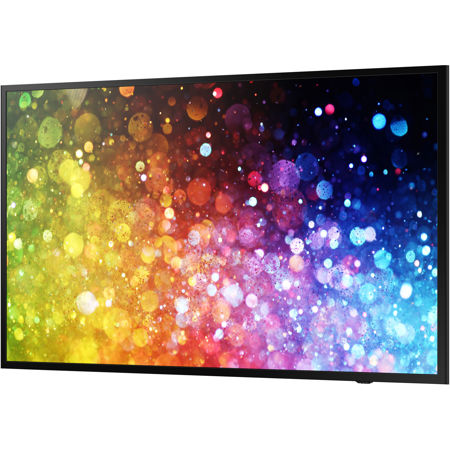

Samsung DC49J 49" Class 16:9 Full HD Commercial LED TV, MIPS 24K 650MHz, 512MB, 179MB Storage, 300nit, Built-In Speakers

SKU: SSDC49J

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Curt H : Recommended

Reviews about this item

Review Summary

Samsung DC49J Specifications

Panel
  • Diagonal Size

    49" (124.4cm)

  • Type

    60Hz D-LED BLU

  • Resolution

    1920x1080 (Full HD)

  • Pixel Pitch (H x V)

    0.186 x 0.559mm

  • Active Display Area (H x V)

    42.24 x 23.77" (1073.7 x 604mm)

  • Brightness

    300 nit

  • Contrast Ratio

    3000:1

  • Viewing Angle(H/V)

    178:178

  • Response Time(G-to-G)

    8ms

  • Display Colors

    16.7 M

  • Color Gamut

    72%

  • Operation Hour

    16/7

  • Haze

    2%

Display

Jump to...
  • Dynamic C/R

    MEGA

  • Aspect Ratio

    16:09

  • Frequency

    H-Scanning: 30 - 81kHZ
    V-Scanning: 48 - 75HZ

  • Pixel Frequency

    Maximum: 148.5MHz

  • Speaker Type

    Built in Speaker (10W + 10W)

Connectivity

Jump to...
  • Input

    RGB: DVI-I
    Video: HDMI 1.4 (2), Component(CVBS Common)
    HDCP: HDCP 1.4
    Audio: Stereo Mini Jack, RGB/DVI/HDMI/CVBS/Component
    USB: USB 2.0 x 1

  • Output

    Audio: Stereo Mini Jack
    External Control: RS232C(in/out) thru stereo jack, RJ45
    Tuner: Yes(only for NA/KR)

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max [W/h]: 121
    Typical [W/h]: (W/W)64, (US)42, 76(KR)
    BTU (Max): 412.6
    Sleep mode: less than 0.5W
    Off mode: 0

Operation

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Humidity

    10.0 % - 80.0 %

  • Processor

    MIPS 24K

  • On-Chip Cache Memory

    L1: 16KB/16KB L2: 128KB

  • Clock Speed

    650MHz

  • Main Memory Interface

    512MB

  • Storage (FDM)

    179MB

  • Operating System

    Samsung Proprietary OS (VDLinux)

Certification

Jump to...
  • Safety

    cUL - UL : cUL60950-1

  • EMC

    FCC Part 15, Subpart B Class A

Mechanical

Jump to...
  • VESA Mount

    7.87 x 7.87" (200 x 200mm)

  • Bezel Width

    Top: 0.68" (17.4mm)
    Bottom: 0.7" (18.5mm)
    Side: 0.84" (21.5mm)

  • Dimension

    44.04 x 25.59 x 2.92" (1118.8 x 650.0 x 74.2mm)

  • Weight

    22.48 lbs (10.2kg)

  • UPC Code

    8806088997582

About Samsung DC49J

A reliable, affordable display that supports 16-hour-per-day functionality

Features:
Amplify Business Messaging
The DCJ series combines FHD resolution, 300nit brightness, and 16/7 reliability to boost engagement and relay timely information with superior content presentation.

Load and Share with Ease
The embedded MagicInfo Lite Player allows users to conveniently load and play a wide range of content types. Simply plug in a USB device to the built-in port or access the internal memory to display the desired content on the screen.

Simplify Content Scheduling
Utilize the MagicINFO Lite solution to remotely manage content and monitor the DCJ series over a network through the MagicINFO Server. Conveniently access device information, content playback schedules and more without being in front of the displays.

Diversify Connectivity Preferences
With a versatile interface including USB, DVI, HDMI, RS-232C and RJ45, easily connect and use a wide array of devices with the display.

Key Features:
• Light LFD with Built-in MagicInfo Lite
• H/W: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2)
• S/W: Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network

Samsung DC49J Features

  • Affordable digital signage that supports 16/7 operation and 300-nit brightness
  • Easy and simple content management with embedded MagicInfo Lite

Key Features

  • Affordable digital signage that supports 16/7 operation and 300-nit brightness
  • Easy and simple content management with embedded MagicInfo Lite

What's in the box:

  • DC49J 49" Class 16:9 Full HD Commercial LED TV
  • Remote Control with Batteries
  • RS-232C Adapter
  • Power Cord
  • ANT Shield Box (Only for KR)
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
